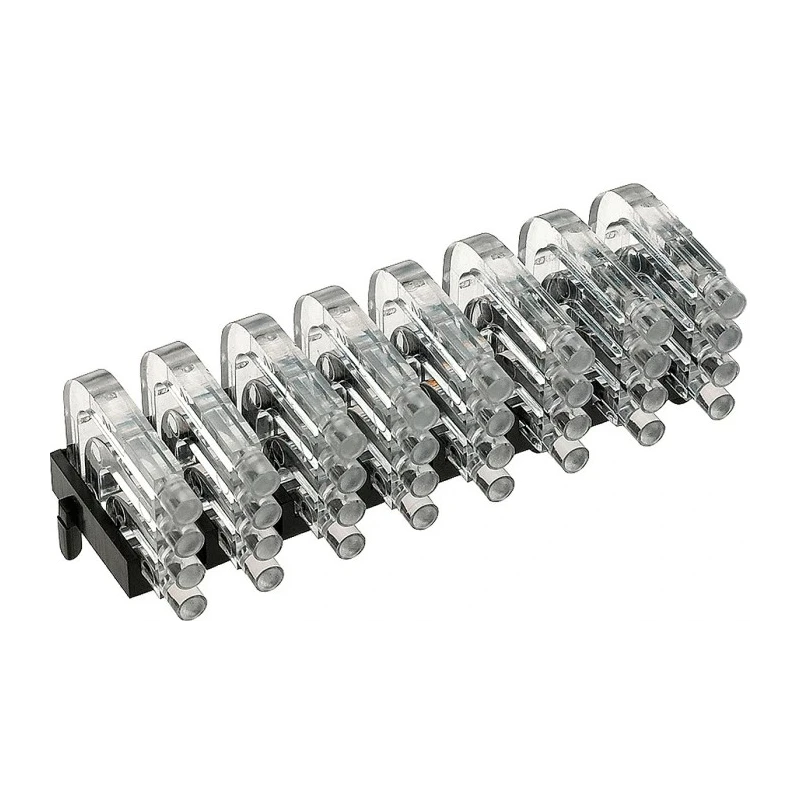

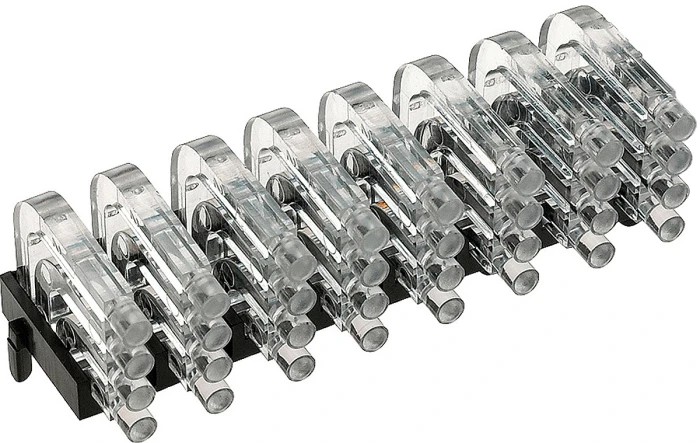

Mentor GmbH Press-In 32-Way Right Angle Rigid LED Light Pipe Clear 1296.1084

Mentor GmbH 1296.1084 Press-In 32-Way Right Angle Rigid LED Light Pipe Clear is specifically engineered for transmitting light from PCB-mounted LEDs to user interfaces with minimal luminance loss.

The product features a rigid, press-in mount design making it easy to install securely onto circuit boards. It has 32 ways arranged in a right angle configuration allowing for versatile mounting options where space and orientation are considerations.

The clear dome-shaped light pipe heads have a length of 15.7 mm and an outside diameter of 1.95 mm, arranged in 4 rows by 8 columns for a total of 40 light pipes. This arrangement facilitates efficient illumination across multiple indicators or display points.

Built to meet UL94 flame retardancy standards, the light pipes provide enhanced safety in electronic and lighting applications. The included light diffusing screen ensures there is no radiation leakage when using different LED colors, preserving clarity and contrast on the front panel display.

These horizontal light guides are specifically developed for SMD LED use, fitting snugly on push-fit lugs adjacent to the LED for optimal light injection. They operate reliably in ambient temperatures between -40°C and +85°C, suitable for a variety of industrial, laboratory, and commercial electronics environments.

Manufactured in Germany, this product meets stringent quality and reliability requirements demanded by modern electronics industries. Rigid press-in mount design ensures secure and reliable installation. Features 32 ways in a right angle orientation for versatile applications.

Clear dome-shaped light pipe provides optimal light diffusion and clarity. Constructed to UL94 standards for fire safety compliance. Measures 15.7 mm length with an outside diameter of 1.95 mm. Configured in 4 rows by 8 columns totaling 40 light pipes.

Designed to operate in ambient temperatures ranging from -40°C to +85°C. Manufactured in Germany, ensuring high-quality production standards. Compatible with surface mount (SMD) LEDs for effective light transmission. Utilizes a light diffusing screen to prevent unwanted radiation and light bleed.

This product is ideal for industrial electronic display applications, control panels, instrumentation, and other environments where precise and clear LED indication is critical. Explore the range of Mentor GmbH LED lighting components and light pipes at EnvMart for reliable and high-performance solutions in electronics manufacturing and assembly.
