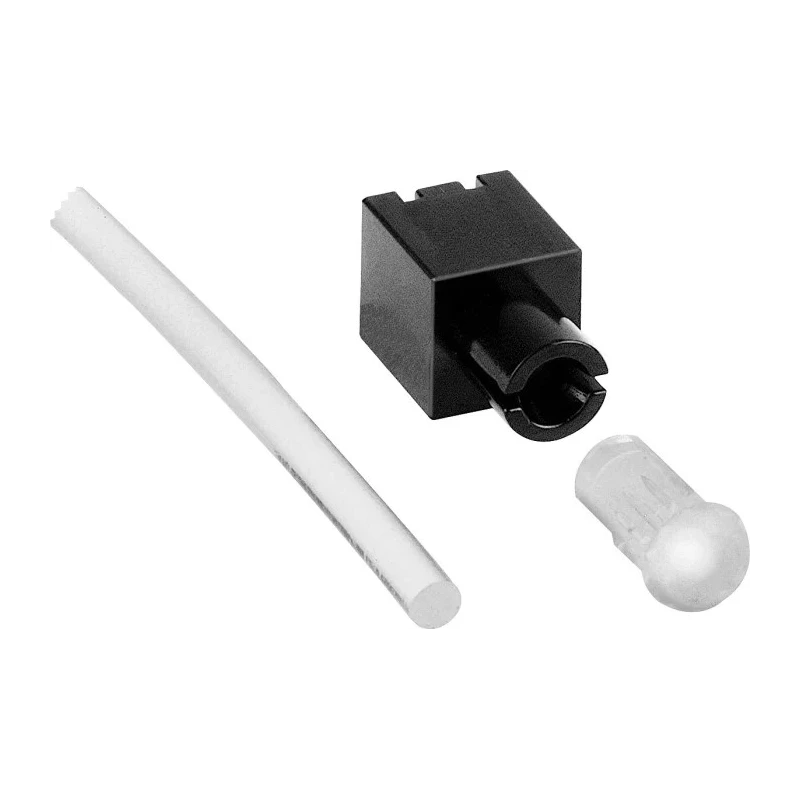

Mentor GmbH Flexible LED Light Pipe 86mm Length PCB Mount 1-Way Straight Clear Yellow 1316.7001
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Straight |
| Length | 86mm |
| Number Of Ways | 1 |
| Mount Type | PCB |
| Housing | PC black UL94 |
| Outside diameter | 4.2mm |
| Inside Diameter | 2mm |
| Lens | PC clear UL94 |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Flexible/Rigid | Flexible |
| Light Pipe Shape | Round |
| Number of Light Pipes | 1 |
| Configuration Rows x Columns | 1 x 1 |
| Light pipe | PMMA |
Key Features
- Designed for use with through-hole (THT) LEDs to provide efficient light transmission.
- Flexible light pipe offering versatility in design and installation.
- Round head shape made from clear PC lens and PMMA light pipe for optimal clarity.
- Housing constructed of black PC UL94 material ensuring durability and safety.
- Mounted securely to the PCB via two press-in lugs for easy setup.
- Operational ambient temperature range from -40°C to +85°C.
- Complies with RoHS standards ensuring environmental compliance.
- Manufactured in Germany, assuring high-quality European standards.
Product Description
Mentor GmbH 1316.7001 is a flexible LED Light Pipe designed to guide light from through-hole PCB-mounted LEDs in electronic applications. Measuring 86mm in length with a straight orientation and single light path, this light pipe features a clear PC lens combined with PMMA material for the light pipe, ensuring high-quality optical transmission.
The round-shaped light pipe head, measuring 4.2mm outside diameter and 2mm inside diameter, is housed in durable black PC (UL94) material, providing robust mechanical protection and flame retardance. It is securely mounted to PCBs using two press-in lugs, facilitating quick and reliable installation.
With an ambient temperature operating range from -40°C to +85°C, this flexible light pipe suits demanding industrial and commercial environments. It is RoHS compliant, aligning with environmental and safety standards. Germany-based manufacturing guarantees consistency and superior production quality.
This light pipe is ideal for use in electronic components requiring visual indicators, displays, and signage systems via LED light transfer on PCBs. It offers design flexibility due to its flexibility and simple PCB mounting options.
Designed for through-hole LED applications to deliver efficient light guidance. Flexible design allows for versatile installation configurations. Durable materials ensure longevity and compliance with safety standards. Easy mounting to PCB with a secure press-in lug system.
Dimensions optimized for standard PCB LED interfaces. Operates reliably over a wide temperature range suitable for various industries. RoHS certified to meet environmental and health regulations. Manufactured in Germany, providing reliability and quality assurance.
Explore additional Mentor GmbH LED lighting components and other electronic parts on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flexible LED light pipe measures 86mm in length.
It operates reliably within an ambient temperature range of -40°C to +85°C.
The housing is made from black PC (UL94) material, while the lens is a clear PC (UL94) and the light pipe is made from PMMA.
It is securely mounted to the PCB using two press-in lugs, which facilitate easy installation.
The outside diameter of the light pipe is 4.2mm, and the inside diameter is 2mm.
This model is designed for use with through-hole (THT) LEDs, providing efficient light transmission.
Yes, it complies with RoHS standards, ensuring environmental compliance.
The light pipe has a round shape, which aids in effective light guidance.
This model includes one light pipe in its configuration.
It is manufactured in Germany, ensuring high-quality European standards.
It is suitable for visual indicators, displays, and signage systems in electronic components using LED light transfer.
The configuration is a single light pipe arranged in one row and one column.
