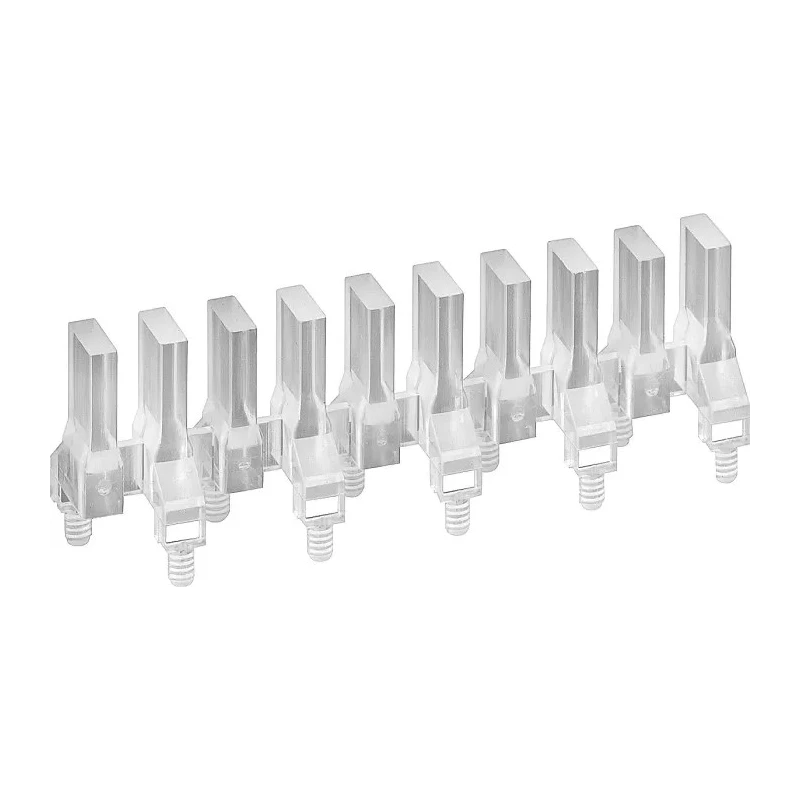

Mentor GmbH Vertical 10-Way Straight Rigid LED Light Pipe Clear, Yellow, 2 x 5 mm 1274.1020
Specifications
| Country of Origin | Germany |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Straight |
| Length | 30mm |
| Number Of Ways | 10 |
| Mount Type | Vertical |
| Inside Diameter | 2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| LED Colour | Yellow |
| Flexible/Rigid | Rigid |
| Lens Size | 2 x 5 mm |
| Light Pipe Shape | Rectangle |
| Number of Light Pipes | 10 |
| Configuration Rows x Columns | 1 x 10 |
Key Features
- Constructed with rigid PC clear UL94 material ensuring durability and flame resistance.
- Features a vertical mount type with straight orientation for optimal LED integration.
- Comprises 10 rectangular light pipes arranged in a 1 x 10 configuration.
- Designed specifically for bargraph displays with rectangular heads parallel to the printed board.
- Supports an ambient temperature range from -40°C to +85°C for versatile industrial environments.
- Utilizes a 2 x 5 mm lens size with a 2 mm inside diameter for focused light transmission.
- Compatible with surface mount (SMD) LEDs and uses push-fit lugs for secure attachment.
- Does not include LEDs; intended exclusively as a light pipe component.
Product Description
Mentor GmbH 1274.1020 Vertical 10-Way Straight Rigid LED Light Pipe is a premium component designed to transfer light effectively from surface mount LEDs to user interfaces, minimizing luminance loss and preventing light bleed between adjacent elements.
This specific light pipe features a rigid construction from polycarbonate (PC) clear UL94 material, ensuring excellent flame resistance and robustness. The 10-way rectangular array is arranged in a single row configuration measuring 1 x 10, making it ideal for use in bargraph displays requiring multiple segments.
With a length of 30mm, a lens size of 2 x 5 mm, and a 2 mm inside diameter, this light pipe directs yellow LED light efficiently while its vertical mounting type allows straightforward installation via push-fit lugs on circuit boards. It is compatible with SMD LEDs and designed for industrial and electronic component applications requiring reliable LED light indication.
The operating ambient temperature range of -40°C to +85°C enables use in harsh environments such as industrial control panels, instrumentation, HVAC systems, and automotive display interfaces. Its design emphasizes precise illumination with its rectangular heads aligned parallel to the interface panel, enhancing visual clarity in measurement and control systems.
Manufactured in Germany, the 1274.1020 model adheres to UL94 flame retardant standards, underscoring quality and safety. This light pipe family from Mentor GmbH offers robust solutions for electronic component manufacturers seeking efficient light transmission in compact LED assemblies.
Constructed from PC clear UL94 flame retardant material for safety and durability. Integrates with SMD LEDs using push-fit lug mounting for reliable circuit board attachment. Optimized for bargraph display applications with 10 light pipe sections in a row.
Supports a wide ambient temperature range suitable for various industrial environments. Manufactured under high-quality German standards ensuring product reliability. Explore more LED Light Pipe solutions and related Mentor GmbH components at EnvMart for your electronic and industrial LED lighting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of the light pipe is 30 mm.
It supports an ambient temperature range from -40°C to +85°C.
This model comprises 10 light pipes arranged in a 1 x 10 configuration.
The lens size is 2 x 5 mm with a 2 mm inside diameter.
It is compatible with surface mount (SMD) LEDs.
This model features a vertical mount type for installation.
It is constructed from rigid polycarbonate (PC) clear UL94 material, which ensures flame resistance.
It is designed specifically for bargraph displays requiring multiple segments.
This model adheres to UL94 flame retardant standards.
The light pipe has a rectangular shape.
It uses push-fit lugs for secure attachment to the circuit board.
This light pipe is manufactured in Germany.
