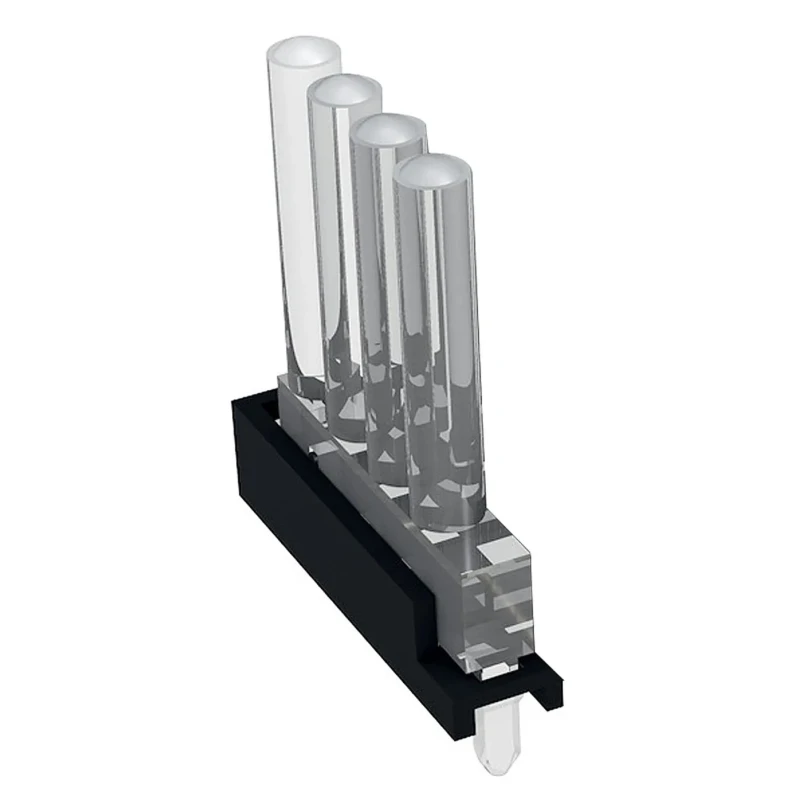

Mentor GmbH Vertical 4-Way Straight Rigid LED Light Pipe Clear 2 mm 1296.7014

Mentor GmbH 1296.7014 Vertical 4-Way Straight Rigid LED Light Pipe is a precision-engineered component with a lens size of 2 mm and an overall length of 15 mm. This compact LED light pipe features a rigid construction made from UL94 certified material, ensuring flame retardancy and durability under varied operating environments.

The vertical orientation and straight design allow the light pipe to be mounted vertically onto printed circuit boards, making it ideal for interfacing with surface-mount LEDs through push-fit lugs. Its four rows of round heads provide a miniature multiple light guide array that efficiently transmits LED light with minimal luminance loss and negligible light bleed between adjacent elements.

Featuring a diameter of approximately 1.95 mm, this light pipe is engineered with a clear lens to maximize optical clarity and light output, making it suitable for applications in electronics manufacturing, lighting components, and optoelectronic devices.

Designed to operate in ambient temperatures ranging from -40°C to +85°C, this product ensures reliable performance across a wide temperature span. The product’s compliance with UL94 standards further assures users of material safety and high manufacturing quality.

The light pipe’s design includes a light diffusing cover to prevent radiation leakage when used in combinations of different colored LEDs, enhancing the user interface's visual appeal and functional accuracy.

Manufactured in Germany, the product aligns with stringent industrial standards for electronic components. It is typically used in industrial, laboratory, and commercial electronic devices requiring precise light transmission.

The product features a rigid construction ensuring durability in electronic applications. It has a 15 mm length with a straight orientation suitable for vertical mounting. The LED light pipe is clear, providing efficient light transmission with minimal loss.

Configured in a 4-way round-head arrangement to interface seamlessly with surface-mount LEDs. Complies with UL94 standards, ensuring material safety and quality. Operates reliably in an ambient temperature range from -40°C to +85°C.

Designed to prevent light bleed using a light diffusing cover for multi-color LED arrays. Ideal for industrial, electronic component, and optoelectronic applications. Manufactured in Germany to high quality standards. Explore more products in our comprehensive Electronics & Electricals category for LED Light Pipes, lighting components, and related items on EnvMart.
