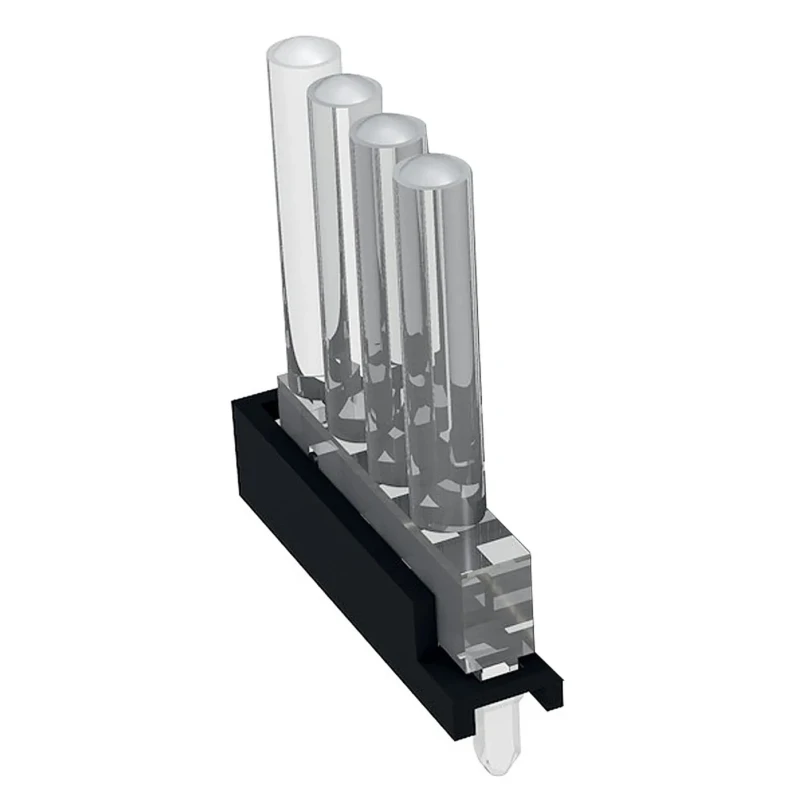

Mentor GmbH Vertical 4-Way Straight Rigid LED Light Pipe Clear 2 mm 1296.7114

Mentor GmbH 1296.7114 Vertical 4-Way Straight Rigid LED Light Pipe Clear 2 mm is engineered for high performance in electronic and industrial applications requiring efficient light transmission from SMD LEDs. Its rigid polycarbonate construction with UL94 rating offers durability and compliance with safety standards.

The vertical mounting orientation with straight alignment ensures precise installation on printed circuit boards, while the four rows of round light pipes transmit light effectively from the LEDs to external interfaces. The light pipe heads have a 2 mm diameter with an overall outside diameter of 1.95 mm, providing sleek integration into compact electronic designs.

This vertical light guide family consists of 40 individual light pipes arranged in a 4 x 1 configuration, facilitating broad illumination coverage. The light diffusing cover mitigates radiation leakage and helps manage color combinations reliably without cross interference. Designed to operate within an ambient range of -40°C to +85°C, the product maintains performance in various environments.

Installation is made straightforward with push-fit lugs for PCB mounting. These LED light pipes do not include LEDs but are intended for use with standard surface mount LEDs offering high luminance transfer efficiency and elimination of light bleeding between adjacent elements. Mentor GmbH provides a reliable solution for LED light guiding in industrial, laboratory, HVAC, manufacturing, and electronic component assembly sectors.

The product features four rows of rigid, round light pipes for effective LED light guidance. It is designed for vertical mounting and straight orientation to fit on printed circuit boards. The light pipe diameter is precisely 1.95 mm, compatible with standard SMD LEDs.

Constructed from polycarbonate material (PC clear) compliant with UL94 safety standards. Ambient operating temperature ranges from -40°C to +85°C ensuring broad environmental reliability. The product does not include LEDs and is optimized for use with external LED sources.

Its configuration allows 4 rows by 1 column forming 40 light pipes in total for extensive illumination needs. Employs a light diffusing cover to prevent radiation leakage when combining different colours. Push-fit lug mounting ensures simple installation on circuit boards with strong ESD protection.

The light pipes transmit LED light to the user interface with high luminance and minimal light bleed. Explore the comprehensive range of LED Light Pipes at EnvMart for your lighting and electronic design needs.
