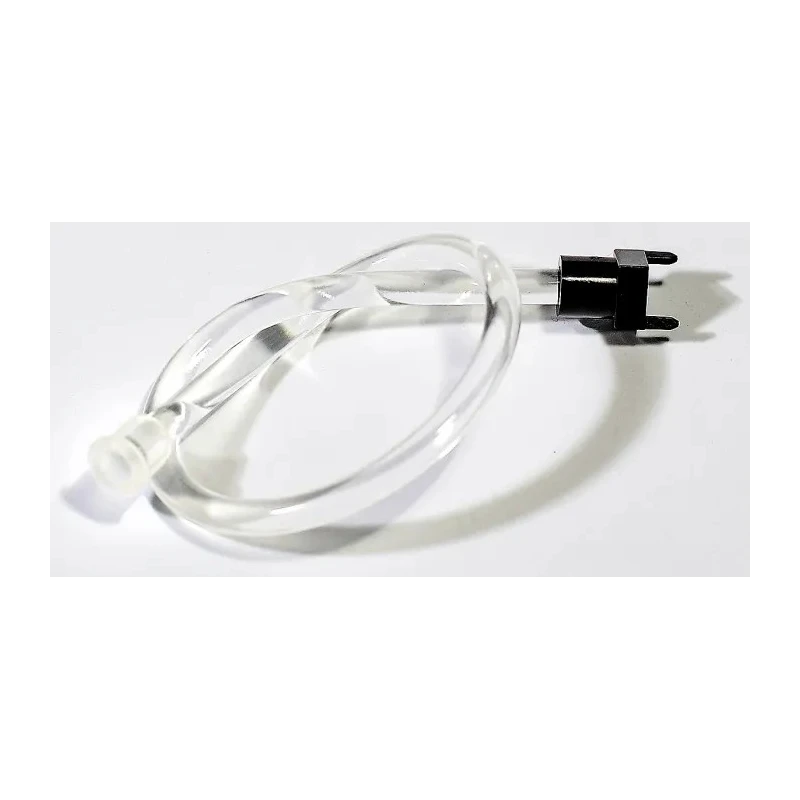

Mentor GmbH Flexible LED Light Pipe Surface Mount 1-Way Straight Transparent 150mm 1216.1013

Mentor GmbH 1216.1013 Flexible LED Light Pipe is a high-quality surface mount LED light guide designed for efficient light transmission from PCB-mounted SMD TOPLED LEDs. This 1-way straight, flexible LED light pipe features a transparent LED colour and round light pipe shape optimized for horizontal or vertical light guiding applications in industrial and electronic designs.

The product measures 150mm in length with an inside diameter of 3mm and an outside diameter of 6mm, providing focused and efficient light transmission while minimizing luminance loss and light bleed. Its flexible housing enhances design adaptability, allowing integration where rigid light pipes cannot be used. The light pipe inject face is designed for proximity to LEDs on PCBs, enhancing brightness and visual clarity.

The lens is constructed from PC clear UL94 material, offering excellent optical clarity and flame retardance, while the housing is made of durable PC black UL94 plastic to protect the assembly. Operating temperature range from -40°C to +85°C ensures reliability across various environmental conditions. This product meets RoHS standards, confirming its compliance with environmental and safety regulations.

The flexible light guide can be easily mounted to PCBs using two press-in lugs in the housing, facilitating quick and secure installation on electronic components or interfaces.

This product is ideal for applications in electronics manufacturing, industrial control panels, display units, and other commercial or laboratory equipment where precise light guiding and flexibility are critical.

Manufactured in Germany, this flexible LED light pipe exemplifies high industrial quality for demanding uses. Flexible housing offers design versatility and easy integration. 150mm length suitable for various PCB mounting applications.

Round light pipe shape with 3mm inside and 6mm outside diameter for focused light guidance. Lens made from PC clear UL94 material ensures durability and clarity. Housing constructed with PC black UL94 for robust protection.

Operates reliably within ambient temperatures from -40°C to +85°C. Compatible with SMD TOPLED LEDs, providing efficient light transfer. RoHS compliant ensuring environmental safety and quality. Designed and manufactured in Germany for industrial quality standards.

Easy PCB mounting facilitated by two press-in lugs in the housing. Explore more LED Light Pipe components and lighting solutions across the EnvMart platform to find compatible products for your design and manufacturing needs.
