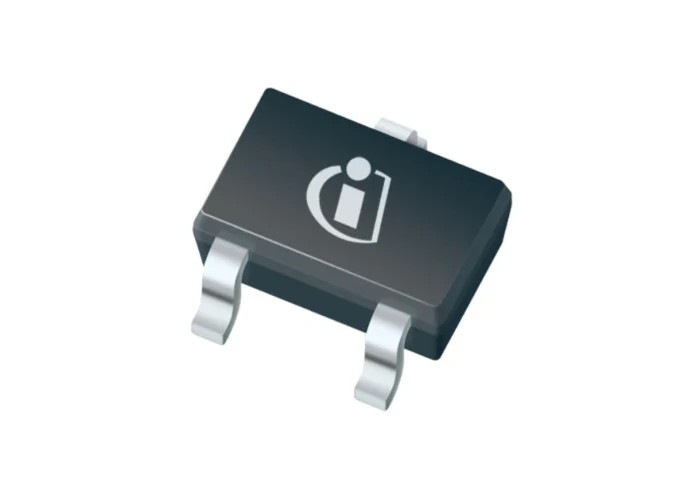

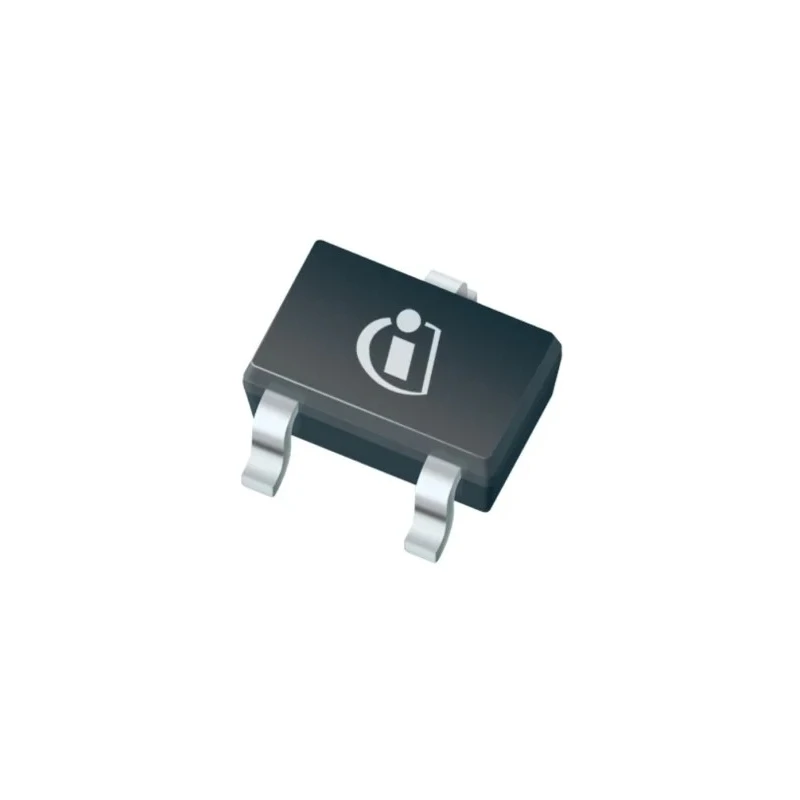

Infineon 4 V 700 mA Schottky Diode 3-Pin SOT-343 BAT1705WH6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.9mm |
| Length | 2mm |
| Model | BAT1705WH6327XTSA1 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | BAT17 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-343 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 700mA |
| Peak Reverse Repetitive Voltage Vrrm | 4V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.25μA |
| Maximum Forward Voltage Vf | 600mV |
Key Features
- Surface mount device suitable for compact PCB assembly.
- Common cathode diode configuration optimized for high-speed switching.
- Low forward voltage of 600 mV for efficient operation.
- Peak reverse voltage rating of 4 V with 1.25 μA peak reverse current.
- Automotive standard AEC-Q101 qualified for high reliability.
- Operational temperature range from -55°C to 125°C.
- Package dimensions approximately 2 mm length, 1.25 mm width, and 0.9 mm height.
- Lead-free and RoHS compliant construction.
Product Description
The Infineon BAT1705WH6327XTSA1 is a high-performance Schottky diode packaged in a compact 3-pin SOT-343 form factor, designed for surface mounting on printed circuit boards.
Featuring a maximum continuous forward current rating of 700 mA and a peak reverse repetitive voltage of 4 V, this diode delivers reliable operation in demanding electronic applications.
Its common cathode diode configuration and low forward voltage of 600 mV enable efficient high-speed switching, making it ideal for wireless communications, satellite receivers, base stations, high-speed data networks, mixer applications in the VHF/UHF frequency ranges, and RFID technology.
Constructed to meet automotive standard AEC-Q101 and with an operating temperature range from -55°C to 125°C, the diode ensures robust performance in harsh environmental conditions.
The device dimensions are compact, with length measuring 2 mm, width 1.25 mm, and height 0.9 mm, enabling integration into space-constrained designs. Surface mount design allows for seamless PCB assembly. Common cathode configuration supports typical rectifier and switching applications.
Low forward voltage minimizes power loss. Peak reverse current of 1.25 μA ensures minimal leakage. AEC-Q101 automotive standard compliance guarantees quality and durability. Wide operating temperature range enhances versatility.
Compact physical dimensions fit various electronic modules. Lead-free and environmentally compliant manufacturing. This Schottky Diode is suitable for industrial, telecommunications, automotive, and consumer electronics sectors, supporting demanding switching and rectification needs.
For more electronic components and semiconductor devices, explore the extensive Infineon range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 700 mA.
This model has a peak reverse repetitive voltage rating of 4 V.
The maximum forward voltage drop for this Schottky diode is 600 mV.
The operational temperature range for this diode is from -55°C to 125°C.
This diode is packaged in a SOT-343 form factor.
It features a common cathode diode configuration.
The peak reverse current for this diode is 1.25 μA.
Yes, it is AEC-Q101 qualified for high reliability in automotive applications.
The dimensions of this diode are approximately 2 mm in length, 1.25 mm in width, and 0.9 mm in height.
This model supports surface mounting for PCB assembly.
It is suitable for applications in wireless communications, satellite receivers, and high-speed data networks, among others.
The country of origin for this diode is India.
