| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1mm |
| Length | 2.9mm |
| Model | BAS7005WH6327XTSA1 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | BAS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 700mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 0.1μA |
| Maximum Forward Voltage Vf | 1000mV |

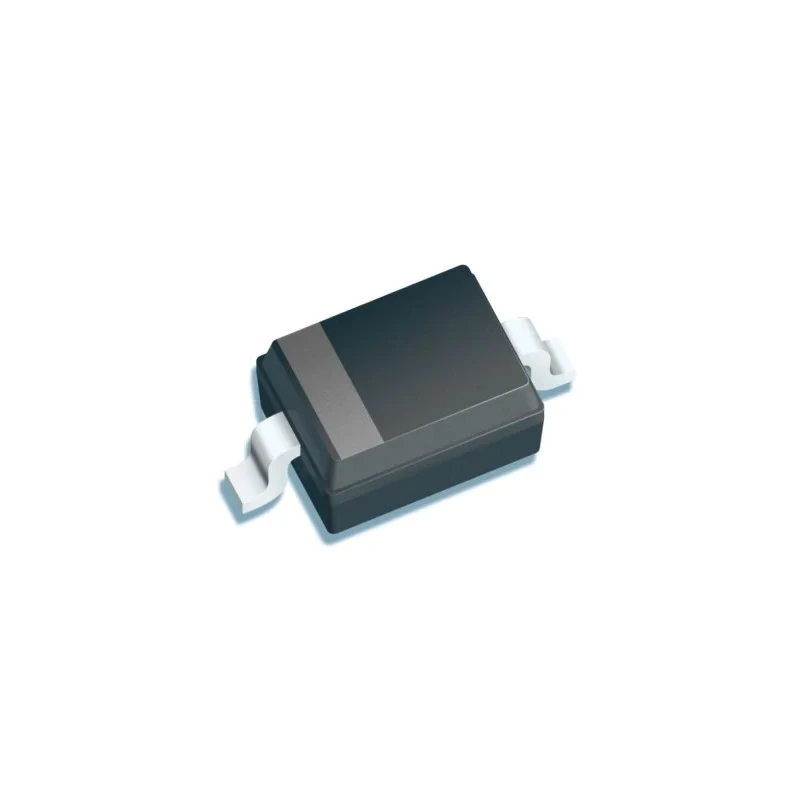

Infineon BAS7005WH6327XTSA1 is a silicon Schottky diode designed for high-speed switching and low voltage-drop applications in surface-mount electronic assemblies. It comes in a compact SOT-323 package with two pins configured as a common cathode pair, supporting dual diode arrangements.
This diode supports a maximum continuous forward current of 700 mA and can withstand a peak reverse repetitive voltage of 70 V, safeguarding circuits against transient reverse voltages. The device also achieves a very low peak reverse current of 0.1 μA, enhancing efficiency by reducing leakage during the off state.
It is qualified to the automotive AEC-Q101 standard, making it suitable for rugged applications within automotive and industrial sectors. Its operating temperature range of -55 °C to 125 °C ensures functional stability across demanding environments.
Typical applications include automotive power management circuits requiring rigorous standards, DC-DC converters for improved efficiency, power-OR steering for low voltage drops, reverse polarity protection in battery systems, and signal clamping in mixed-signal modules.
The small height (1 mm), length (2.9 mm), and width (1.3 mm) contribute to its suitability for compact circuit layouts where space is at a premium. Low forward voltage minimizes conduction losses during operation. Handles a continuous forward current of 700 mA for moderate power loads.
Peak reverse repetitive voltage of 70 V protects against transient reverse voltage spikes. Extremely low peak reverse current reduces leakage and improves efficiency. Qualified to automotive AEC-Q101 standard ensuring rugged and reliable performance.
Operates effectively across -55 °C to 125 °C temperature range. Consists of two diodes arranged as a common cathode pair for dual-diode configurations. Suited for automotive power management and low-voltage drop steering circuits.
Ideal for DC-DC converters, battery reverse-polarity protection, and signal clamping applications. Explore more Infineon semiconductors and related Schottky Diode components in this category on EnvMart to complement your electronic design needs.
