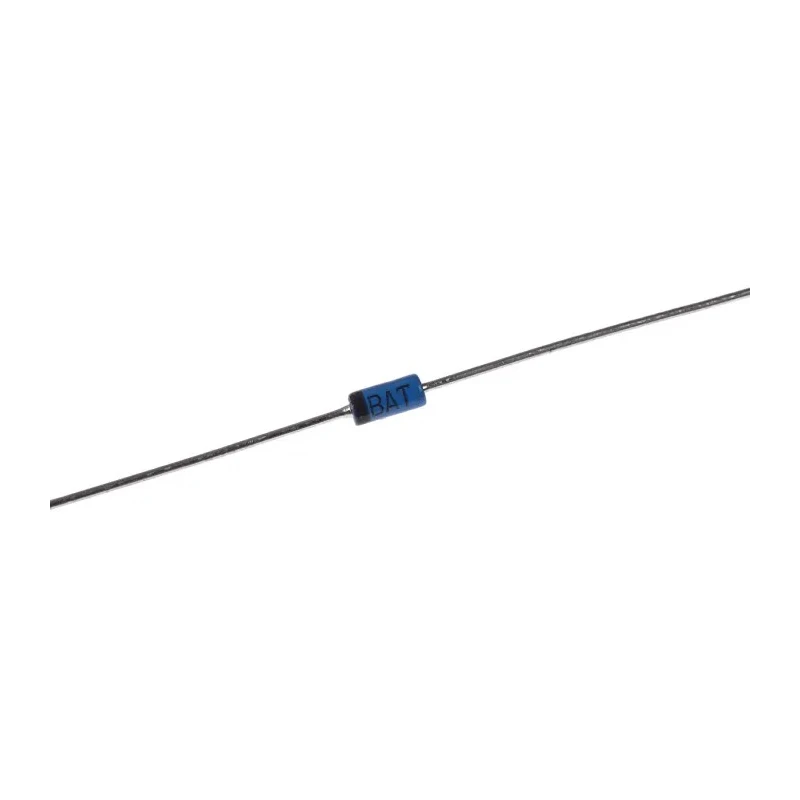

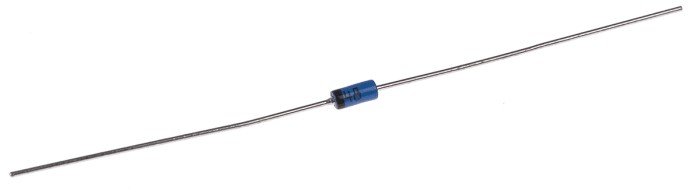

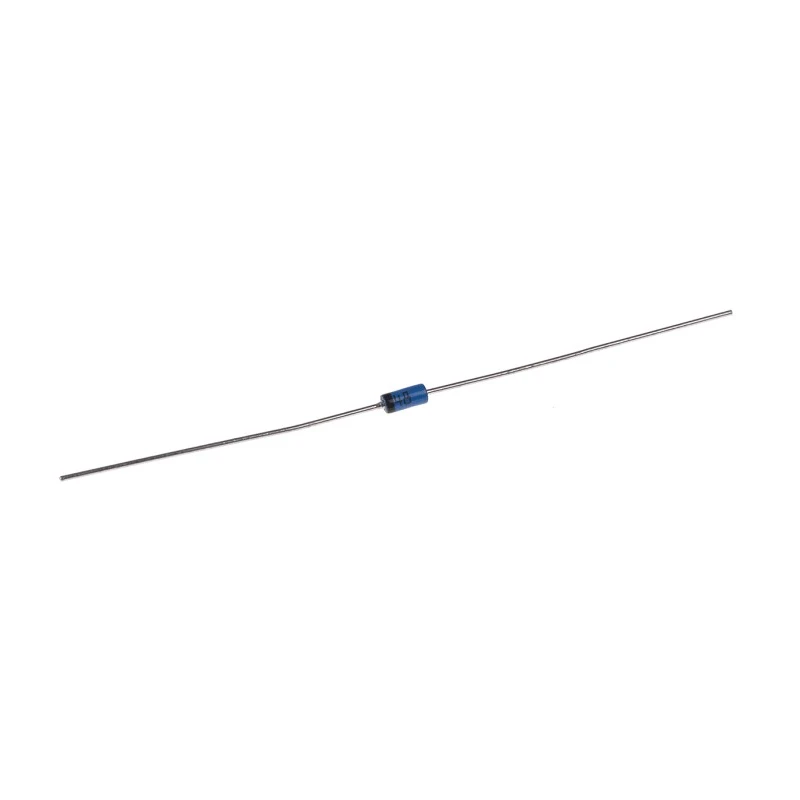

STMicroelectronics 40 V 350 mA Schottky Diode 2-Pin DO-35 BAT48

STMicroelectronics BAT48 is a Schottky diode engineered for efficient rectification and low forward voltage drop, supporting up to 350 mA continuous forward current and a peak reverse voltage of 40 V. It features a through-hole mount type in a DO-35 package with a 2-pin configuration, suitable for discrete semiconductor applications in industrial electronics.

The diode operates reliably across a wide temperature range from -65°C to 125°C, making it suitable for diverse environmental conditions. Its maximum forward voltage of 900 mV ensures high efficiency with minimal conduction losses. The device also supports a peak non-repetitive forward surge current of 2 A, which allows it to tolerate brief surge conditions without damage.

Physically, the diode measures 4.5 mm in length and 2 mm in diameter, enabling compact circuit design integration. It is built without automotive certification and conforms to standard semiconductor quality, originating from China.

This Schottky Diode is useful in industrial, electronic component manufacturing, power supply circuits, and semiconductor applications. It excels in providing efficient power rectification, low forward voltage drop, and rapid switching capabilities, essential for power management and signal processing roles.

Maximum continuous forward current of 350 mA ensures efficient current handling. Peak reverse repetitive voltage of 40 V offers reliable voltage protection. Package type DO-35 with 2-pin configuration suits a variety of circuit layouts.

Operating temperature range spans from -65°C to 125°C for robust performance. Maximum forward voltage is 900 mV ensuring low power loss during conduction. Peak non-repetitive forward surge current of 2 A supports transient overcurrent conditions.

Compact dimensions with 4.5 mm length and 2 mm diameter facilitate space-saving designs. Manufactured in China with new product condition and high-quality standards. Explore more semiconductor and diode solutions by STMicroelectronics in the Electronics & Electricals category at EnvMart.
