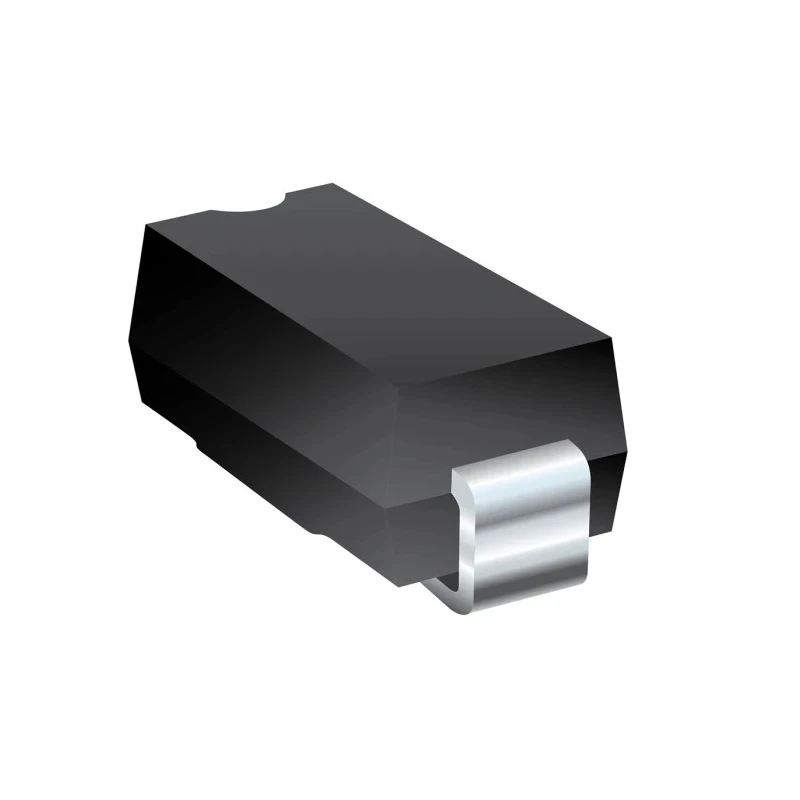

Bourns 1-Element Uni-Directional ESD Protection Diode, 600 W, 2-Pin DO-214 SMA6J5.0A-Q

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1-Element Uni-Directional ESD Protection Diode, 600 W, 2-Pin DO-214 SMA6J5.0A-Q

Name: Bourns 1-Element Uni-Directional ESD Protection Diode, 600 W, 2-Pin DO-214 SMA6J5.0A-Q
Brand: BOURNS
SKU: 305047
Price: 16.01 INR
Availability: InStock



Category ESD Protection Diode Brand BOURNS Condition New

Specifications

Country of Origin	Taiwan
Brand	Bourns
Height	2.08mm
Length	4.5mm
Model	SMA6J5.0A-Q
Width	2.79mm
Mount Type	Surface
Series	SMA
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6.4V
Maximum Reverse Stand-off Voltage Vwm	43V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	10mA
Maximum Reverse Leakage Current	800μA
Standoff Voltage	5 to 43 volts

Key Features

Designed for surface mount applications with a 2-pin DO-214 package.
Provides effective transient voltage suppression with a standoff voltage of 5 to 43 volts.
Minimum breakdown voltage of 6.4 V and maximum reverse leakage current of 800μA.
Operates reliably between -55°C and 150°C operating temperatures.
Rated for a test current of 10 mA and complies with AEC-Q101 automotive standards.
Ideal for protecting power buses, I/O interfaces, and overvoltage transients in telecom, computer, industrial, and consumer electronics.

Product Description

Bourns SMA6J5.0A-Q is a 1-element uni-directional ESD protection diode delivering 600 W peak pulse power dissipation in a 2-pin surface mount DO-214 package.

This device offers reliable transient voltage suppression with a standoff voltage range from 5 to 43 volts and a minimum breakdown voltage of 6.4 V. It features low leakage current and fast response times less than 1.0 picosecond, ensuring efficient protection against voltage spikes.

The diode is suitable for operation in extreme environmental conditions, withstanding temperatures from -55°C to 150°C. Its compact and flat SMA package minimizes roll-away during handling and allows for standard pick and place manufacturing methods.

Typical applications include safeguarding power buses and input/output interfaces against electrical overstress and surges in telecom equipment, computers, industrial machinery, and consumer electronics.

Designed for surface mount technology with a 2-pin DO-214 package. Peak pulse power dissipation rating of 600 watts. Standoff voltage of 5 to 43 volts ensures wide operational voltage range. Automotive-grade AEC-Q101 certification indicates robust quality standards.

Compact size with dimensions: 4.5 mm length, 2.79 mm width, 2.08 mm height. Low maximum reverse leakage current of 800 μA enhances efficiency. Fast diode response time effectively protects against ESD events.

This Bourns ESD Protection Diode is manufactured in Taiwan, Province Of China, meeting stringent quality control requirements. It is an essential component for high-reliability surge protection in various industrial and commercial electronic systems.
