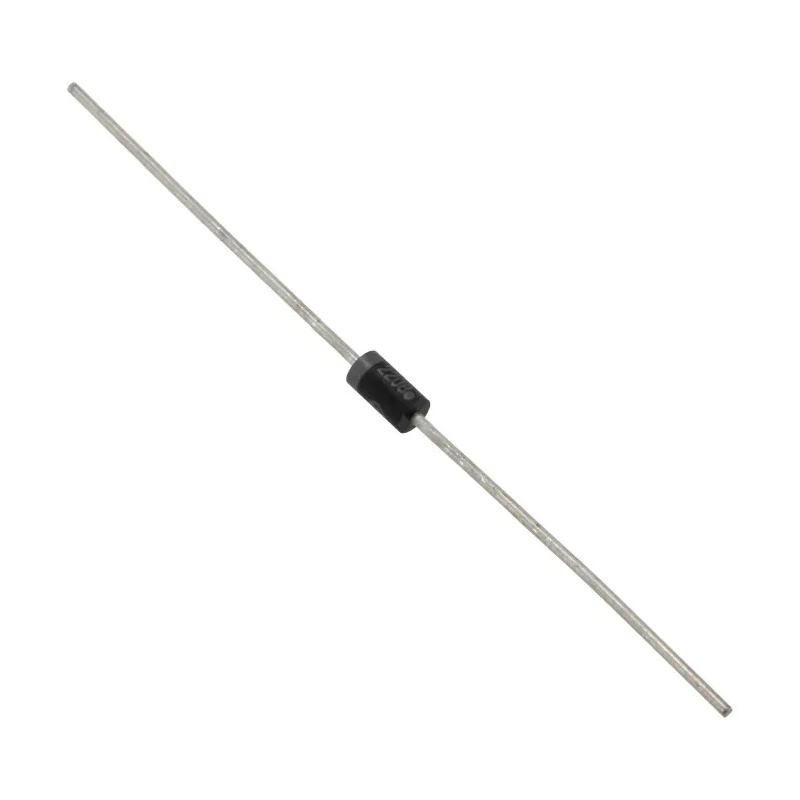

onsemi 24 V Zener Diode Voltage Regulator Through Hole 3 W 5 % Tolerance 1N5934BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5934BG |
| Finish | All external surfaces are corrosion resistant and leads are readily solderable |
| Mount Type | Through Hole |
| Series | 1N5934B |
| Maximum Operating Temperature | 200°C |
| Case | Void free, transfer-molded, thermosetting plastic |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by polarity band |
| Mounting Position | Any |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 15.6mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 700Ω |
| MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES | 230°C, 1/16, from the case for 10 seconds |
Key Features
- Single diode configuration designed for voltage regulation applications.
- Nominal Zener voltage of 24 V with ±5 % tolerance for precise voltage control.
- Maximum power dissipation of 3 W ensures stable operation in power circuits.
- Axial-lead, transfer-molded plastic package (Case 017AA) provides excellent environmental protection.
- Operating temperature range from -65°C to 200°C supports diverse industrial environments.
- Corrosion resistant finish with readily solderable leads for durable connections.
- Two-pin configuration with cathode polarity marked by a band for easy identification.
- Suitable for through-hole mounting on PCB boards for reliable mechanical stability.
Product Description
onsemi 1N5934BG 24 V Zener Diode Voltage Regulator is a high-quality silicon-oxide passivated device designed to provide tight voltage regulation in power circuits. It features a single diode configuration with nominal Zener voltage of 24 V and a power dissipation capacity of 3 W, making it ideal for power supply stabilization and voltage reference applications.
This diode is encapsulated in a Case 017AA axial-lead package which is transfer-molded with thermosetting plastic to offer void-free construction and excellent environmental protection. The exterior finish is corrosion resistant, and the leads are designed to be readily solderable, ensuring durability and ease of assembly in manufacturing processes.
The 1N5934BG supports a wide operating temperature range from -65°C to 200°C, enabling use in harsh industrial and automotive environments. Its mounting type is through-hole with two pins, with the cathode polarity clearly indicated by a polarity band. The compact physical dimensions of 5.2 mm length and 2.7 mm height allow installation in dense PCB layouts.
With a test current rating of 15.6 mA, a maximum zener impedance of 700 Ω, and a negligible maximum reverse leakage current of 1 μA, the diode ensures stable, low-noise voltage regulation. It is protected against electrostatic discharge with a Class 3 rating >16 KV (Human Body Model) and can handle transient surges up to 98 W for 1 ms.
Single diode voltage regulator for power supply stabilization. 3 W power dissipation rating for robust performance. Through-hole axial-lead package for easy PCB mounting. Wide operating temperature range suitable for industrial uses.
Corrosion resistant finish for long service life. Cathode polarity marked for correct installation orientation. Compact dimensions for space-efficient PCB design.
This Zener diode series is well-suited for applications in power supply circuits, instrumentation, industrial automation, and automotive electronics. Its reliable operating characteristics and durable package design make it a versatile component in discrete semiconductor solutions.
Explore our extensive selection of semiconductor components on EnvMart for all your electronic design and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 24 V with a tolerance of ±5%.
It has a maximum power dissipation of 3 W, ensuring stable operation in power circuits.
The operating temperature range for this diode is from -65°C to 200°C, making it suitable for harsh environments.
This model is encapsulated in a Case 017AA, which is a void-free, transfer-molded thermosetting plastic package.
The cathode polarity is marked by a band on the diode for easy identification during installation.
The maximum reverse leakage current is specified at 1 μA, ensuring low noise in voltage regulation applications.
The maximum zener impedance for the 1N5934BG is 700 Ω.
The test current rating for this model is 15.6 mA.
This diode supports through-hole mounting, which provides reliable mechanical stability on PCB boards.
All external surfaces are corrosion resistant, and the leads are designed to be readily solderable.
This Zener diode has a pin count of 2, suitable for its single diode configuration.
The country of origin for this diode is India.
