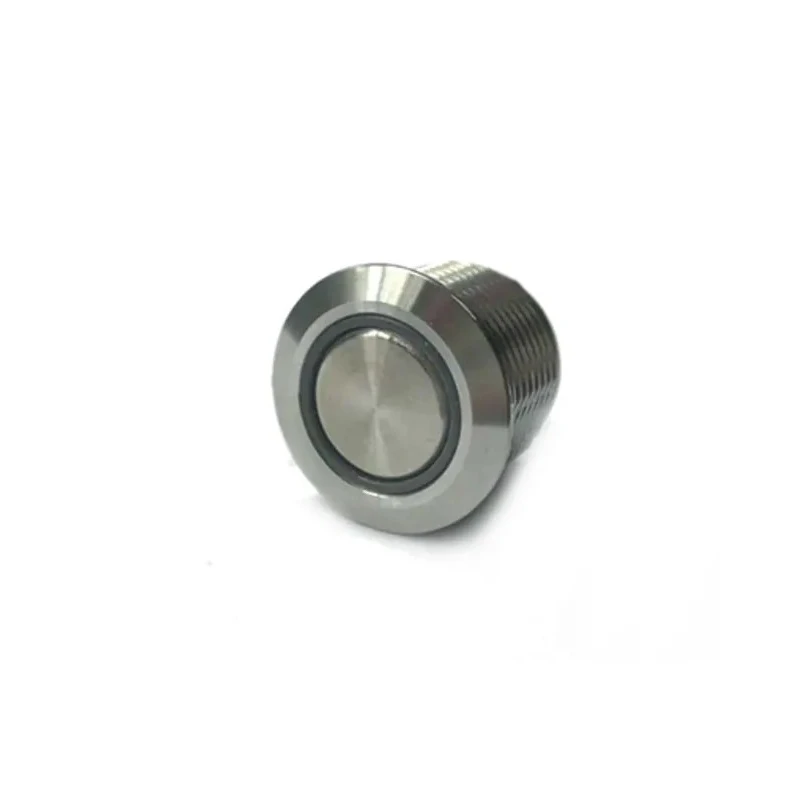

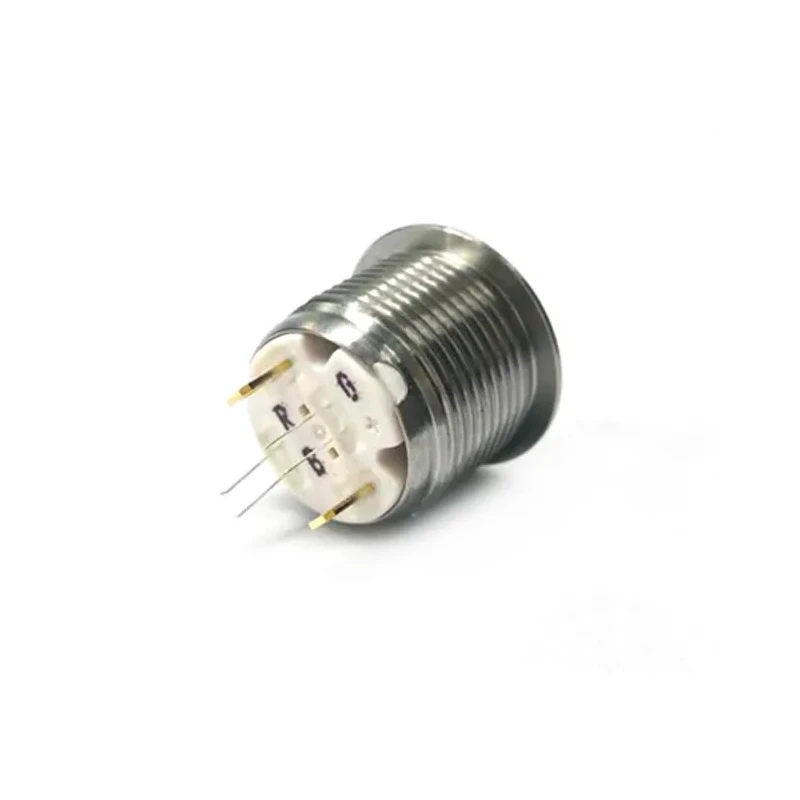

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST, RGB LED, IP67, 36 V dc 175-9140
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 175-9140 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Blue, Green, Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 2A |
Key Features
- This push button switch offers a flat actuator style ensuring easy and reliable operation.
- It is IP67 rated, providing protection against dust and water ingress for harsh environments.
- The switch supports a contact DC voltage of 36 V dc and a contact current rating of 2A.
- It supports RGB LED illumination with Blue, Green, and Red colors for versatile status indication.
- Designed to operate within a temperature range of -20°C to 70°C, suitable for industrial applications.
- It features a momentary SPST contact configuration for momentary switching requirements.
- The mounting type is panel mount with a precise 16 mm cutout size for easy installation.
- Constructed to meet UL 94 V-0 and UL 94 V-2 flame retardancy standards for safety compliance.
Product Description
RS PRO 175-9140 is an illuminated momentary push button switch designed for panel mounting requiring a 16 mm cutout. It operates at 36 V dc with a single pole, single throw (SPST) contact configuration and offers RGB LED illumination with Blue, Green, and Red LEDs. The flat actuator style ensures smooth and reliable operation.
This switch is rated IP67, providing robust protection against dust and water, making it suitable for demanding industrial and automation applications that require vandal resistance and durability.
The device supports a contact current rating of 2A at 36 V dc, operating reliably over a wide temperature range from -20°C to 70°C. RS PRO metal switches are known for their lightweight construction, high strength, corrosion resistance, and excellent heat dissipation properties, making them ideal for use in industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual equipment, and energy storage installations.
This push button switch complies with UL 94 V-0 and UL 94 V-2 safety standards ensuring flame retardancy and reliability in various environments. The solder terminal type ensures secure electrical connections.
This push button switch offers a flat actuator style ensuring easy and reliable operation. It is IP67 rated, providing protection against dust and water ingress for harsh environments. The switch supports a contact DC voltage of 36 V dc and a contact current rating of 2A.
It supports RGB LED illumination with Blue, Green, and Red colors for versatile status indication. Designed to operate within a temperature range of -20°C to 70°C, suitable for industrial applications. It features a momentary SPST contact configuration for momentary switching requirements.
The mounting type is panel mount with a precise 16 mm cutout size for easy installation. Constructed to meet UL 94 V-0 and UL 94 V-2 flame retardancy standards for safety compliance.
This product is widely used in industrial control instruments, medical devices, security monitoring equipment, vehicle peripherals, audio-visual systems, and energy storage equipment. Its robust IP67 rating and vandal resistance make it ideal for public and industrial settings requiring long life expectancy and reliable performance.
Explore RS PRO Push Button Switches and related industrial electrical components in the Electronics & Electricals category on EnvMart for advanced and dependable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating for this model is 36 V dc.
It has a contact current rating of 2A.
This switch features a momentary SPST (Single Pole Single Throw) contact configuration.
The switch is rated IP67, providing protection against dust and water ingress.
It requires a panel cutout size of 16 mm for installation.
It can operate within a temperature range of -20°C to 70°C.
The RGB LED illumination supports Blue, Green, and Red colors.
It features solder terminals for secure electrical connections.
It complies with UL 94 V-0 and UL 94 V-2 standards for flame retardancy.
This model has a flat actuator style for easy and reliable operation.
It is suitable for use in industrial control instruments, medical devices, and security monitoring equipment, among others.
This switch is designed for panel mounting.
