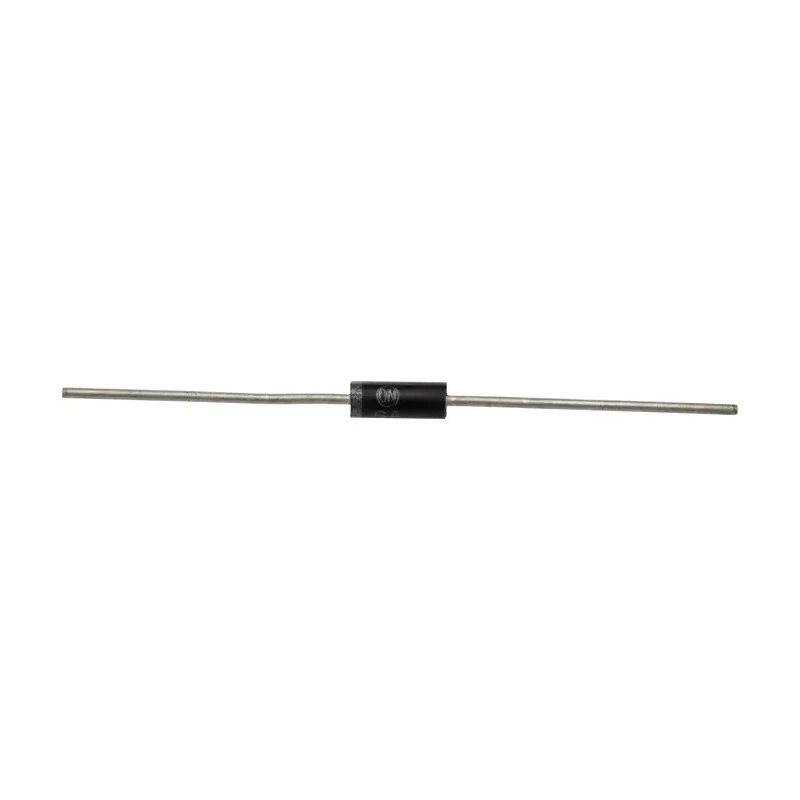

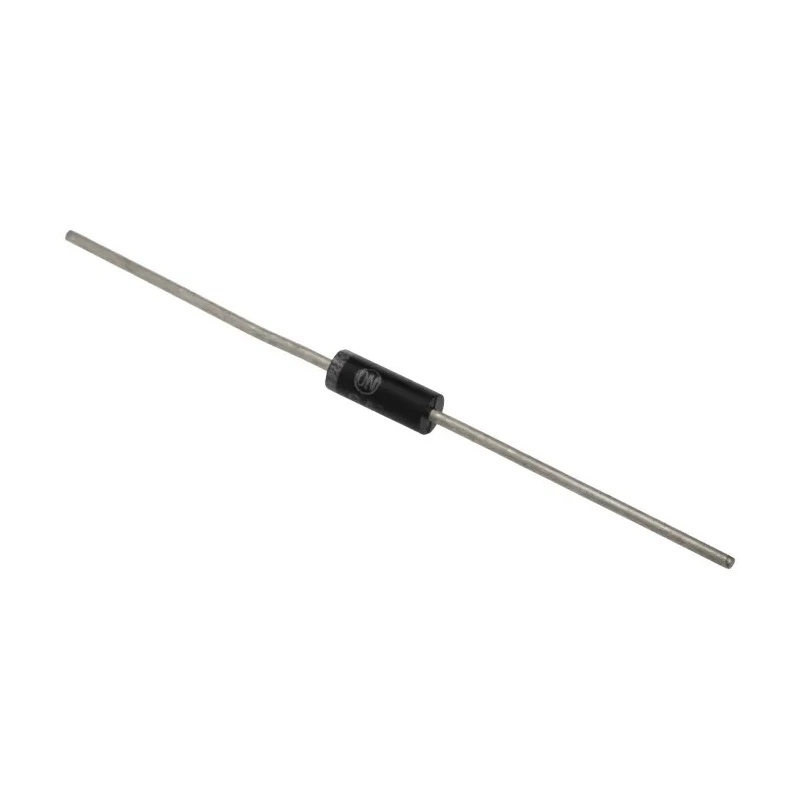

onsemi Zener Diode 120 V 5 W Through Hole 2-Pin DO-15 1N5380BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5380BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 120V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1150Ω |
Key Features
- This Zener diode has a nominal Zener voltage of 120 volts.
- Power dissipation is rated at 5 watts for robust operation.
- It features a through-hole mount type with a 2-pin DO-15 package for easy PCB integration.
- The device operates reliably between -65°C to 200°C temperature range.
- Test current (It) for the diode is 10 mA ensuring stable performance.
- The maximum Zener impedance is 1150 Ω, contributing to accurate voltage regulation.
- Maximum reverse leakage current is low at 500 nA to reduce power loss.
- The diode has a single element chip configuration optimized for discrete semiconductor applications.
Product Description
onsemi 1N5380BG is a discrete semiconductor Zener diode specifically designed for voltage regulation with a nominal rated voltage of 120 V and power dissipation capability of 5 W. It comes in a DO-15 2-pin through-hole package facilitating easy assembly in electronic devices and circuits.
This diode features a single chip element configuration assuring consistent electrical characteristics. Its nominal Zener voltage of 120 V allows regulation within power supplies and voltage reference applications.
Rated to safely dissipate up to 5 W power, the 1N5380BG ensures device stability and longevity during operation under moderate power stresses. Operating temperature ranges wide from -65°C to 200°C enable use in demanding industrial and commercial environments.
Test current is set at 10 mA to provide reliable and repeatable operation, while its maximum Zener impedance of 1150 Ω aids in stabilizing output voltage effectively. Low maximum reverse leakage at 500 nA further enhances energy efficiency.
The physical dimensions of 3.68 mm height and 8.89 mm length conform to industry-standard through-hole component footprints, enabling versatile use in PCB designs. This component is ideal for applications in electronics manufacturing, power supply circuitry, instrumentation, and industrial controls.
Nominal 120 V Zener voltage for accurate voltage regulation. 5 W maximum power dissipation rating for robust performance. Through-hole mount style with standard DO-15 package facilitates ease of integration. Wide temperature range operation from -65°C to 200°C for industrial use.
Low leakage current and stable test current ensure energy efficiency. This Zener diode is suitable for laboratory, manufacturing, commercial electronics repair, and HVAC control systems requiring voltage stability. Explore more semiconductor components and Zener Diodes by onsemi and browse related categories at EnvMart for your industrial and electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 120 volts, allowing it to effectively regulate voltage in various applications.
The maximum power dissipation rating for the 1N5380BG is 5 watts, ensuring stable operation under moderate power stresses.
This diode operates reliably within a temperature range of -65°C to 200°C, making it suitable for demanding environments.
The test current for this Zener diode is set at 10 mA, which ensures reliable and repeatable performance.
The physical dimensions of this Zener diode are 3.68 mm in height and 8.89 mm in length, conforming to standard through-hole component footprints.
The maximum reverse leakage current for the 1N5380BG is low at 500 nA, which helps to reduce power loss during operation.
This model features a through-hole mount type with a 2-pin DO-15 package, facilitating easy assembly in electronic circuits.
The diode has a single element chip configuration, which optimizes its electrical characteristics for discrete applications.
The maximum Zener impedance for the 1N5380BG is 1150 Ω, contributing to effective voltage regulation.
This Zener diode is suitable for applications in electronics manufacturing, power supply circuitry, instrumentation, and industrial controls requiring voltage stability.
The country of origin for this Zener diode is India.
The 1N5380BG belongs to the 1N53 series of Zener diodes, which are designed for voltage regulation applications.
