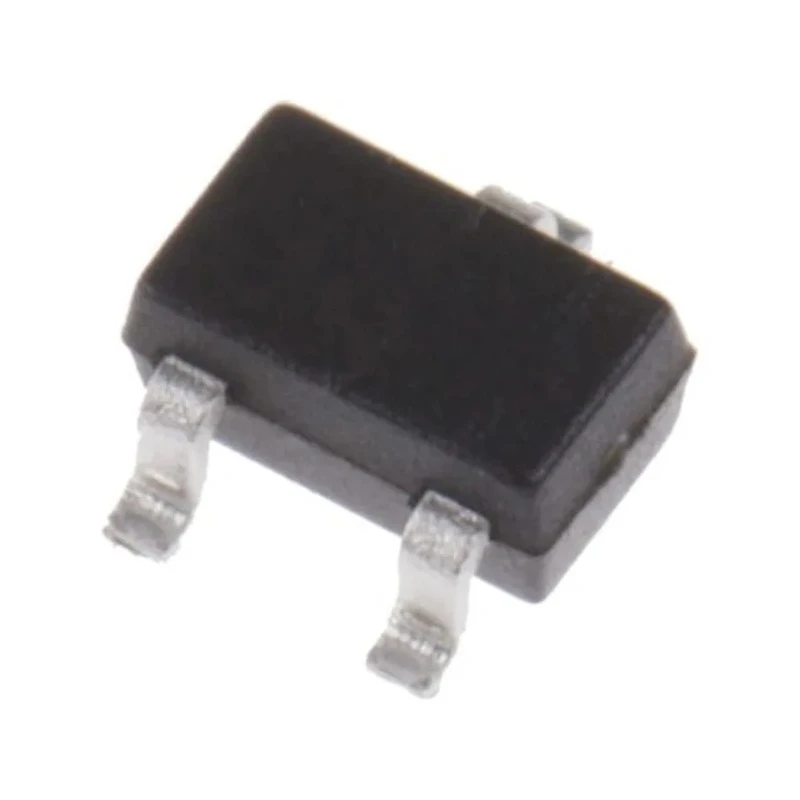

onsemi Digital Transistor PNP 500 mA Collector Current 45 V Collector Emitter Voltage SC-70 Package BC807-25WT1G

Name: onsemi Digital Transistor PNP 500 mA Collector Current 45 V Collector Emitter Voltage SC-70 Package BC807-25WT1G
Brand: onsemi
SKU: 304320
Price: 0.03 USD
Availability: InStock



Category Digital Transistor Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	2.2mm
Model	BC807-25WT1G
Width	2.4mm
Mount Type	Surface
Series	BC807-25W
Maximum Operating Temperature	150°C
Package Type	SC-70
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-45V
Minimum DC Current Gain hFE	40
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	460mW
Maximum DC Collector Current Idc	-500mA
Transistor Configuration	Single
Nexperia BC807-25W,115 Transistor, -500 mA PNP, -45 V, 3-Pin UMTBrand	Nexperia

Key Features

Surface mount transistor suitable for discrete semiconductor applications.
Maximum power dissipation of 460 mW ensures reliable operation.
Temperature range from -55°C to 150°C supports industrial environments.
Featuring a minimum DC current gain (hFE) of 40 for effective switching.
Compliant with automotive standard AEC-Q101 for high reliability.
A single transistor configuration with PNP polarity for general purpose use.
Free from lead, halogens, and brominated flame retardants for eco-friendly applications.

Product Description

onsemi BC807-25WT1G is a digital transistor with PNP polarity designed for general-purpose switching and amplification in electronic circuits. It features a maximum DC collector current of 500 mA and a maximum collector emitter voltage of 45 V, making it suitable for various industrial and commercial applications.

This transistor is packaged in the compact SC-70 surface mount package, measuring 2.2 mm in length, 2.4 mm in width, and 1.1 mm in height, allowing for high-density PCB layouts. It supports operating temperatures ranging from -55°C to 150°C, which is ideal for harsh environments including automotive systems.

The BC807-25WT1G offers a minimum DC current gain of 40, providing efficient transistor switching performance. It can dissipate up to 460 mW of power, ensuring adequate thermal management during operation. The device meets the AEC-Q101 automotive standard, emphasizing quality and reliability in automotive and rigorous industrial applications.

This digital transistor is Pb−Free, halogen-free, and free from brominated flame retardants, aligning with environmentally conscious manufacturing requirements. Surface mount Digital Transistor in SC-70 package. Maximum collector current: 500 mA.

Maximum collector-emitter voltage: 45 V. Operating temperature range from -55°C to 150°C. Power dissipation up to 460 mW. Compliant with AEC-Q101 automotive standard. Compact 3-pin configuration suitable for various circuits.

Environmentally friendly Pb−Free and halogen-free construction. This component is well suited for use in electronic power management, signal amplification, automotive electronics, and other discrete semiconductor circuit designs.
