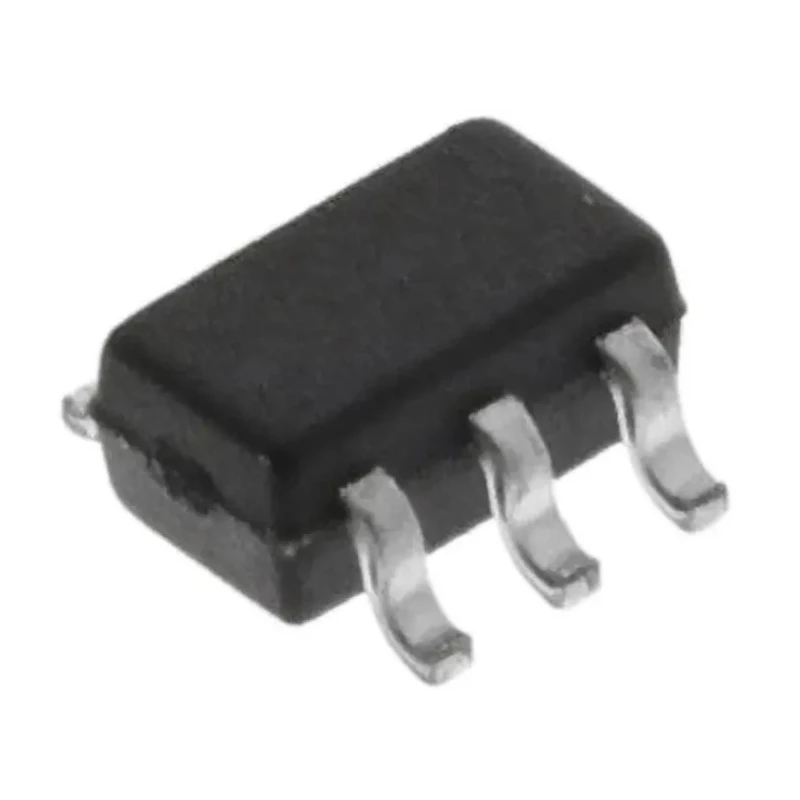

onsemi Digital NPN Transistor 100 mA 50 V 6-Pin SOT-363 MUN5233DW1T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Digital NPN Transistor 100 mA 50 V 6-Pin SOT-363 MUN5233DW1T1G

Name: onsemi Digital NPN Transistor 100 mA 50 V 6-Pin SOT-363 MUN5233DW1T1G
Brand: onsemi
SKU: 304007
Price: 0.05 USD
Availability: InStock



Category Digital Transistor Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	1.1mm
Length	2.2mm
Model	MUN5233DW1T1G
Width	1.35mm
Mount Type	Surface
Series	MUN5233DW1T1G
Maximum Operating Temperature	150°C
Package Type	SOT-363
Standards/Approvals	RoHS
Pin Count	6
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	80
Transistor Polarity	NPN
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Dual
onsemi MUN5233DW1T1G Transistor, 100 mA NPN, 50 V, 6-Pin SOT-363Brand	onsemi

Key Features

Features a built-in monolithic bias resistor network to simplify circuit design and reduce component count.
Surface mount package SOT-363 with 6 pins for compact PCB integration.
Supports dual transistor configuration with a minimum DC current gain of 80.
Maximum power dissipation rated at 250 mW and operates up to 150°C.
Designed to provide reliable performance meeting RoHS and AEC-Q101 automotive standards.
Eliminates external resistor bias networks saving board space and lowering system costs.
Contains Pb-free and halogen-free materials ensuring environmental compliance.

Product Description

onsemi MUN5233DW1T1G Digital NPN Transistor is specifically engineered to integrate a transistor and its bias resistors in one compact device. This 6-pin SOT-363 surface mount transistor is suitable for design simplification and cost reduction in electronic circuits requiring low collector current and voltage.

The device includes two monolithic resistors internally connected in series with the base and emitter terminals, effectively replacing discrete resistors in circuit designs. This integration improves reliability, reduces component count, and optimizes PCB layout efficiency.

Operating up to 150°C, the transistor supports a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 50 V. It exhibits a minimum DC current gain (hFE) of 80 and dissipates up to 250 mW power, ensuring robust performance in diverse electronic applications.

Compliant with RoHS and AEC-Q101 automotive standards, the transistor is well-suited for automotive, industrial, and consumer electronics requiring high reliability and compact form factors. Its dual transistor configuration and small dimensions (2.2 mm length, 1.35 mm width, 1.1 mm height) allow for versatile PCB mounting and circuit design.

Built-in bias resistor network for integrated transistor operation. Surface-mount SOT-363 package supports efficient PCB layout. Optimized for low power and moderate voltage applications. Environmental compliance with Pb-free and halogen-free materials.

Meets automotive grade reliability with AEC-Q101 certification.

This transistor is ideal for designers aiming to reduce circuit complexity and minimize board space usage while maintaining stable electrical performance. The device is manufactured in China and supports a wide range of commercial and industrial electronic design needs.
