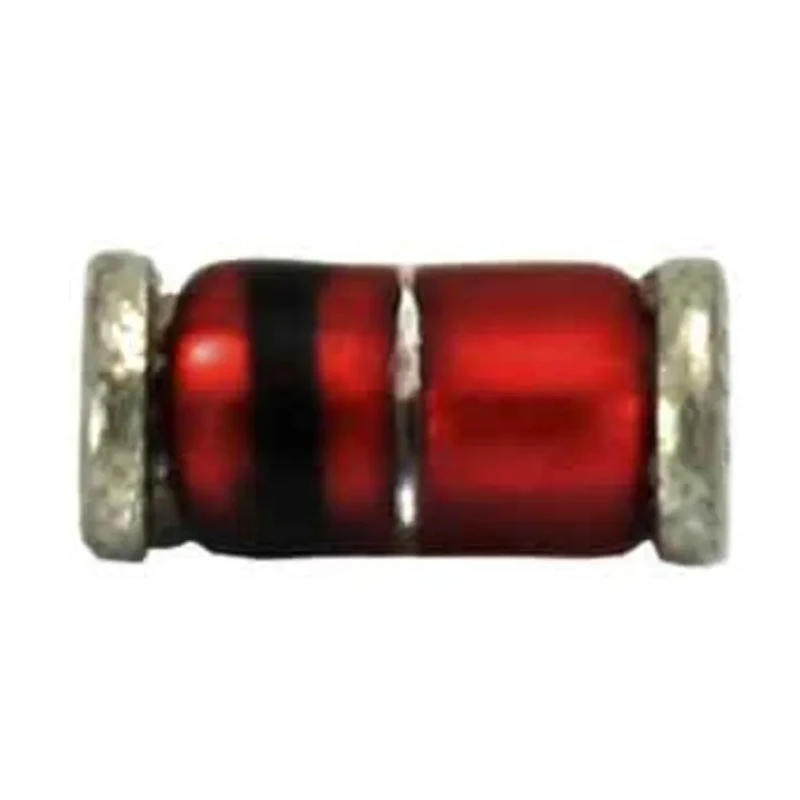

Vishay Zener Diode 31 V Single 1 W 5% Tol, Surface Mount, 2-Pin DO-213AB ZMY33-GS08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 4mm |
| Model | ZMY33-GS08 |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 25μA |
| Nominal Zener Voltage Vz | 31V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 20Ω |
Key Features
- The diode features a 5% voltage tolerance ensuring reliable voltage regulation.
- It is housed in a compact DO-213AB package suitable for surface mounting.
- The device supports a test current of 25 mA and a maximum reverse leakage current of 25 µA.
- Operating temperature range extends from -55°C to 175°C for robust performance.
- The diode complies with RoHS standards and meets automotive AEC-Q101 certification.
- Designed for general-purpose Zener applications including voltage stabilization and clipping circuits.
- The package has 2 pins enabling easy PCB integration.
- Zener impedance is rated at a maximum of 20 Ω for stable operation.
Product Description
Vishay ZMY33-GS08 Zener Diode is a high-quality, single-element discrete semiconductor designed for voltage regulation in electronic circuits. This surface mount device features a nominal Zener voltage of 31 V with a tight tolerance of ±5%, making it suitable for precision voltage stabilization and clipping applications.
Housed in the industry-standard DO-213AB package, the diode supports a maximum power dissipation of 1 watt, ensuring efficient energy handling within compact PCB layouts. The device's test current is 25 mA, and it maintains a low reverse leakage current capped at 25 µA, contributing to its reliability and energy efficiency.
The operating temperature range from -55°C to 175°C allows the ZMY33-GS08 to function reliably in demanding industrial, automotive, and consumer electronics environments. The diode complies with RoHS directives and passes AEC-Q101 automotive standards, underlining its suitability for automotive and high-reliability applications.
The device's maximum Zener impedance of 20 Ω enables stable and predictable voltage regulation. It is primarily utilized in stabilizing voltage supplies, protecting components from voltage spikes, and clipping signals in electrical circuits.
The diode is a silicon planar Zener type designed for general-purpose use. Surface mount form factor allows for automated assembly processes. Pin configuration includes two pins ensuring straightforward PCB design compatibility.
Compliance with environmental and automotive standards assures quality and safety.
This Vishay ZMY33-GS08 Zener Diode is ideal for industrial electronics, automotive systems, telecommunications, and power management applications where precise voltage control is required.
Browse Vishay products and Zener Diode selections on EnvMart for more electronic component options.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 31 V, providing reliable voltage regulation for various applications.
This model supports a maximum power dissipation of 1 watt, ensuring efficient energy handling within compact layouts.
The operating temperature range extends from -55°C to 175°C, allowing it to function reliably in demanding environments.
The maximum reverse leakage current is capped at 25 µA, contributing to its reliability and energy efficiency.
This diode features a 2-pin configuration, facilitating straightforward integration into PCB designs.
The maximum Zener impedance is rated at 20 Ω, which enables stable and predictable voltage regulation.
It complies with RoHS standards and meets the AEC-Q101 automotive certification, ensuring quality and safety for various applications.
The diode is housed in a compact DO-213AB package, suitable for surface mounting in electronic circuits.
The test current for this diode is 25 mA, which is necessary for its operation in voltage regulation applications.
This model has a single diode configuration, designed for general-purpose Zener applications.
It is utilized in voltage stabilization, protecting components from voltage spikes, and clipping signals in electrical circuits.
The country of origin for this diode is China, as specified in the product details.
