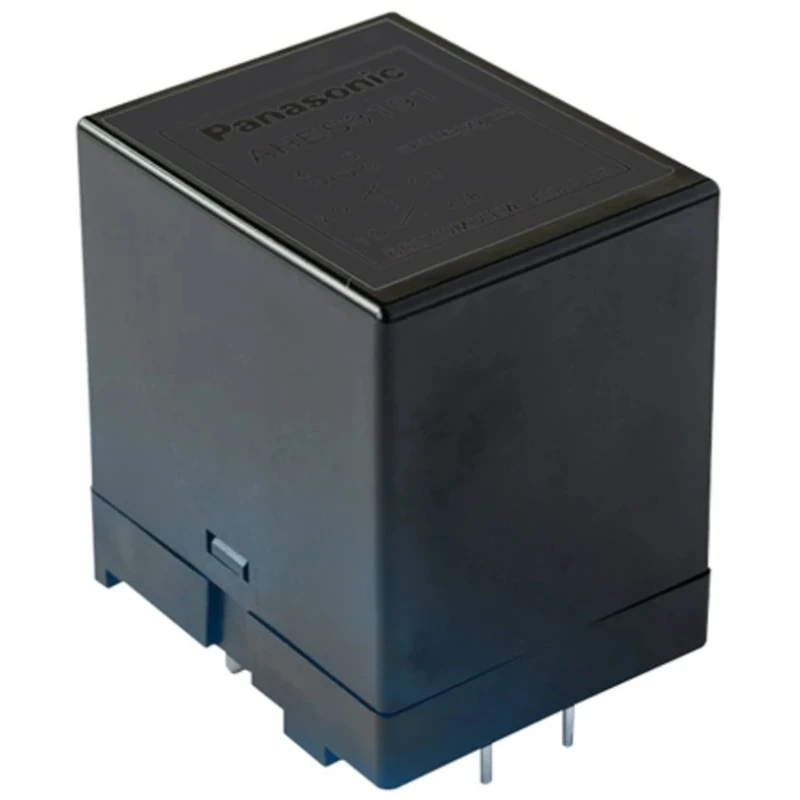

Panasonic Power Relay PCB Mount 12V DC Coil 35A Switching Current DPST AHES3191
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 40mm |
| Length | 30mm |
| Model | AHES3191 |
| Width | 36mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, VDE |
| Coil Resistance | 76.6Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 480V |
| Coil Power | 1.88W |
Key Features
- Compact PCB mounted power relay for industrial and energy management use.
- Features a 12V DC coil voltage for reliable actuation.
- Supports dual pole single throw (DPST) contact configuration.
- Capable of switching up to 35 amperes of current.
- Built with a silver alloy contact material to ensure durability and low resistance.
- Operates within a temperature range from -40°C to 85°C.
- Suitable for photovoltaic systems, UPS, inverters, and industrial equipment.
- Compliant with RoHS and VDE standards for quality assurance.
Product Description
Panasonic AHES3191 power relay is a PCB mount DPST relay designed for high reliability in demanding electrical applications. It features a 12V DC coil voltage and can switch currents up to 35A, making it ideal for energy management systems, photovoltaic power generation, uninterruptible power supplies (UPS), inverters, office air conditioning, and various industrial equipment.
This power relay belongs to the HE-S series known for compact size and robust performance even under stressful conditions. The relay utilizes silver alloy contacts, ensuring low contact resistance of 100mΩ and long operational life. Its coil resistance is 76.6 ohms with power consumption of 1.88 watts, allowing efficient energy use.
The relay supports switching of DC voltage up to 110V and AC voltage up to 480V, offering wide application flexibility. It operates reliably within a minimum temperature of -40°C and a maximum of 85°C.
Compact and robust PCB mount power relay. 12V DC coil voltage for effective relay control. DPST contact configuration suitable for dual circuit switching. High switching current capability of 35 amperes. Silver alloy contacts for dependable conductivity and longevity.
Wide operational temperature range applicable to diverse environments. Standards compliant: RoHS and VDE certified. Ideal for renewable energy systems, UPS, and industrial applications.
This Panasonic power relay is manufactured in Thailand and meets stringent quality standards, ensuring reliable operation in diverse electrical and industrial environments. It is an essential component for electronic designs requiring high current switching on printed circuit boards.
Discover the full range of premium Panasonic electronic components and Power Relays at EnvMart to enhance your industrial and automation projects with trusted performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay can switch currents up to 35 amperes, making it suitable for high-power applications.
The coil voltage for this relay is 12V DC, which allows for reliable actuation in various applications.
The relay measures 40mm in height, 30mm in length, and 36mm in width, making it compact for PCB mounting.
It features a dual pole single throw (DPST) contact configuration, allowing for dual circuit switching.
The relay is built with silver alloy contacts, which provide low resistance and enhance durability.
It operates within a temperature range from -40°C to 85°C, suitable for diverse environmental conditions.
The contact resistance is rated at 100mΩ, ensuring efficient conductivity during operation.
This relay can switch DC voltage up to 110V and AC voltage up to 480V, providing flexibility for various applications.
The coil resistance is 76.6 ohms, with a power consumption of 1.88 watts, allowing for efficient energy use.
Yes, it is compliant with RoHS and VDE standards, ensuring quality and safety in its applications.
This power relay is manufactured in Thailand, adhering to stringent quality standards.
It is suitable for use in photovoltaic systems, UPS, inverters, and various industrial equipment.
