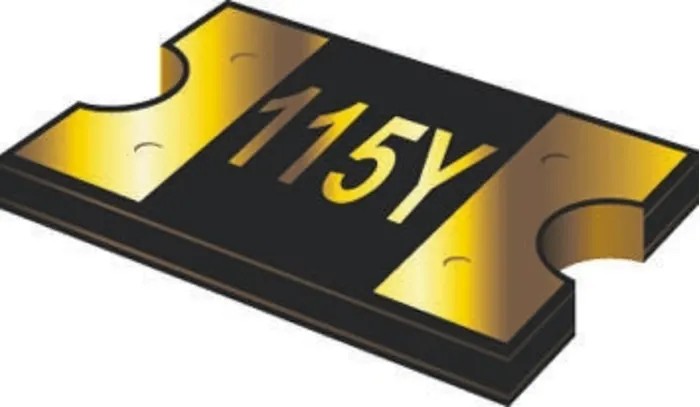

Bourns Resettable Fuse 6V 1.1A Hold Current, 2.2A Trip Current MF-MSMF110-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 4.73mm |
| Model | MF-MSMF110-2 |
| Width | 3.41mm |
| Current Rating | 100A |
| Series | MF-MSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1812 |
| Trip Current | 2.2A |
| Power Dissipation | 0.8W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.3s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 210mΩ |
Key Features
- Designed as a surface mount device compatible with automated assembly.
- Offers automatic reset function enabling thousands of cycle protections.
- Compliant with AEC-Q200 automotive stress test qualification standards.
- Equipped with electroless nickel immersion gold plated terminals for reliable connectivity.
- Compact 1812 reel package size suitable for space-constrained applications.
- Operating temperature range from -40°C to 85°C ensures stability under harsh conditions.
- Low resistance with minimum 0.04Ω and maximum 210mΩ values for efficient operation.
- Power dissipation rated at 0.8W supports moderate load demands.
Product Description
Bourns MF-MSMF110-2 resettable fuse is a 6V rated surface mount protective device designed to guard electrical and electronic circuits against overcurrent conditions.
This device rapidly transitions from low resistance to high resistance under fault conditions such as overload or short circuit, automatically resetting when power is removed from the circuit.
Its compliance with AEC-Q200 Rev-C standards ensures suitability for demanding automotive applications requiring stress testing and reliability. The fuse comes in a compact 1812 reel package with electroless nickel immersion gold plated terminals to facilitate solder reflow and reliable electrical contact.
Its robust operating temperature range from -40°C to 85°C ensures consistent performance across various industrial, automotive, and commercial environments. With a hold current of 1.1A and a trip current of 2.2A, it supports protection for power supplies, transformers, instrumentation, and telecommunications equipment.
Maintenance-free features eliminate the need for fuse holders, reducing assembly complexity and enabling space savings on PCB layouts. Surface mount technology allows automated assembly processes. Automatic resettable design provides thousands of protection cycles without replacement.
Compatible with Pb and Pb-free solder reflow profiles. Low resistance and controlled power dissipation minimize energy loss. Extensively used in security systems, automotive electronics, medical devices, and power switching applications.
This resettable fuse offers efficient circuit protection with industry-standard approvals including UL and RoHS compliance. Browse EnvMart’s range of electrical components and Resettable Fuses for quality assured industrial, automotive, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating is 1.1A, meaning it can continuously carry this current without tripping.
The trip current for the MF-MSMF110-2 is 2.2A, at which point the fuse will transition to a high resistance state to protect the circuit.
The operating temperature range is from -40°C to 85°C, allowing it to function in various environmental conditions.
This model has a height of 0.85mm, a length of 4.73mm, and a width of 3.41mm.
It comes in a compact 1812 reel package, suitable for automated assembly processes.
The terminals are made of electroless nickel immersion gold plated material, ensuring reliable connectivity.
The power dissipation rating is 0.8W, which supports moderate load demands in circuits.
Yes, it is compliant with UL and RoHS standards, as well as AEC-Q200 automotive stress test qualification standards.
The fuse automatically resets when the power is removed from the circuit after a fault condition, allowing for thousands of protection cycles without replacement.
The minimum resistance is 0.04Ω and the maximum resistance is 210mΩ, which contributes to efficient operation.
It is extensively used in security systems, automotive electronics, medical devices, and power switching applications.
The time to trip is 0.3 seconds, indicating how quickly it responds to overcurrent conditions.
