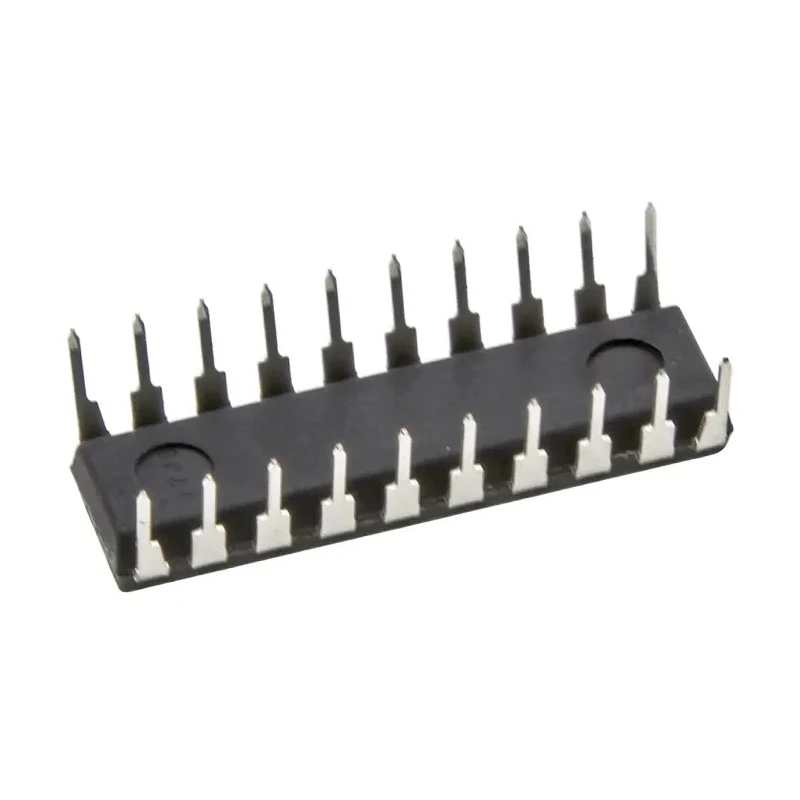

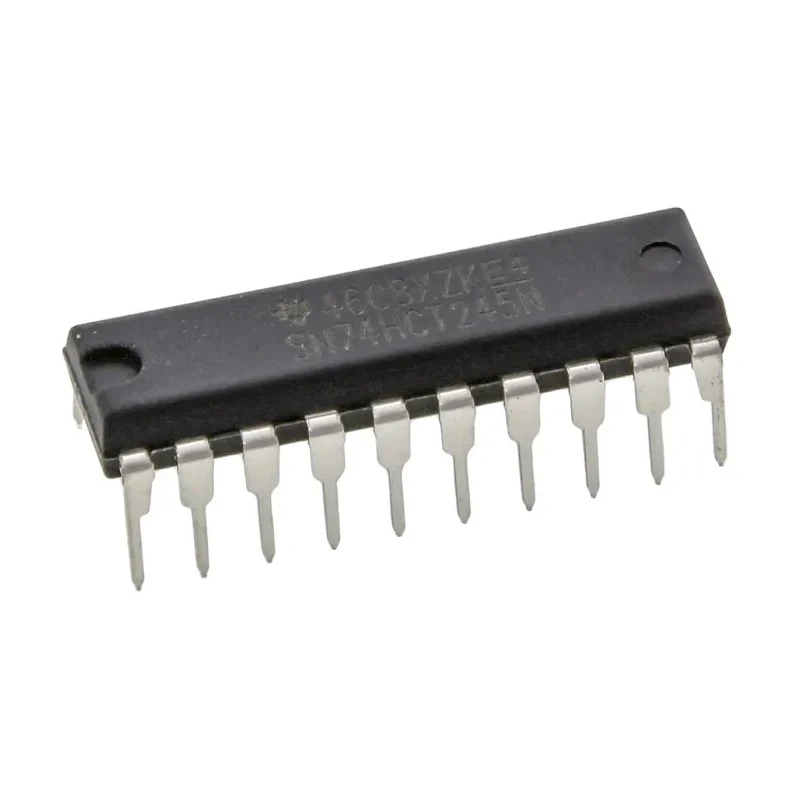

Texas Instruments 8-Bit Non-Inverting CMOS Bus Transceiver 20-Pin PDIP SN74HCT245N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 24.33mm |
| Model | SN74HCT245N |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Output type | 3 State |
| Series | SN74HCT245 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -6mA |
| Maximum Propagation Delay Time @ CL | 45ns |
| Maximum Low Level Output Current | 6mA |
| Output Level | CMOS |
| Input Level | TTL |
Key Features
- The transceiver features 8 non-inverting channels for bidirectional data communication.
- It operates with a voltage range of 4.5V to 5.5V supply.
- Designed with high-speed CMOS technology compatible with TTL input levels.
- Provides 3-state outputs to enable bus sharing and multiplexing.
- Maximum propagation delay time is 45 nanoseconds at a capacitive load.
- Operating temperature range spans from -40°C to 85°C for industrial applications.
- The device is packaged in a Through Hole 20-pin PDIP form factor.
- Output levels conform to CMOS logic standards with maximum output currents of ±6mA.
Product Description
Texas Instruments SN74HCT245N is an 8-bit non-inverting bus transceiver designed using high-speed CMOS technology, packaged in a 20-pin Through Hole PDIP. It operates within a supply voltage range of 4.5 to 5.5 volts and is compatible with TTL input levels, making it suitable for interfacing between various digital logic families. Its features include 3-state outputs that facilitate efficient bus sharing and switching for data communication systems.
The device supports industrial temperature ranges from -40°C to 85°C, ensuring reliable operation in demanding environments. With a maximum propagation delay of 45 nanoseconds, it delivers swift data handling essential for real-time processing and communication in embedded systems, industrial controls, and digital signal applications.
Key aspects such as non-inverting polarity and CMOS output levels with ±6mA output current capability allow seamless integration into electronic circuits requiring robust, low-power bus transceivers. Its 20-pin PDIP package simplifies design and assembly for through-hole PCB layouts commonly used in prototyping and industrial manufacturing.
This bus transceiver is widely utilized in electronics manufacturing, laboratory instrumentation, and embedded system development, providing multi-channel bidirectional data transfer with high speed and low power consumption properties.
The transceiver features 8 non-inverting channels for bidirectional data communication. It operates with a voltage range of 4.5V to 5.5V supply. Designed with high-speed CMOS technology compatible with TTL input levels. Provides 3-state outputs to enable bus sharing and multiplexing.
Maximum propagation delay time is 45 nanoseconds at a capacitive load. Operating temperature range spans from -40°C to 85°C for industrial applications. The device is packaged in a Through Hole 20-pin PDIP form factor. Output levels conform to CMOS logic standards with maximum output currents of ±6mA.
Explore more semiconductor Bus Transceivers and logic ICs in EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage supply range of 4.5V to 5.5V.
The maximum propagation delay time is 45 nanoseconds at a capacitive load.
It features 8 non-inverting channels for bidirectional data communication.
The operating temperature range spans from -40°C to 85°C, suitable for industrial applications.
It provides 3-state outputs, enabling bus sharing and multiplexing.
The device is packaged in a Through Hole 20-pin PDIP form factor.
It is compatible with TTL input levels and outputs CMOS logic levels.
The maximum output currents are ±6mA.
The height of this model is 4.57mm.
This bus transceiver has a length of 24.33mm.
It functions as a bus transceiver, facilitating data communication between different digital logic families.
The country of origin for this model is India.
