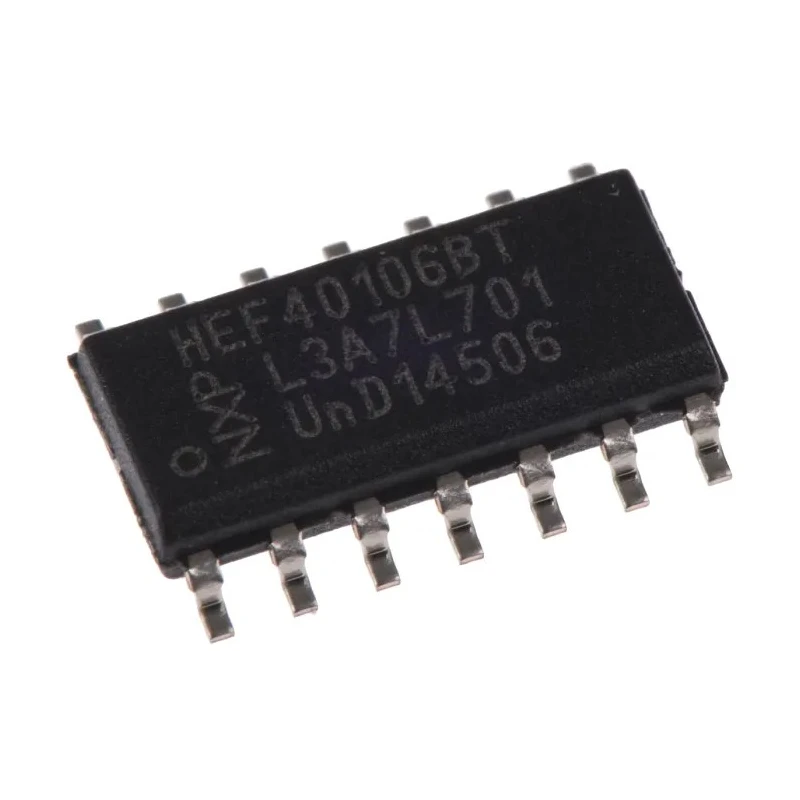

Nexperia Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC HEF40106BT

Nexperia HEF40106BT is a Schmitt Trigger Input Inverter featuring 6 inverter elements integrated into a 14-pin SOIC surface-mount package. This device is part of the 4000 CMOS logic family designed for high noise immunity and fast switching. It operates reliably within a voltage range of 3V to 15V, making it suitable for a variety of industrial, commercial, and laboratory electronic circuit designs.

The CMOS technology ensures low power consumption, while the Schmitt trigger inputs provide improved signal integrity by cleaning noisy digital signals. The maximum propagation delay time at standard capacitive load is 180 nanoseconds, offering prompt response in timing-critical circuits. Output current capabilities reach up to ±3.6mA ensuring adequate driving power for connected loads.

The compact SOIC package measures 8.75 mm in length, 4 mm in width, and 1.45 mm in height, facilitating easy mounting on printed circuit boards in automated manufacturing. The device supports operation across a wide temperature range from -40°C to 85°C, thus suitable for use in harsh environmental conditions frequently encountered in industrial and automotive testing environments.

This inverter IC is ideal for signal conditioning, waveform shaping, oscillators, and interface applications in electronic systems including automation controls, instrumentation, and embedded systems. Although not automotive certified, it remains a robust choice for general-purpose logic applications requiring Schmitt trigger characteristics.

Contains 6 inverter elements integrated in a 14-pin SOIC package. Operating voltage range from 3V to 15V ensuring versatile usage. Schmitt trigger inputs for improved noise immunity and clean switching. Propagation delay time is a maximum of 180 nanoseconds at standard load.

Maximum high and low-level output currents are -3.6mA and 3.6mA respectively. Surface mount device with dimensions 8.75 mm length, 4 mm width, and 1.45 mm height. Operating temperature range from -40°C to 85°C for industrial environments.

Part of the 4000 CMOS logic family providing low power consumption. Applications include signal conditioning, waveform shaping, oscillators, and interfaces. Explore more Inverter ICs and logic devices at EnvMart for industrial and electronics manufacturing requirements.
