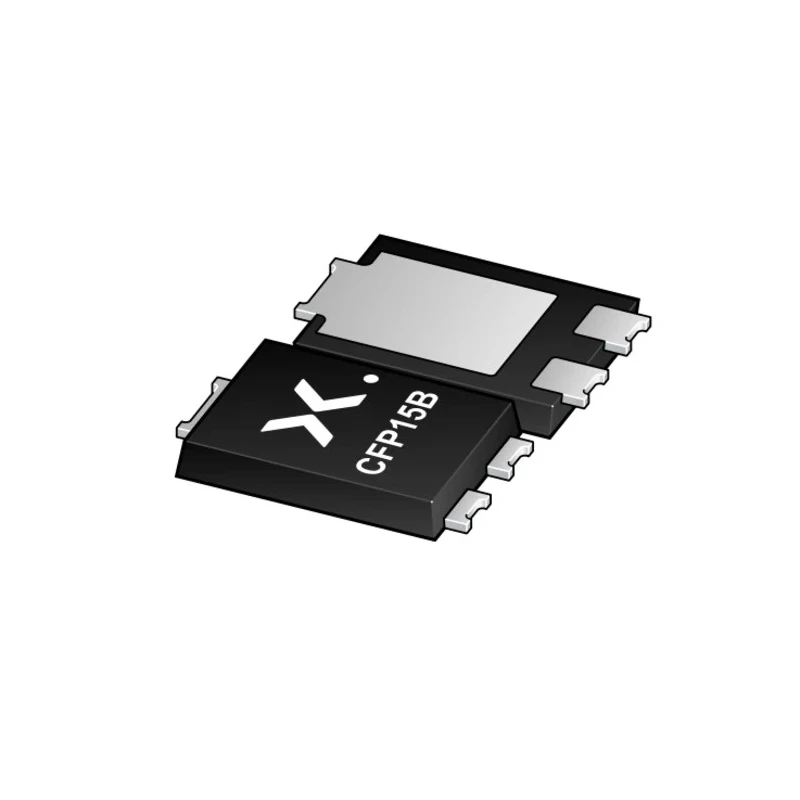

Nexperia 100 V 20 A Rectifier & Schottky Diode Schottky Barrier 3-Pin CFP15B PMEG100T200ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T200ELPEZ |
| Mount Type | Surface |
| Series | PMEG100T200ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 840mV |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- The diode features low forward voltage and low leakage current ensuring efficient performance.
- Peak non-repetitive forward surge current capability up to 260 A.
- High operating temperature range from -55°C to 175°C.
- Includes automotive standard AEC-Q101 qualification.
- Suitable for DC-to-DC conversion, LED lighting, and switch mode power supply applications.
- Compact flat lead surface mount design enables space saving on PCB.
- High efficiency Schottky barrier rectifier technology for fast switching.
- Low peak reverse current of 10 mA reduces power losses.
Product Description
Nexperia PMEG100T200ELPEZ rectifier & Schottky diode features a Schottky barrier design providing low forward voltage drop of 840 mV and low leakage current. Encapsulated in a CFP15B (SOT1289B) surface mount power plastic package, it supports a maximum continuous forward current of 20 A and a peak reverse voltage of 100 V, ensuring reliable performance in high power applications.
This diode is rated for a peak non-repetitive forward surge current up to 260 A and offers a fast peak reverse recovery time of 55 ns making it well suited for high-frequency switching circuits. Operating temperature range spans from -55°C up to 175°C, with automotive standard AEC-Q101 qualification, enhancing its reliability in automotive and industrial environments.
Typical industrial uses include DC-to-DC converters, LED lighting drivers, freewheeling diodes in switch mode power supplies, reverse polarity protection, and OR-ing diodes in power management systems. Its compact and flat lead surface mount package helps in space-saving PCB designs while maintaining high power capability due to clip-bonding technology.
Low forward voltage and leakage current improve efficiency. High peak surge current enables robust transient handling. Wide operating temperature range suitable for harsh conditions. Meets automotive reliability standards (AEC-Q101).
Ideal for industrial, automotive, and consumer electronics. Explore more Nexperia Schottky diodes and rectifiers at EnvMart for high quality semiconductor solutions suited for diverse industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 20 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
The operating temperature range spans from -55°C to 175°C.
It can handle a peak non-repetitive forward surge current of up to 260 A.
The diode is encapsulated in a CFP15B (SOT1289B) surface mount power plastic package.
The maximum forward voltage drop is 840 mV.
This model meets the automotive standard AEC-Q101 qualification.
The peak reverse recovery time is 55 ns.
It is suitable for applications such as DC-to-DC conversion, LED lighting, and switch mode power supplies.
The peak reverse current is rated at 10 mA.
This diode has a pin count of 3.
This model is classified as a Schottky barrier rectifier.
