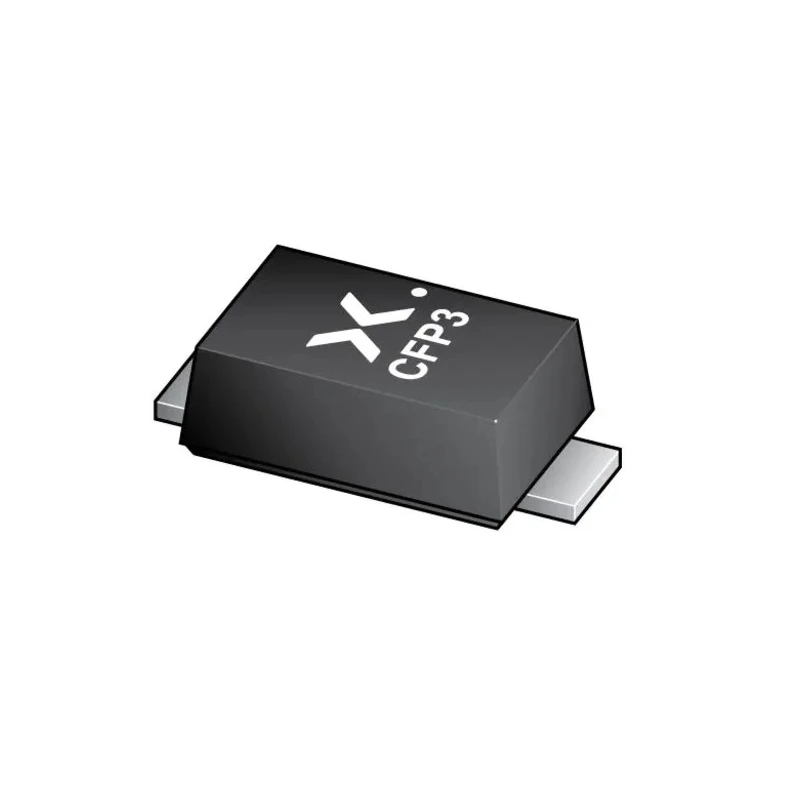

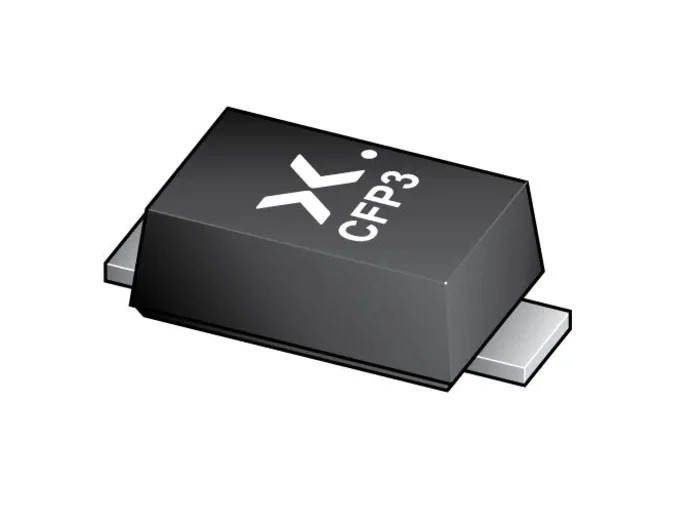

Nexperia 100 V 1 A Rectifier & Schottky Diode Trench MEGA Schottky 2-Pin SOD-123W PMEG100T10ELRX

Name: Nexperia 100 V 1 A Rectifier & Schottky Diode Trench MEGA Schottky 2-Pin SOD-123W PMEG100T10ELRX
Brand: Nexperia
SKU: 299903
Price: 0.15 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Model	PMEG100T10ELRX
Mount Type	Surface
Series	PMEG100T10ELR
Maximum Operating Temperature	175°C
Package Type	SOD-123W
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Trench MEGA Schottky
Peak Non-Repetitive Forward Surge Current Ifsm	40A
Maximum Forward Voltage Vf	750mV
Peak Reverse Recovery Time trr	11.5ns

Key Features

The diode features a low forward voltage of 750 mV for high efficiency.
It supports a maximum continuous forward current of 1 A.
The package is a compact 2-pin SOD-123W surface-mount design.
Operating temperature range is from -55°C to 175°C, suitable for harsh environments.
Peak non-repetitive forward surge current rating is 40 A for transient robustness.
Peak reverse repetitive voltage (VRRM) is 100 V for reliable blocking capability.
Fast reverse recovery time of 11.5 ns ensures low switching losses.
Trench MEGA Schottky technology provides low leakage current and high power capability.

Product Description

Nexperia PMEG100T10ELRX Rectifier & Schottky Diode is a high-efficiency trench MEGA Schottky barrier diode rated at 100 V and 1 A, encapsulated in a small and flat 2-pin SOD-123W surface-mount plastic package. Its low forward voltage drop and low leakage current make it an ideal choice for power rectification applications where reducing power dissipation is critical.

This diode supports continuous forward currents up to 1 A with a peak surge capability of 40 A, making it suitable for both steady-state and transient load conditions. With an extended operating temperature range from -55°C to 175°C, it is designed to operate reliably in industrial, automotive, and consumer electronics environments.

The PMEG100T10ELRX features a fast peak reverse recovery time of 11.5 ns, which reduces switching losses and enhances system efficiency in high-frequency power supplies such as switch mode power supplies (SMPS) and DC-DC converters.

The device is well-suited for applications including high-efficiency DC-to-DC conversion, LED lighting, freewheeling diodes, reverse polarity protection, and OR-ing circuits. Its high power capability is enabled by advanced clip-bonding technology.

Low forward voltage and leakage current for efficient power conversion. Compact 2-pin SOD-123W plastic surface mount package. Wide operating temperature range from -55°C to 175°C for robustness. Automotive compliant (AEC-Q101), suitable for vehicle electronics.

Fast reverse recovery time minimizes switching losses. High surge current capability ensures durability during transients. Explore our Electronics & Electricals category for additional high-quality semiconductor components suited for diverse design challenges.
