| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC143ZQC-QZ |
| Mount Type | Surface |
| Series | PDTC143Z |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

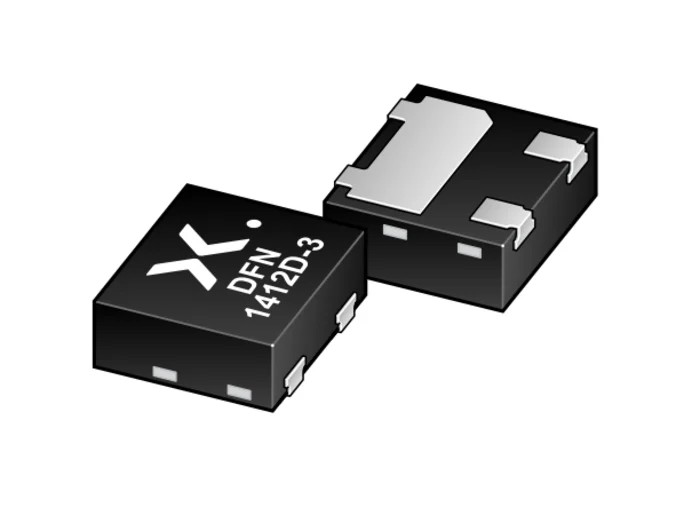

Nexperia PDTC143ZQC-QZ resistor-equipped transistor is a high-performance NPN bipolar transistor designed for efficient switching and amplification in compact digital electronics. It supports a maximum DC collector current of 100 mA and withstands collector-emitter voltage up to 50 V. Packaged in a small 3-pin DFN1412D-3 surface mount device, it is optimized for minimizing board space and enhancing automated assembly processes.
The incorporation of built-in resistors within this device reduces component count and simplifies circuit layout. It maintains a minimum DC current gain (hFE) of 100, providing dependable signal amplification across diverse applications. The transistor can operate in extreme temperature conditions ranging from -55°C up to 150°C, ensuring stability in industrial, automotive, and consumer electronic environments.
This component complies with RoHS standards and meets the stringent AEC-Q101 automotive qualification, making it suitable for automotive and high-reliability designs. Its low package height of 0.5 mm facilitates automatic optical inspection (AOI) of solder joints, improving manufacturing quality control.
Ideal use cases include controlling integrated circuit inputs, switching loads in digital circuits, and serving as a cost-effective alternative to similar transistor families like BC857. The compact design enables integration in dense PCBs for consumer electronics, automotive systems, and industrial equipment.
This transistor features built-in resistors that simplify circuit design. It has a maximum DC collector current of 100 mA and collector-emitter voltage of 50 V. Suitable for surface mount applications with a low-profile DFN1412D-3 plastic package.
Provides a minimum DC current gain (hFE) of 100 for reliable amplification. Supports operation across a wide temperature range from -55°C to 150°C. Meets RoHS compliance and AEC-Q101 automotive standards. Effective for controlling IC inputs and switching loads in digital electronic circuits.
Low package height of 0.5 mm enhances automatic optical inspection compatibility.
