Nexperia Schmitt Trigger Inverter Logic IC CMOS 0.8V - 3.6V 4ns Propagation Delay 3 Elements 74AUP1G14GX4-Q100Z

Nexperia 74AUP1G14GX4-Q100Z Schmitt Trigger Inverter Logic IC is a high-performance semiconductor device designed for low power consumption and wide operating voltage range. This device incorporates 3 independent Schmitt trigger inverter elements with CMOS technology, ensuring very low static and dynamic power dissipation across the entire supply voltage range from 0.8 V to 3.6 V.

The product features a maximum propagation delay time of 4 ns at load capacitance, enabling fast signal processing in digital circuits. It also offers high noise immunity and overvoltage tolerant inputs up to 3.6 V, ensuring robust operation in electrically noisy environments. The built-in IOFF circuitry supports partial power-down applications by disabling outputs to prevent backflow current damage during power-off states.

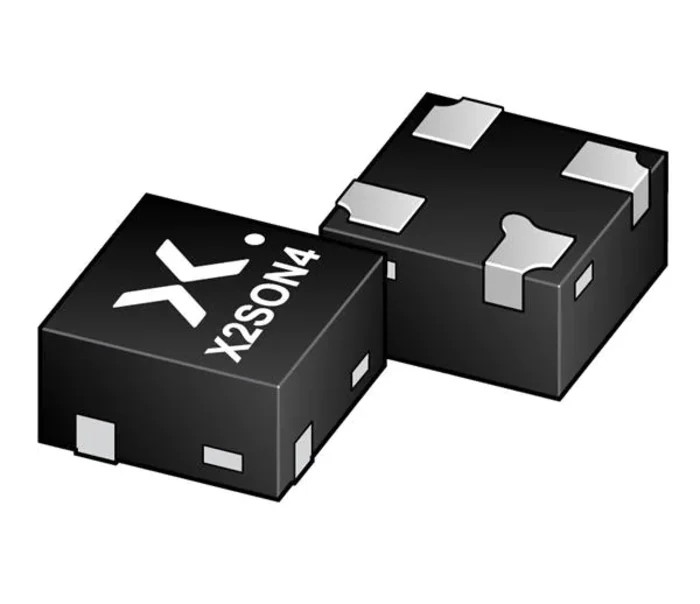

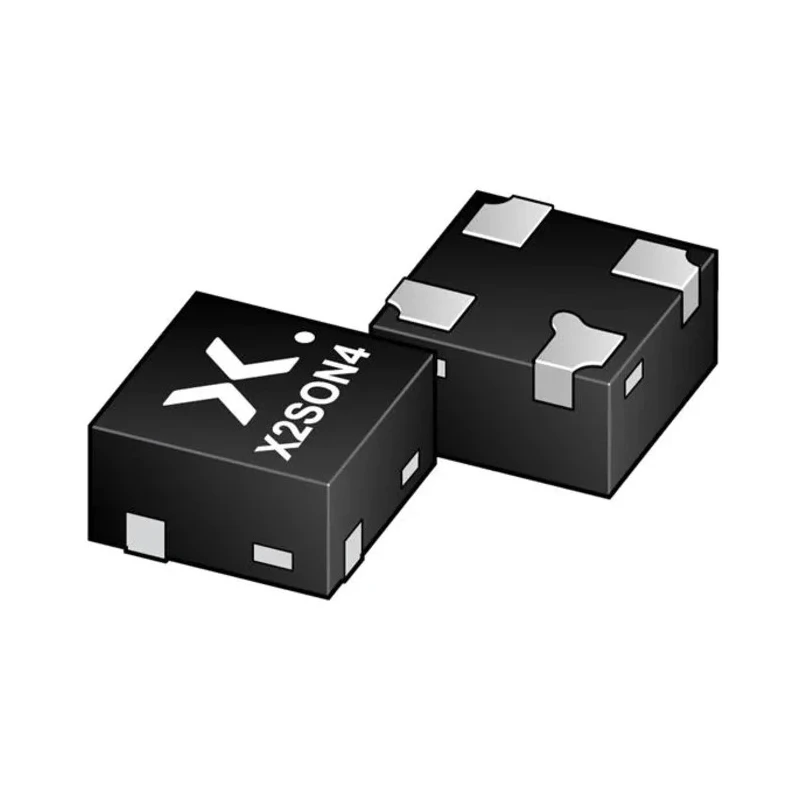

This logic IC is implemented in a surface-mount package with compact dimensions measuring 650 μm by 650 μm in length and width, and 350 μm in height, making it suitable for high-density PCB layouts. Its operating temperature range from -55°C up to 125°C ensures reliable functioning under harsh industrial and automotive ambient conditions, although it is not specifically rated as automotive standard compliant.

The chip complies with RoHS and JEDEC standards, affirming its environmental and quality certifications. Typical applications include wave and pulse shaping, astable and monostable multivibrators, and digital signal processing circuits in industrial, electronic, and manufacturing systems.

Integrates 3 Schmitt trigger inverter elements for efficient logic processing. Wide supply voltage range from 0.8 V to 3.6 V with low static current draw. Maximum propagation delay of 4 ns supports high-speed digital applications.

IOFF circuitry provides safe partial power-down operation. Compact surface-mount package suitable for dense PCB designs. High noise immunity and overvoltage tolerance for robust performance. Standard compliance with RoHS and JEDEC ensures quality and environment safety.

Temperature range of -55°C to 125°C for demanding operational conditions.

This Nexperia 74AUP1G14GX4-Q100Z Schmitt Trigger Inverter IC is ideal for use in electronic and industrial automation systems, signal conditioning, and logic integration tasks. Discover more inverters and logic ICs at EnvMart for your semiconductor sourcing needs.
