Tektronix 2 Series MSO Ultra Compact 2 Channel Oscilloscope 350 MHz Bandwidth MSO22 2-BW-350

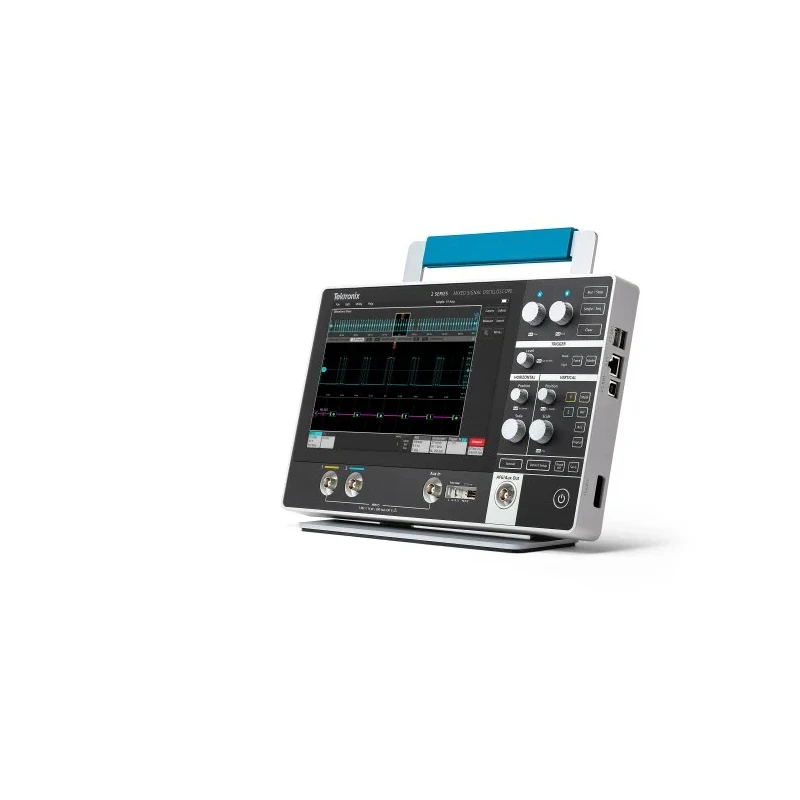

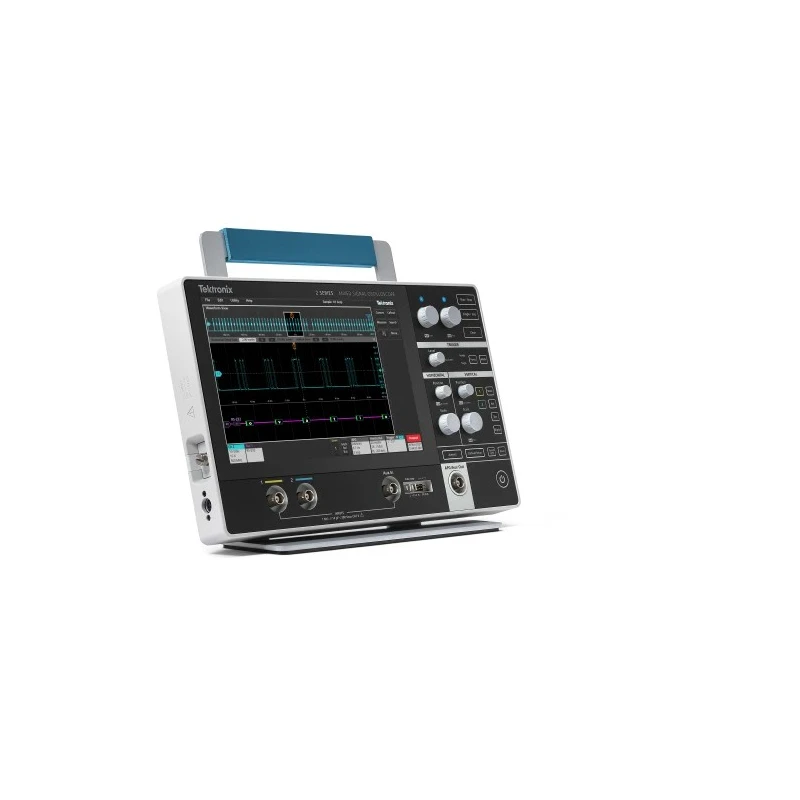

Tektronix MSO22 2-BW-350 ultra compact oscilloscope from the 2 Series MSO family integrates 350 MHz bandwidth with 2 analog channels and optional 16 digital channels for mixed signal applications. Featuring a 10.1-inch capacitive touch display, this oscilloscope is designed for intuitive user interaction and efficient debugging in electronics test environments.

The device supports multiple communication interface protocols including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, making it adaptable to various test scenarios in industrial, laboratory, manufacturing, and automotive fields.

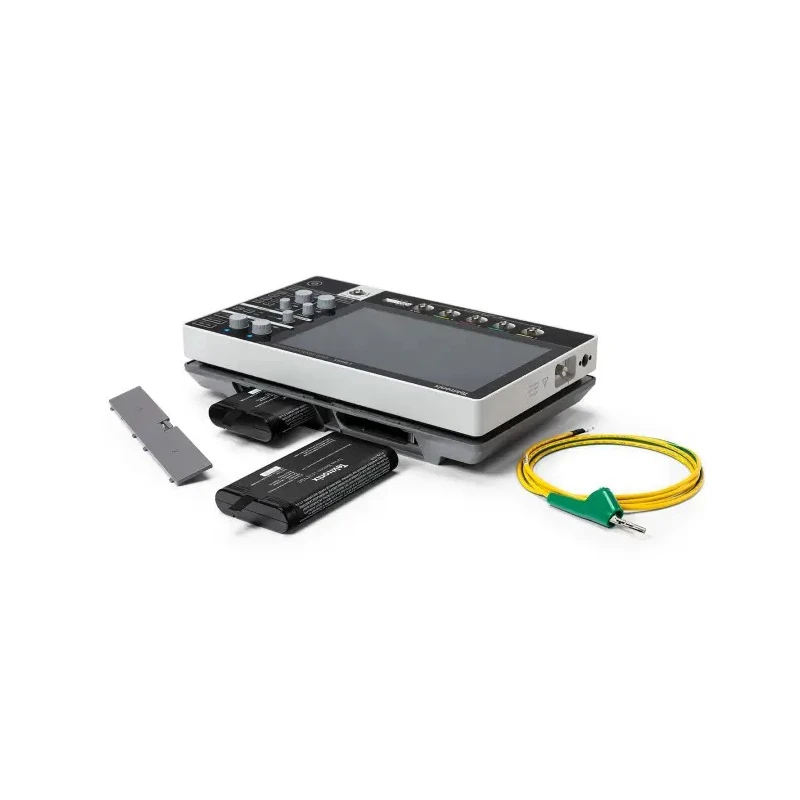

Compact dimensions of 210 mm height, 344 mm width, and 40.4 mm depth, combined with a lightweight design (1.8 kg instrument only), allow easy portability. The optional lithium-ion battery pack supports hot-swappable batteries providing up to 8 hours of continuous operation for field testing.

Robust safety certifications include CE, RoHS, and UL with a safety category rating of CAT II ensuring compliance with industrial safety standards. The oscilloscope also features built-in VNC server capability, allowing remote viewing and control from PCs, tablets, or smartphones.

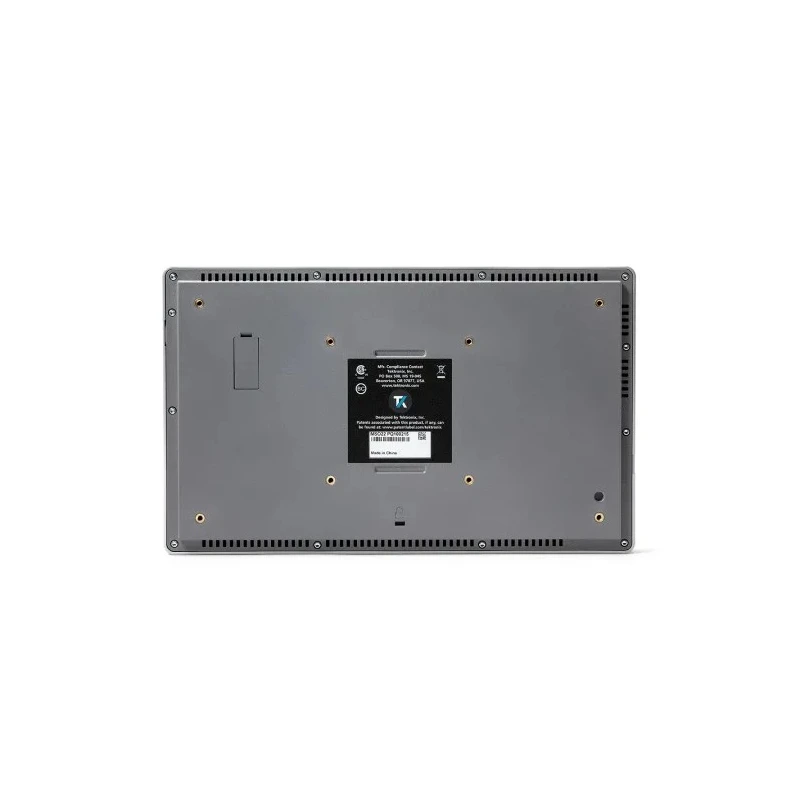

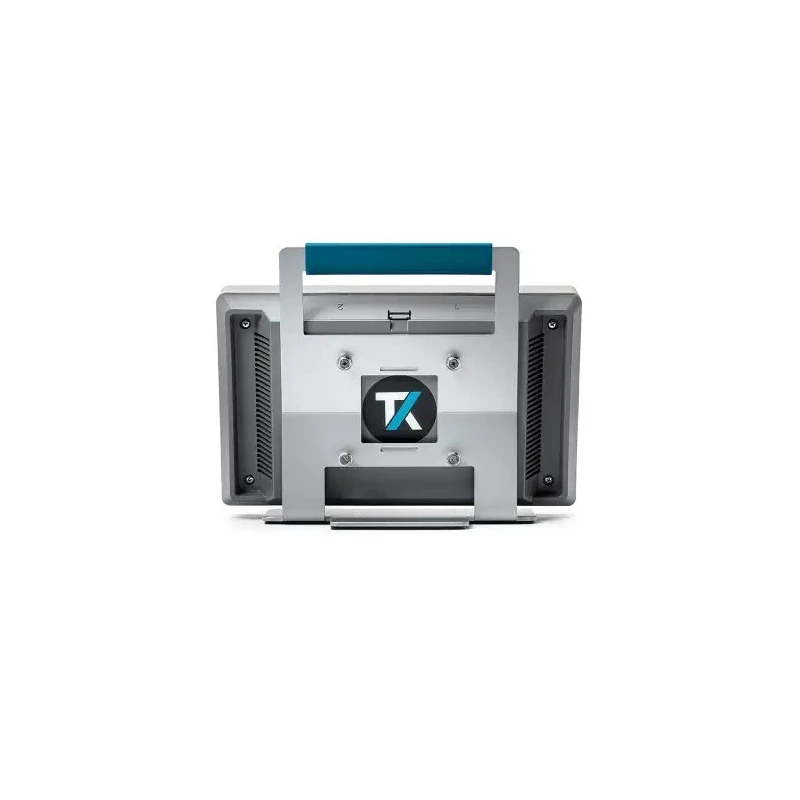

This oscilloscope supports VESA mounting to optimize bench space and accessories management. The package includes TPP0200 200 MHz, 10x probes for each channel, an instrument stand, external power supply, embedded help system, installation and safety manuals in multiple languages, and a calibration certificate traceable to national metrology institutes.

350 MHz analog bandwidth for high-fidelity signal measurement. Mixed signal capability with 2 analog and optional 16 digital channels. 10.1-inch capacitive touchscreen with a user-friendly interface. Battery operation with hot-swappable lithium-ion packs for extended field use.

Compactness and lightweight design for portability and space efficiency. Extensive protocol support for versatile testing applications. High safety standards with CAT II rating and multiple certifications. VESA mount compatibility for flexible installation.

Built-in VNC server for remote operation and control. Complete set includes probes, stand, power supply, manuals, and calibration certificate.

Ideal for industrial, laboratory, manufacturing, automotive testing, and educational applications. Explore EnvMart’s full range of Tektronix Oscilloscopes and accessories for comprehensive electronic measurement solutions.
