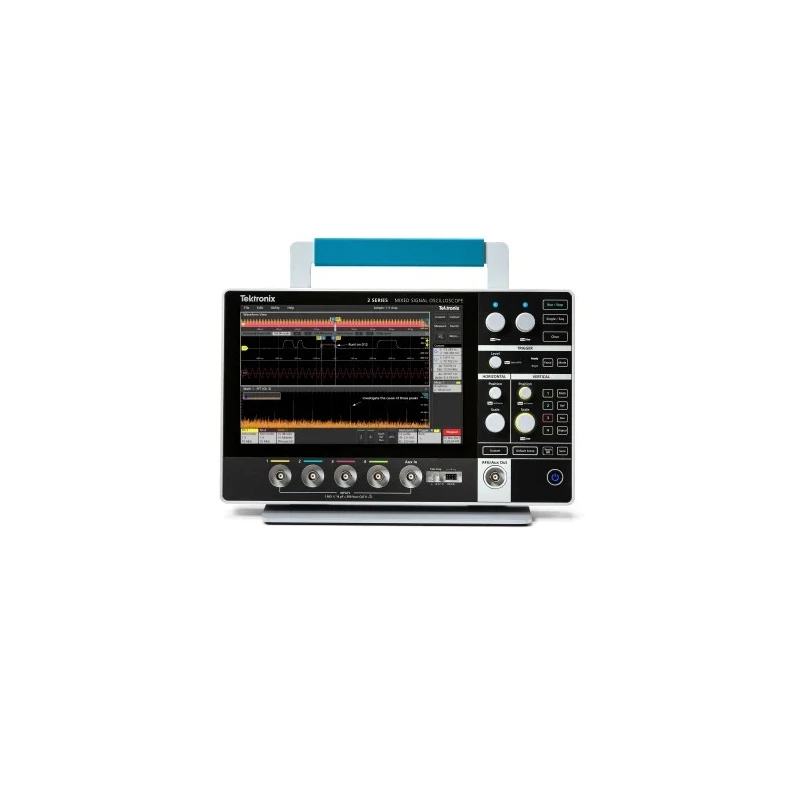

Tektronix 2 Series MSO Series 500 MHz Ultra Compact Mixed Signal Oscilloscope 4 Channels MSO24 2-BW-500

Tektronix MSO24 2-BW-500 is a 2 Series Mixed Signal Oscilloscope designed for professional electronic debug and test applications. This ultra compact, mixed signal instrument features a 500 MHz bandwidth, four analog channels, and a maximum sample rate of 2.5 GS/s. The 10.1 inch capacitive touchscreen offers an award-winning intuitive user interface designed specifically for touch operation, simplifying access to functions and measurements.

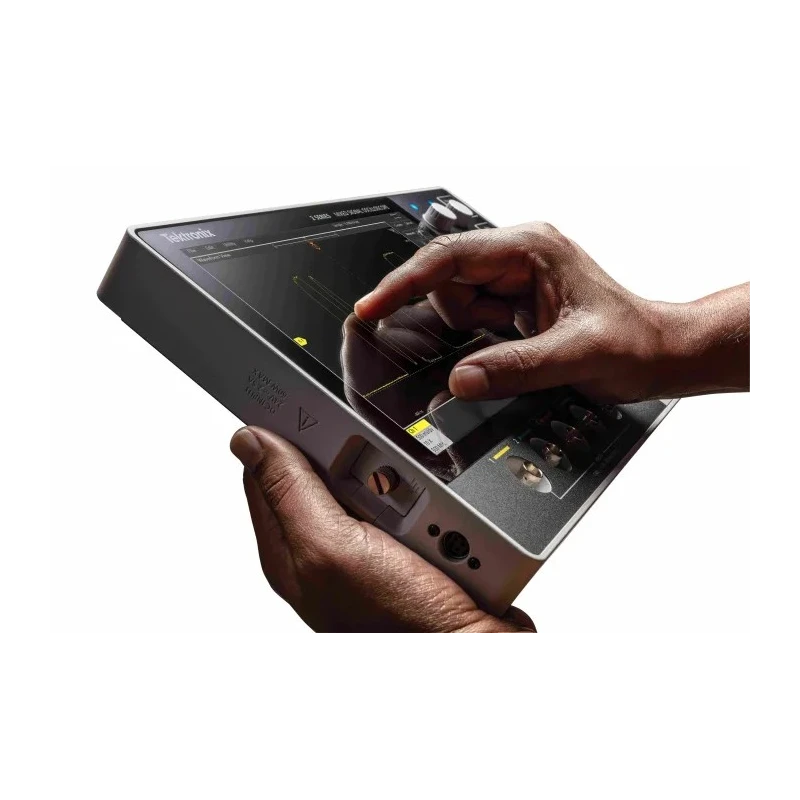

With a slim 40.4 mm thickness and light weight of 1.8 kg, the instrument is highly portable. Optional battery packs provide up to eight hours of unplugged testing, enabling flexible use in the field or on the bench. The oscilloscope offers mixed signal capabilities including 16 digital channels, with support for serial protocols such as CAN, CAN FD, I2C, SPI, UART, USB, LAN, and LIN. This makes it suitable for complex industrial, automotive, embedded systems, manufacturing, and research applications.

The instrument is VESA mount compatible, allowing easy integration into workspace setups and saving critical bench space. It comes complete with one TPP0200 200 MHz 10x probe per channel, instrument stand, external power supply, and embedded help documentation. The package includes a calibration certificate traceable to National Metrology Institutes and features RoHS, CE, and UL safety certifications.

Advanced optional features include 16 digital channels for logic analysis, 50 MHz arbitrary function generator, 4-bit digital pattern generator, protocol decode, advanced triggering, digital voltmeter, and frequency counter capabilities. The built-in VNC server enables remote oscilloscope viewing and control from PC, tablet, or phone, enhancing collaborative testing and diagnostics.

Produced in China, the MSO24 2-BW-500 embodies Tektronix's reputation for highly capable, versatile, and portable test instruments. Its compact form factor and extensive feature set meet the demanding needs of industrial, laboratory, construction, manufacturing, HVAC, and electronic R&D environments.

Set contents include the oscilloscope with four analog channels, one TPP0200 200 MHz 10x probe per channel, instrument stand, external power supply, embedded help, installation and safety manuals in multiple languages, calibration certificate, and one-year warranty covering parts and labor for the instrument and probes.

Compact and lightweight for bench and field use. 500 MHz bandwidth with 2.5 GS/s sampling rate. Four analog and optional sixteen digital channel capability. Supports multiple serial protocols for embedded system debugging.

VESA mount compatibility for space-saving setups. Intuitive 10.1-inch capacitive touchscreen interface. Optional battery packs for extended untethered operation. Remote control via built-in VNC server. Comprehensive accessory kit and calibration certificate included.

Safety certified and RoHS compliant for quality assurance. For advanced electronic testing and measurement, explore more products in the Oscilloscope category by Tektronix at EnvMart.
