| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54LS-QYL |
| Mount Type | Surface |
| Series | BAT54LS-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

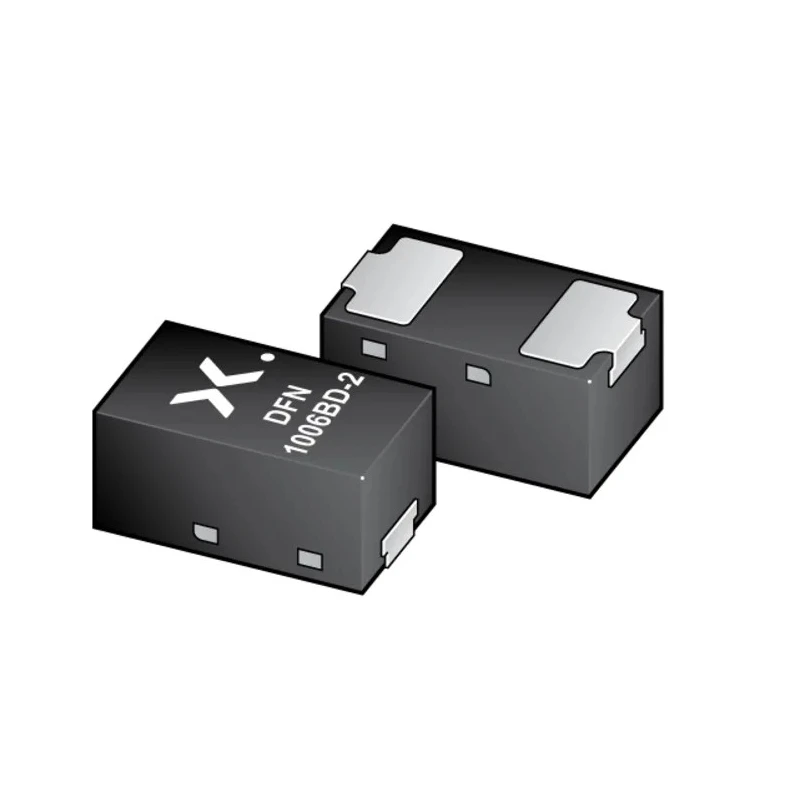

The Nexperia BAT54LS-QYL is a high-performance Schottky barrier diode designed for efficient rectification and switching in electronic circuits. Packaged in a leadless ultra-small DFN1006BD-2 plastic surface-mount device, it provides excellent thermal and electrical characteristics in a miniaturized footprint.
With a maximum continuous forward current rating of 200 mA and a peak reverse repetitive voltage of 30 V, this diode ensures reliable operation in power-sensitive applications. Its low forward voltage of 380 mV helps reduce power loss and improve overall efficiency.
Operating over a broad temperature range from -55°C to 150°C, the BAT54LS-QYL is suitable for harsh environments including automotive applications. It complies with the AEC-Q101 automotive standard, highlighting its suitability for demanding industry requirements.
The package features side-wettable flanks for enhanced solder joint inspection via Automatic Optical Inspection (AOI), lowering defects and improving manufacturing quality. Its low capacitance and minimal package height of 0.5 mm enable use in compact electronic assemblies.
As a leadless surface mount diode, it supports automated PCB assembly processes and is RoHS compliant, aligning with environmental regulations. Nexperia's BAT54LS-QYL is ideal for use in power management, voltage clamping, and fast switching in industrial, automotive, and consumer electronics.
The diode features a maximum continuous forward current of 200 mA. It supports a peak reverse repetitive voltage of 30 V for reliable operation. Low forward voltage of 380 mV improves circuit efficiency. Operates over a temperature range from -55°C to 150°C suitable for automotive and industrial use.
Qualifies to the automotive AEC-Q101 standard for robust performance. Package includes leadless ultra-small SMD plastic with side-wettable flanks for automated assembly. Low capacitance and package height of 0.5 mm enhance space-constrained circuit designs.
Suitable for Automatic Optical Inspection (AOI) for quality solder joints. RoHS compliant, meeting environmental standards.
Explore the wide range of semiconductors available at EnvMart to find efficient and reliable components like the Nexperia BAT54LS-QYL Schottky diode for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
