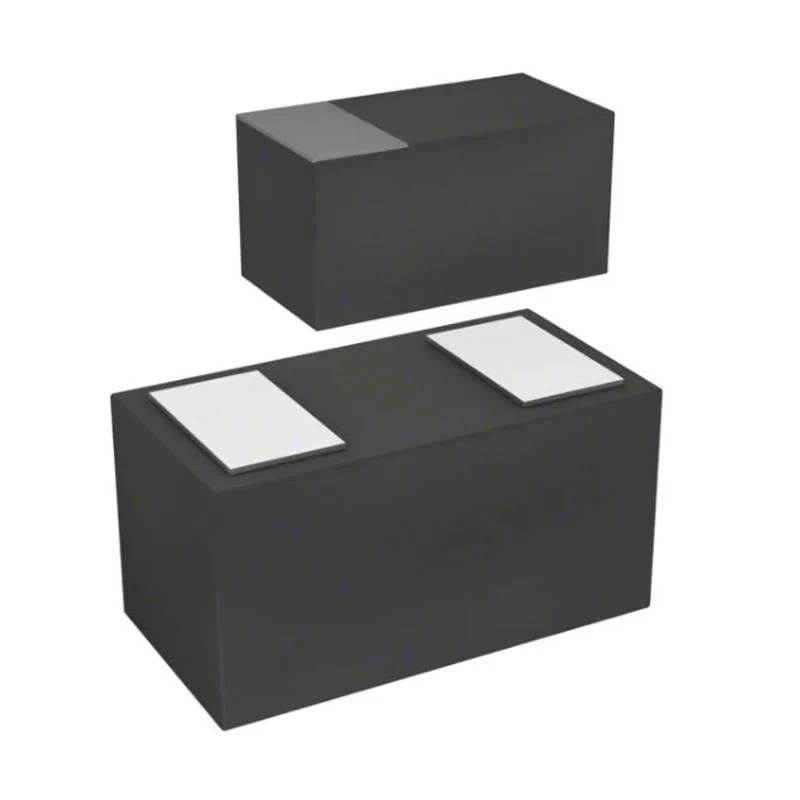

STMicroelectronics 30 V 300 mA Schottky Diode PCB Mount Type 0201 Package BAT30F4

STMicroelectronics BAT30F4 Schottky Diode is a compact semiconductor device designed for protecting integrated circuits especially in smartphones and electronic devices where efficient low voltage drop protection is essential. The 0201 package type makes it suitable for surface-mount PCB assembly with minimal space usage. It supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 30 V, making it ideal for low power rail-to-rail protection applications.

The diode exhibits a low maximum forward voltage of 0.64 V, resulting in very low conduction losses which enhances overall efficiency in the circuit. It can reliably operate over a wide temperature range from -40°C to 105°C ensuring durability in demanding environments. The device is also rated for a peak non-repetitive forward surge current of 4 A, securing the device and connected circuitry against transient surges.

With RoHS compliance, the BAT30F4 ensures environmentally friendly manufacturing standards. Its low capacitance and negligible switching losses make it a superior choice for high-frequency switching and protection circuits in industrial, consumer electronics, and mobile communication equipment.

Compact 0201 package for PCB mounting with minimal footprint. Maximum continuous forward current of 300 mA supports low power applications. Peak reverse voltage of 30 V protects circuits under low voltage conditions. Low forward voltage of 0.64 V reduces energy losses.

Wide operating temperature range from -40°C to 105°C ensures reliability. Capable of handling 4 A surge currents to protect against transients. RoHS certified for environmental compliance. Negligible switching losses optimize switching efficiency.

Low capacitance design suits high-frequency applications. Ideal for smartphone IC rail-to-rail protection and embedded electronics. Explore the STMicroelectronics product range and other semiconductor components at EnvMart for your industrial and electronic design needs.
