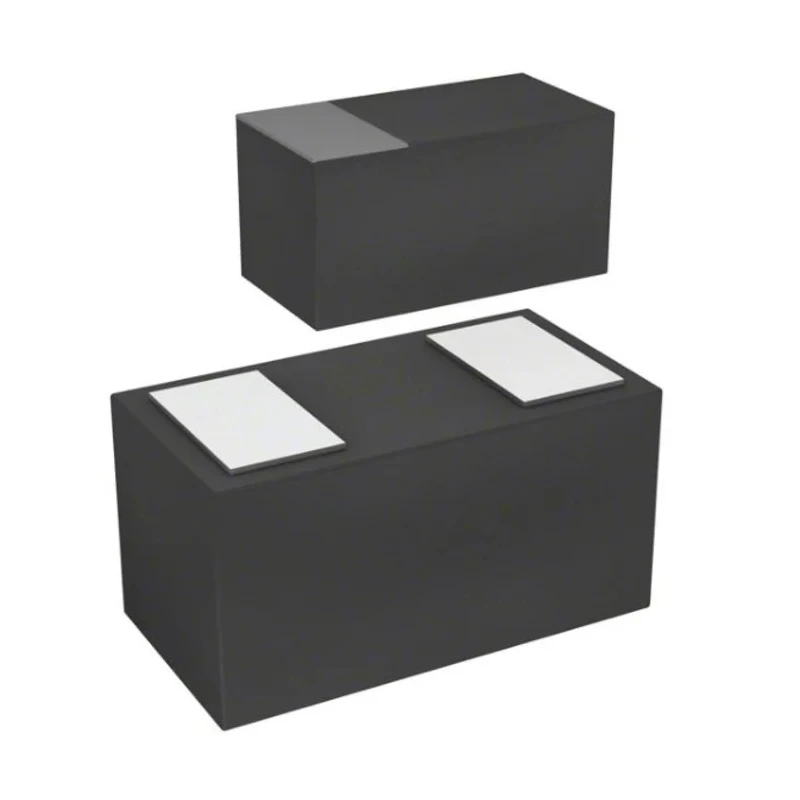

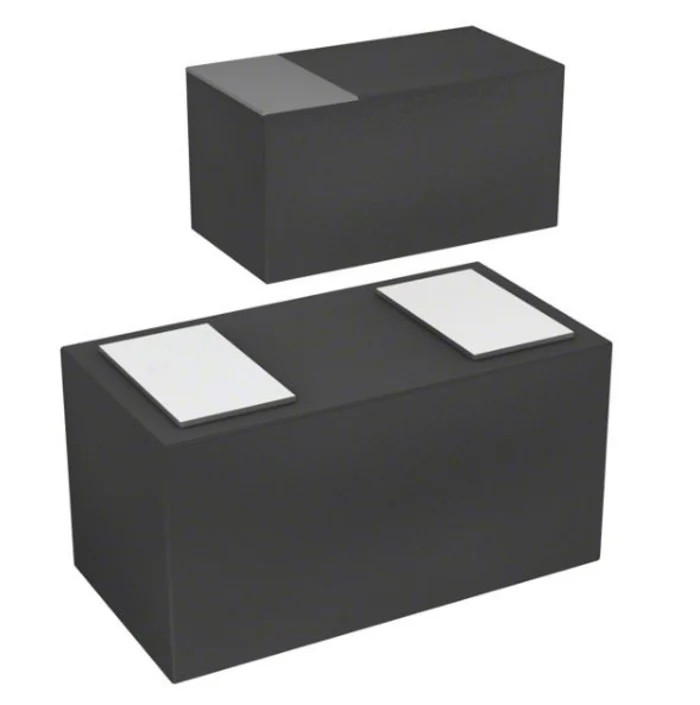

STMicroelectronics 30 V 300 mA Schottky Diode PCB Mount 0201 Package BAT30F4

STMicroelectronics BAT30F4 Schottky Diode is a highly efficient discrete semiconductor diode designed for use in electronic circuits requiring low forward voltage drops and fast switching.

This diode features a maximum continuous forward current of 300 mA and can withstand a peak reverse repetitive voltage of 30 V, making it suitable for protection tasks in power-sensitive applications.

Encased in a compact 0201 package, the device is designed for PCB mounting, enabling space-saving layouts especially in high-density electronic assemblies such as smartphones.

The BAT30F4 exhibits a low forward voltage of 0.64 V, reducing conduction losses and enhancing overall circuit efficiency. It supports a wide ambient temperature range from -40°C to 105°C, ensuring stable performance under varied environmental conditions.

This Schottky Diode can also handle a peak non-repetitive forward surge current of 4 A, giving it robustness against transient overloads. Maximum continuous forward current: 300 mA. Peak reverse repetitive voltage: 30 V.

Maximum forward voltage: 0.64 V. Operating temperature range: -40°C to 105°C. Peak non-repetitive forward surge current: 4 A. Package type: 0201, suitable for PCB mounting. RoHS compliant ensuring environmental compatibility.

Ideal for rail-to-rail protection in mobile and consumer electronics. Low capacitance and negligible switching losses.

These features make the BAT30F4 an optimal choice for semiconductor protection in smartphones, tablets, and other compact electronic devices where efficiency and size are critical.

Utilize the STMicroelectronics range to ensure durability and performance in your industrial, consumer electronics, and telecommunications applications. Explore more semiconductor solutions and electronic components at EnvMart to complete your design requirements effectively.
