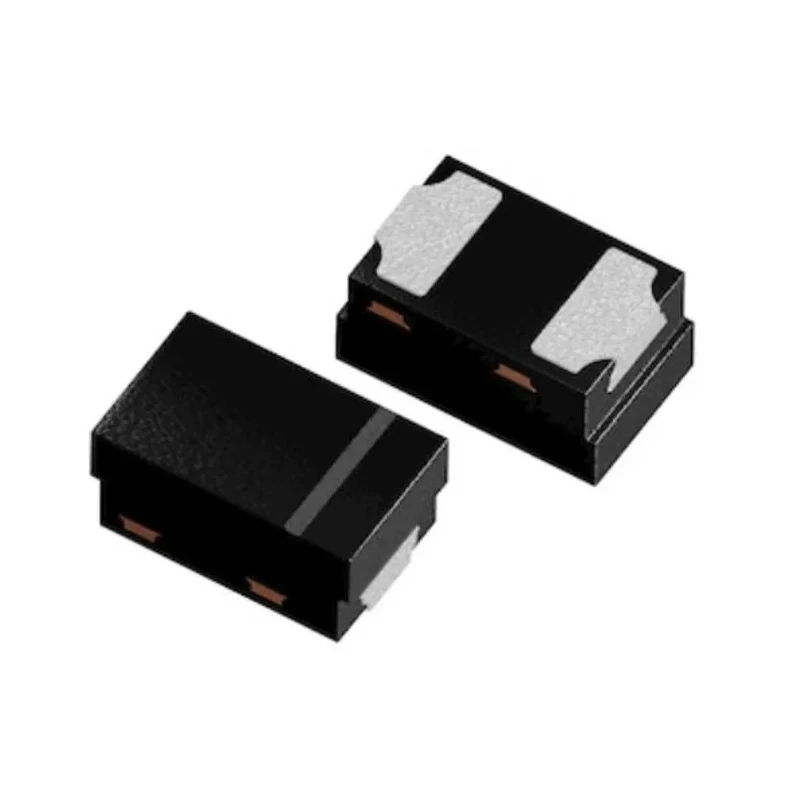

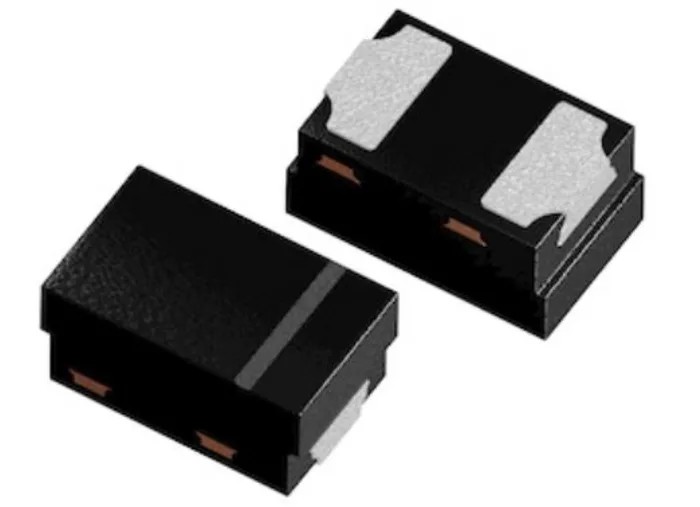

Vishay Small Signal Surface Mount Zener Diode 11 V 300 mW 2-Pin DFN BZX884B11L-HG3-08

Vishay BZX884B11L-HG3-08 is a high-quality small signal zener diode designed for surface mount applications, providing stable voltage regulation with a nominal zener voltage of 11 V and power dissipation of 300 mW. It features a compact DFN package with 2 pins and low noise characteristics, making it suitable for automotive and industrial electronics.

This silicon planar zener diode is engineered for excellent stability and low leakage current (maximum 100 nA), ensuring precision voltage clamping in sensitive circuits. The device operates reliably over a broad temperature range from -55°C to 150°C, meeting demanding requirements in harsh environments.

The diode supports a test current of 5 mA and adheres to RoHS compliance and the automotive standard AEC-Q101, making it an ideal component for automotive and industrial electronic designs. Its plastic package also features visible, sidewall plated wettable flanks that allow solder joint inspection through standard visual techniques, eliminating the need for X-ray inspection for automotive AOI requirements.

Applications include voltage regulation, surge protection, clamping circuits, and noise filtering in industrial, automotive, and consumer electronics sectors. The compact form factor and robust specifications support use in modern PCB assemblies and electronic devices requiring precision voltage management.

Nominal Zener voltage is 11 volts with 2% tolerance for accurate voltage clipping. Designed as a single diode configuration suitable for reliable electronic protection. Surface mount type with a low profile DFN package for compact circuit integration.

Maximum power dissipation rating of 300 mW ensures safe operation under load. Pin count is 2 with a length of 1 mm and height of 0.45 mm for minimal PCB footprint. Low maximum reverse leakage current of 100 nA supports low noise signal environments.

Wide operating temperature range from -55°C to 150°C supports demanding applications. Compliant with RoHS and automotive standard AEC-Q101, ensuring quality and environmental safety. Plastic package with plated wettable flanks allows visual solder inspection for quality assurance.
