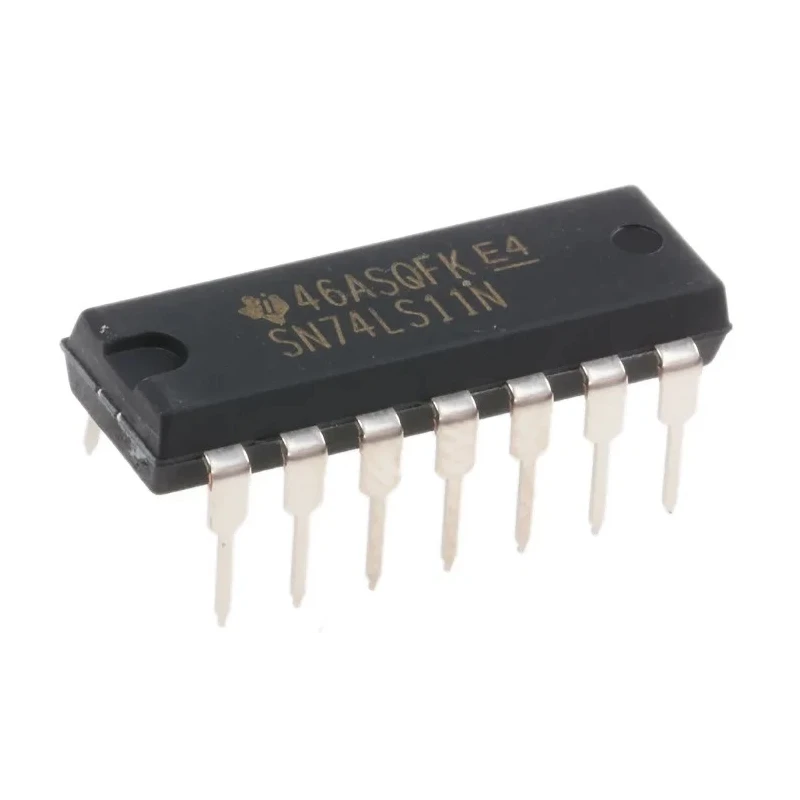

Texas Instruments 3 3-Input AND Logic Gate, 14-Pin PDIP SN74LS11N

Texas Instruments SN74LS11N is a 3 3-input AND logic gate integrated circuit housed in a 14-pin PDIP (Plastic Dual In-line Package). It is designed for through-hole mounting and suitable for use in various electronic and semiconductor applications requiring reliable logic gate functions.

This IC is part of the 74LS family of low-power Schottky logic circuits that use bipolar junction technology coupled with Schottky diode clamps to achieve high speeds with low power consumption. The device contains three independent AND gates each with three inputs, allowing complex logic decisions.

The SN74LS11N operates between 4.75V and 5.25V supply voltage with an operating temperature range of 0 to 70 degrees Celsius. It features a maximum propagation delay time of 7.5 ns under standard load conditions, suitable for medium-speed digital circuits.

The package has 14 pins, offering straightforward integration into printed circuit board assemblies via through-hole mounting. The maximum high-level output current is -0.4 mA and the maximum low-level output current is 8 mA, consistent with LS logic family standards.

Contains 3 x 3-input AND gates in one IC. Low power consumption with fast switching due to Schottky diode technology. Wide operating voltage range supports standard TTL logic levels. Standard 14-pin PDIP package for easy PCB design and prototyping.

Suitable for applications in electronic components, embedded systems, and digital logic circuits. Operating temperature ensuring reliable performance in typical industrial environments. Compatible with other 74LS series logic ICs for versatile circuit design.

This product is ideal for industrial, laboratory, manufacturing, and electronics prototyping environments where Logic Gate functionality is required. Its standard packaging and well-known characteristics make it widely used across many electronic designs and educational projects.
