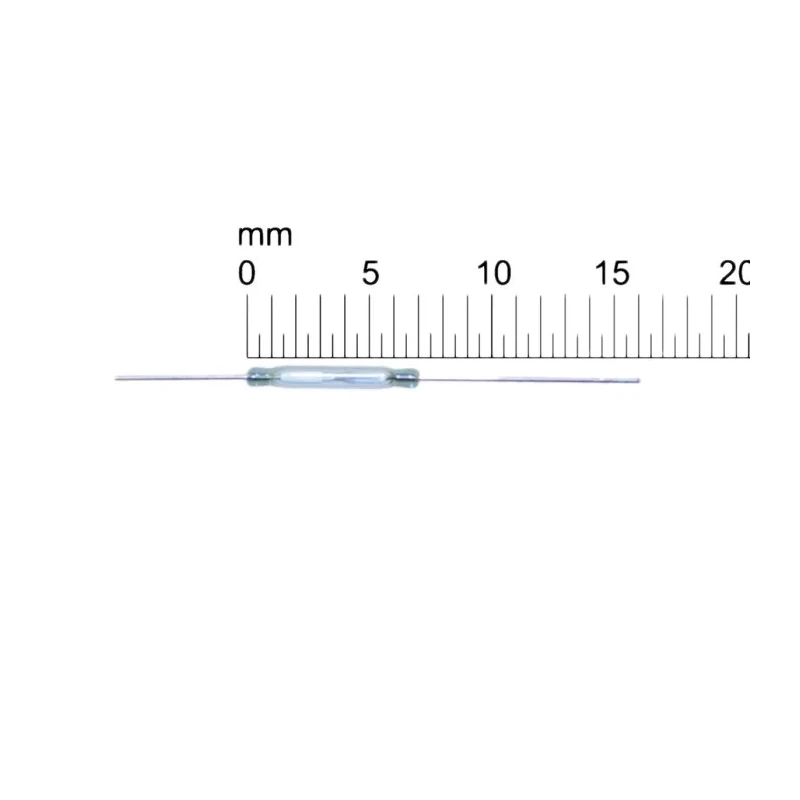

Assemtech SPST-NO PCB Reed Switch 500 mA 170 V ac/dc RI-70 Kit

Assemtech RI-70 Kit SPST-NO PCB Reed Switch is a precision component designed for reliable electromagnetic switching in electronic circuits. Rated for a maximum switching current of 500 mA and voltage up to 170 V ac/dc, it is suitable for various industrial and commercial applications including automation and electrical installations.

The reed switch is hermetically sealed within a gas-filled glass envelope, protecting the internal contacts from contamination and ensuring high reliability and extended life cycles. Featuring single pole, single throw, normally open contact configuration, the switch employs ruthenium plated gold contacts which provide excellent resistance to wear and corrosion.

With a highly responsive maximum release time of 0.04 milliseconds and an operating time including bounce of 0.15 milliseconds, the RI-70 Kit supports fast switching operations. The device is engineered to withstand a wide operating temperature range from -55°C to +125°C, making it adaptable to harsh environments.

Compact in size with dimensions of 7 mm length and 1.8 mm width, the reed switch fits easily onto printed circuit boards via wire terminal mounting. It is tested for a mechanical life capacity of 100 million operations, ensuring durability in repetitive switching conditions.

Suitable for applications in industrial automation, electrical switching, instrumentation, and electronic control circuits, this reed switch kit includes a selection of sensitivity levels from the RI series to aid design development and testing of magnetic actuation responses.

Features a single pole, single throw, normally open contact configuration. Maximum switching power is rated at 10 watts. Contact resistance is low at 2 ohms, ensuring efficient conductivity. Contact material consists of ruthenium plated on gold for durability and corrosion resistance.

Operating temperature range spans from -55°C to 125°C for wide environmental use. Hermetically sealed in a gas-filled glass envelope for protection and longevity. Mounting type is PCB with wire terminals to facilitate printed circuit board integration.

Mechanical life rated for 100 million operations guaranteeing long service life. Compact dimensions with 7 mm length and 1.8 mm width. Complies with ISO standards for quality assurance and reliability. Explore more products in the Reed Switch category at EnvMart for a comprehensive range of electrical and electronic switching components.
