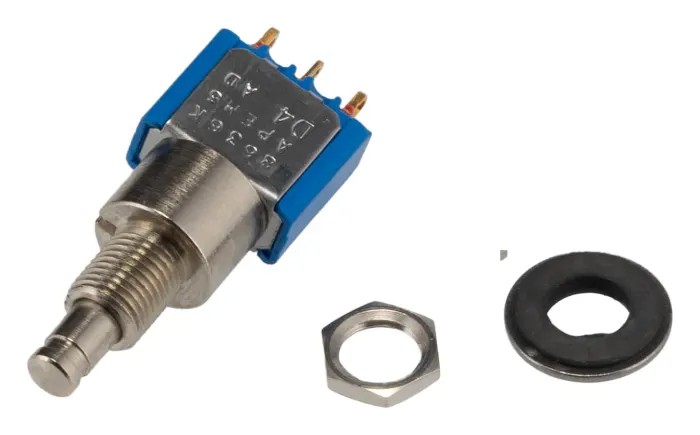

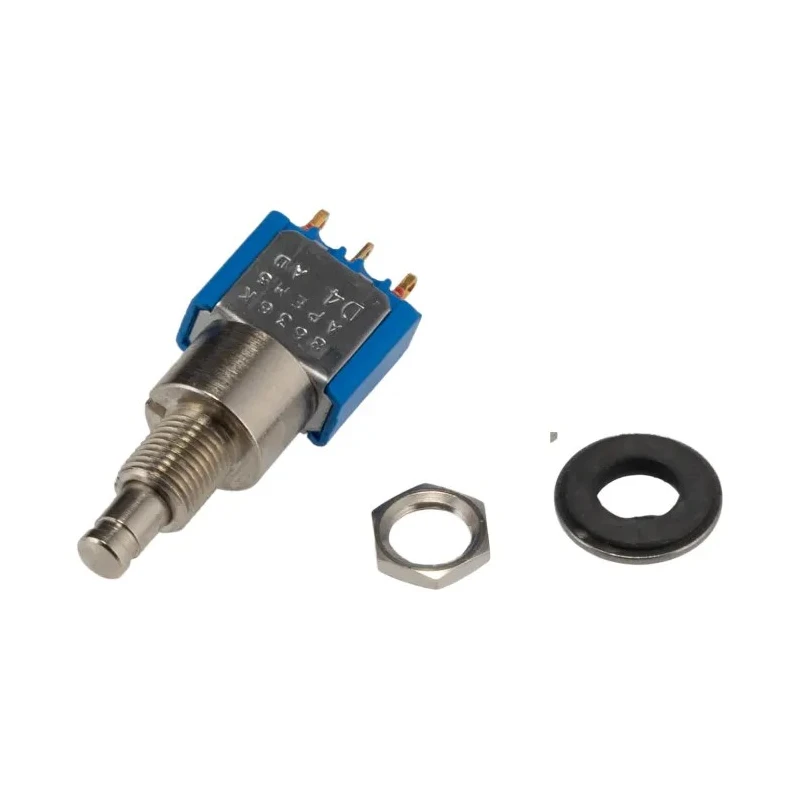

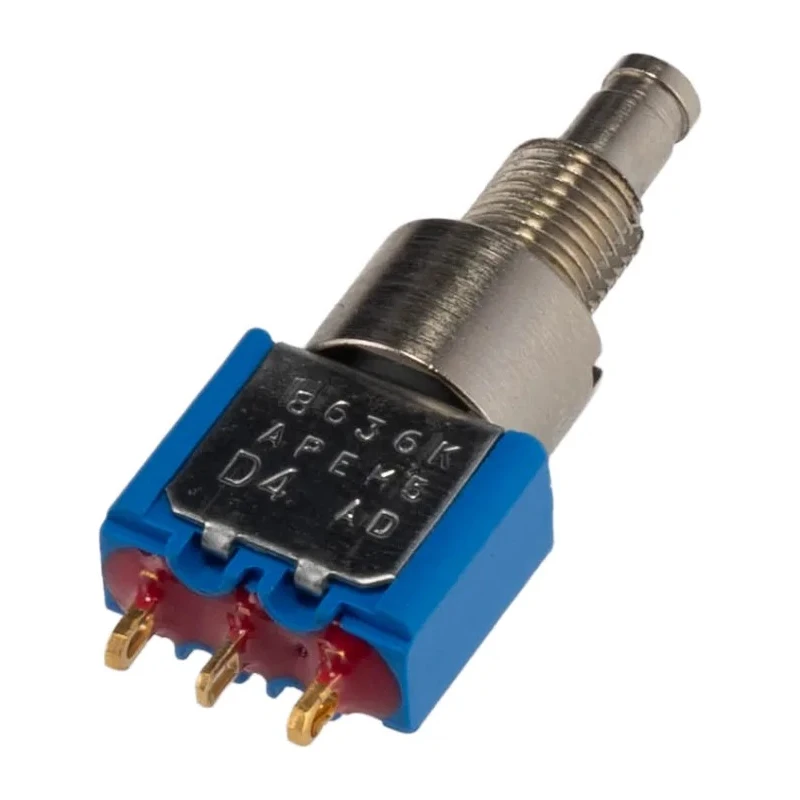

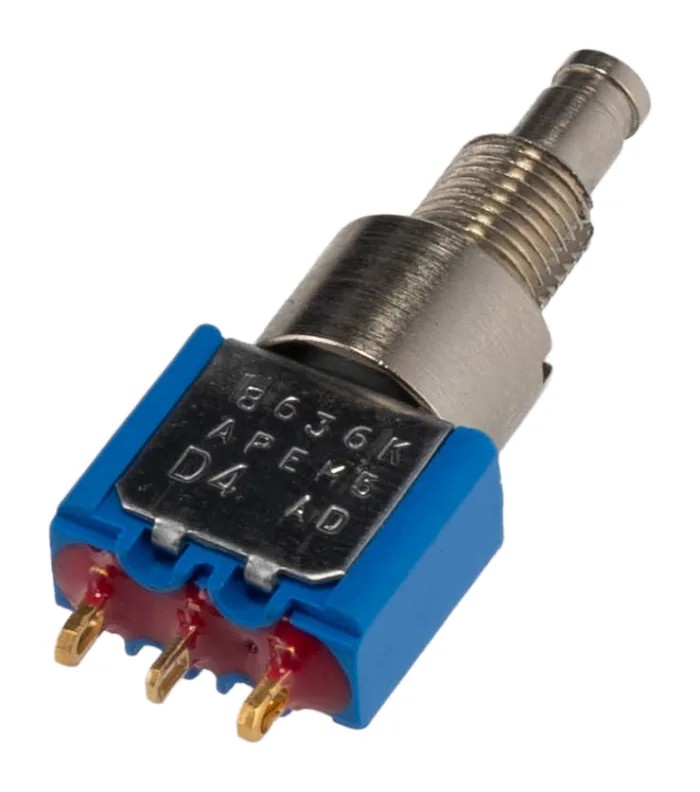

APEM 8000 Series Miniature Push Button Switch SPDT Latching Panel Mount 6.5 mm Cutout IP65 8636ADBK
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 8636ADBK |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | 8000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Insulation resistance | 1000 MOhm @ 500 V dc |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
| Electrical Life | 30000 cycles |
| Stock No | 103-5732 is an SPDT Momentary switch |
Key Features
- Designed for panel mounting with a 6.5 mm cutout size.
- Latching switch operation enabling maintained positions.
- Single Pole Double Throw (SPDT) contact configuration.
- IP65 rated for dust and water resistance.
- Stainless steel body with nickel-plated brass actuator for durability.
- Epoxy sealed terminals providing environmental protection.
- Electrical life of 30,000 cycles ensures longevity.
- Operating temperature range from -40°C to 85°C.
Product Description
APEM 8636ADBK Miniature Push Button Switch is a compact, durable electrical switch designed for industrial and commercial panel mounting applications. It features a stainless steel body and plunger-style actuator with nickel-plated brass construction for robustness and longevity.
This latching switch has a single pole double throw (SPDT) contact configuration and is designed for use in environments that require high ingress protection, rated at IP65, ensuring resistance against dust and water jets. The 6.5 mm panel cutout size facilitates easy integration into control panels and equipment interfaces.
The terminals are epoxy sealed, enhancing insulation and environmental protection, with solder-type connections optimizing reliability. The switch supports an electrical life of up to 30,000 cycles, making it suitable for repetitive operational applications.
Operating effectively within a wide temperature range from -40°C to 85°C, the 8636ADBK switch conforms to RoHS standards, reducing environmental impact. Optional coloured caps and sealing hoods are available separately for application-specific customization and additional sealing needs.
Designed for panel mounting with a 6.5 mm cutout size. Latching switch operation providing maintained switching positions. SPDT contact configuration offers versatile switching capability. IP65 ingress protection rating for dust and water resistance.
Stainless steel body and nickel-plated brass actuator for durability. Epoxy sealed terminals against environmental hazards. Electrical service life rated for 30,000 cycles. Operational temperature range from -40°C to 85°C.
RoHS compliant for environmental and safety standards. Compatible with interchangeable coloured caps and sealing accessories.
This miniature push button switch is ideal for industrial automation, electrical control panels, instrumentation, and other commercial or laboratory equipment where reliable and durable switch operation is critical. Users can customize the switch with various actuator caps and sealing options to meet specific operational needs.
Explore the Electronics & Electricals category for additional push button switches and components to complete your panel build or system integration needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching capabilities.
It has an IP65 rating, providing protection against dust and water jets, making it suitable for harsh environments.
The switch operates effectively within a temperature range of -40°C to 85°C.
The electrical life of this model is rated for up to 30,000 cycles, ensuring longevity in repetitive use applications.
It requires a panel cutout size of 6.5 mm for proper installation.
The switch features solder-type terminals, which enhance reliability and connection stability.
It has a stainless steel body and a nickel-plated brass actuator, contributing to its durability.
Yes, it conforms to RoHS standards, which reduces its environmental impact.
This switch operates as a latching switch, allowing maintained positions after activation.
The insulation resistance is rated at 1000 MOhm @ 500 V dc, ensuring effective insulation.
Yes, it is compatible with interchangeable coloured caps and sealing accessories for application-specific customization.
The country of origin for this switch is France.
