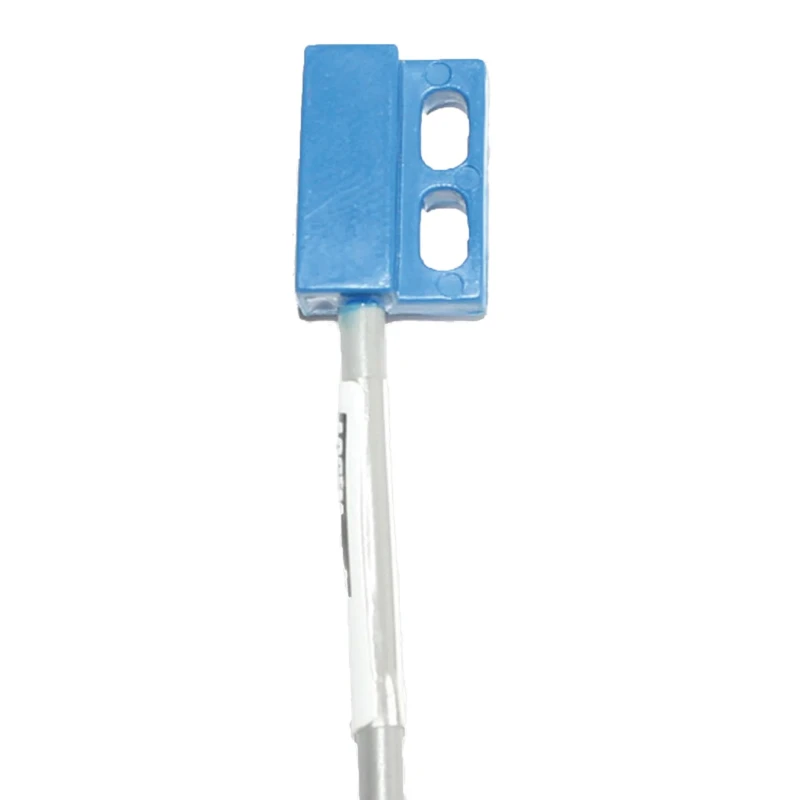

Assemtech Reed Switch Rectangular Polyamide 66 Housing 400V AC, 1A MMPSA 240/30 LH NO BLUE

Assemtech MMPSA 240/30 LH NO BLUE Reed Switch is a rectangular proximity reed switch designed for reliable position and limit sensing in industrial automation and electrical systems. Rated for a switching AC voltage of 400V and a switching current of 1A, this switch is suitable for use in harsh working environments due to its robust Polyamide 66 housing and sealed design.

The device operates on a normally open (NO) output function and is equipped with wire terminal connections. Its compact size, with dimensions of 20mm length, 14mm width, and 6mm depth, allows easy mounting through two slotted fixing holes in the moulded switch case.

Operating reliably across a temperature range from -20°C to 85°C, the MMPSA 240/30 LH NO BLUE switch from Assemtech is extensively used in applications such as linear actuator switches, security system detectors, and door position sensors, delivering precise and cost-effective performance.

This reed switch complies with RoHS standards, reflecting its environmental and safety certifications. Manufactured in the United Kingdom, it represents a high standard in proximity switch solutions for automation, control, and industrial equipment.

The housing material is Polyamide 66 for enhanced durability. The switch offers a normally open output function with 1A switching current. Compact rectangular shape with 20mm length, 14mm width, and 6mm depth. Supports an operating temperature range of -20°C to 85°C.

Equipped with moulded case and two slotted fixing holes for secure installation. Ideal for use in linear actuators, security systems, and door switches. Certified compliance with RoHS environmental standards. Explore more high-quality magnetic proximity switches and Reed Switches at EnvMart to enhance your industrial automation and control systems.
