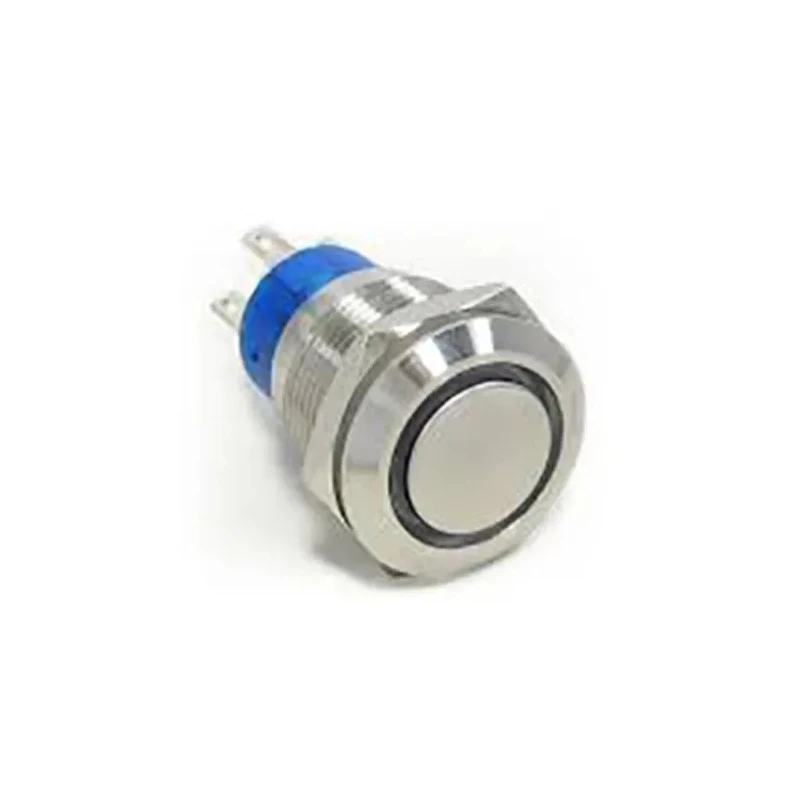

TE Connectivity Series Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, DPDT, Green LED, IP67 AV19

Name: TE Connectivity Series Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, DPDT, Green LED, IP67 AV19
Brand: TE Connectivity
SKU: 390211
Price: 3088.18 INR
Availability: InStock



Category Push Button Switches Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Length	19mm
Model	AV19
IP Rating	IP67
Mount Type	Panel
Series	AV19
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Switch Configuration	DPDT
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Wire Lug
Standards/Approvals	REACH, EU ELV, UL FIle No. E46765
LED Colour	Green
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Push Button
Switch Contact Current	3A
Contact AC Voltage	250V ac

Key Features

The switch has a silver actuator color with a push button style that provides a premium tactile feel.
Designed for durability, it features an IP67 rating, making it dust-tight and protected against immersion in water.
It operates over a temperature range from -20°C to 55°C, ensuring reliable performance in diverse environments.
Rated for both AC and DC voltage up to 250V, with a contact current of 3A, suitable for control and communications equipment.
Equipped with wire lug terminals for secure electrical connection.
Vandal-proof design with rear mounting jam nut enhances security for industrial applications.
Green LED illumination provides clear operational feedback.
Typical applications include elevators, escalators, instrumentation, and industrial control panels.

Product Description

TE Connectivity AV19 Series Illuminated Push Button Switch AV19 is a latching type push button switch designed for industrial and commercial panel mounting applications. It has a 19.2 mm panel cutout size and a double-pole double-throw (DPDT) contact configuration, suitable for complex switching tasks.

The actuator is silver colored with a push button style providing a premium look and tactile feedback. This switch is illuminated with a green LED to offer visible status indication, enhancing usability in low light environments.

The switch complies with an IP67 ingress protection rating, ensuring full protection against dust ingress and temporary immersion in water, making it suitable for harsh environmental conditions.

Operating temperature ranges from -20°C to 55°C, allowing use in diverse industrial settings. It is rated to handle up to 250V AC or DC contact voltage and a contact current of 3A, which is suitable for control and communications equipment, elevators, escalators, and instrumentation devices.

The switch uses wire lug terminals for reliable and safe electrical connections and features a vandal-proof design with a rear mounting jam nut for enhanced security and durability.

Silver actuator color with push button style. Illuminated with green LED for status indication. IP67 rated for dust and water resistance. Suitable for a wide temperature range from -20°C to 55°C. Contact rating: 250V AC/DC, 3A current.

Vandal-proof design with jam nut rear mounting. Wire lug terminal type ensures secure connections. Compliant with RoHS, REACH, and UL certifications. Ideal for industrial control panels, elevators, escalators, and instrumentation.

This TE Connectivity AV19 Series push button switch offers an easy interface solution for panel mounting in industrial, laboratory, construction, HVAC, and manufacturing settings, ensuring reliability and durability for demanding environments. Explore more products from TE Connectivity and related Push Button Switches on EnvMart.
