Assemtech SPNO PCB Reed Switch 1 A 230 V AC/DC 2502-2722-020

Free Delivery in India | Lowest Global Shipping Charges

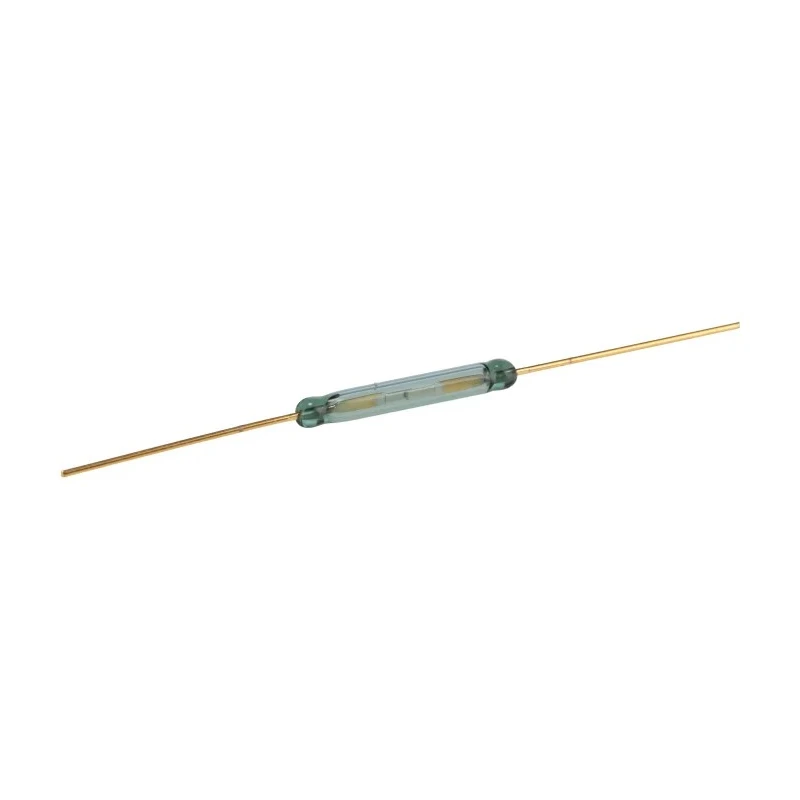

Assemtech SPNO PCB Reed Switch 1 A 230 V AC/DC 2502-2722-020

Name: Assemtech SPNO PCB Reed Switch 1 A 230 V AC/DC 2502-2722-020
Brand: Assemtech
SKU: 328372
Price: 135.13 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	India
Brand	Assemtech
Length	55mm
Width	2.6mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	1A
Maximum Operating Temperature	125°C
Contact Configuration	SPNO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Standards/Approvals	ISO
Maximum Switching Voltage	230V ac/dc
Maximum Release Time	0.1ms
Operating Time Including Bounce	0.5ms
AT Value Range	30 to 50 AT
Cynergy3 SPST PCB Reed Switch 1 A 230 V ac/dcBrand	Cynergy3
Assemtech SPNO PCB Reed Switch 500 mA 400 V ac/dcBrand	Assemtech

Key Features

This switch features a SPNO (Single Pole Normally Open) contact configuration.
It supports a maximum switching current of 1 A and voltage of 230 V AC/DC.
The contact resistance is low at 100 mΩ, ensuring efficient conduction.
Its terminals use wire type suitable for PCB mounting.
The reed switch operates reliably within temperature limits from -40°C to 125°C.
Contact material rhodium offers corrosion resistance and durability.
The device length is 55 mm and width is 2.6 mm for compact PCB integration.
Operating time including bounce is fast at 0.5 ms with a release time of 0.1 ms.

Product Description

Assemtech 2502-2722-020 SPNO PCB Reed Switch 1 A 230 V AC/DC is a high-quality reed switch hermetically sealed in a gas-filled glass envelope to provide reliable and stable switching performance. Designed for mounting on printed circuit boards, it features a SPNO (Single Pole Normally Open) contact configuration with rhodium-plated contacts for excellent conductivity and corrosion resistance.

This reed switch has a maximum switching current rating of 1 ampere and can handle voltages up to 230 V AC/DC. Its contact resistance is low at 100 mΩ, contributing to efficient electrical performance. The switch operates rapidly with a maximum release time of 0.1 milliseconds and an operating time including bounce of 0.5 milliseconds, suitable for fast switching applications.

The device operates reliably over a wide temperature range from -40°C to 125°C, making it versatile for various industrial and commercial settings. Its dimensions are compact, measuring 55 mm in length and 2.6 mm in width, facilitating compact PCB assembly.

Hermetic sealing in a gas-filled glass envelope protects the internal reeds from environmental factors, enhancing lifespan and mechanical life up to 10^8 operations. The switch is actuated magnetically, either by an electromagnet or a permanent magnet, allowing flexibility in automation and sensor systems.

This Reed Switch complies with ISO standards, ensuring compliance with industry quality and safety requirements. Applications include use in industrial automation equipment, electrical monitoring systems, HVAC control, manufacturing machinery, and other electronic switching needs where reliable, fast, and precise switching is essential.

SPNO contact configuration with rhodium contacts. Maximum switching current of 1 A and voltage up to 230 V AC/DC. Low contact resistance of 100 mΩ. Fast operating and release times suitable for rapid switching. Wide operating temperature range from -40°C to 125°C.

Compact dimensions: 55 mm length and 2.6 mm width for PCB mounting. Hermetically sealed in gas-filled glass envelope for durability. Mechanical life rated at 10^8 operations for long-term reliability. Suitable for industrial, automation, electrical, and control system applications.

Compliance with ISO standards for quality assurance. Explore a broad range of electrical switches and components for industrial and electronic applications at EnvMart.
