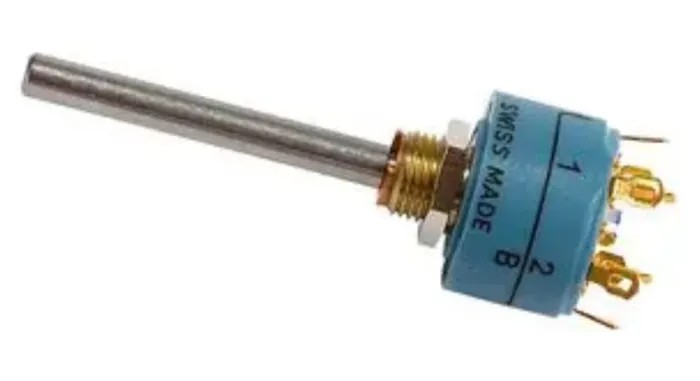

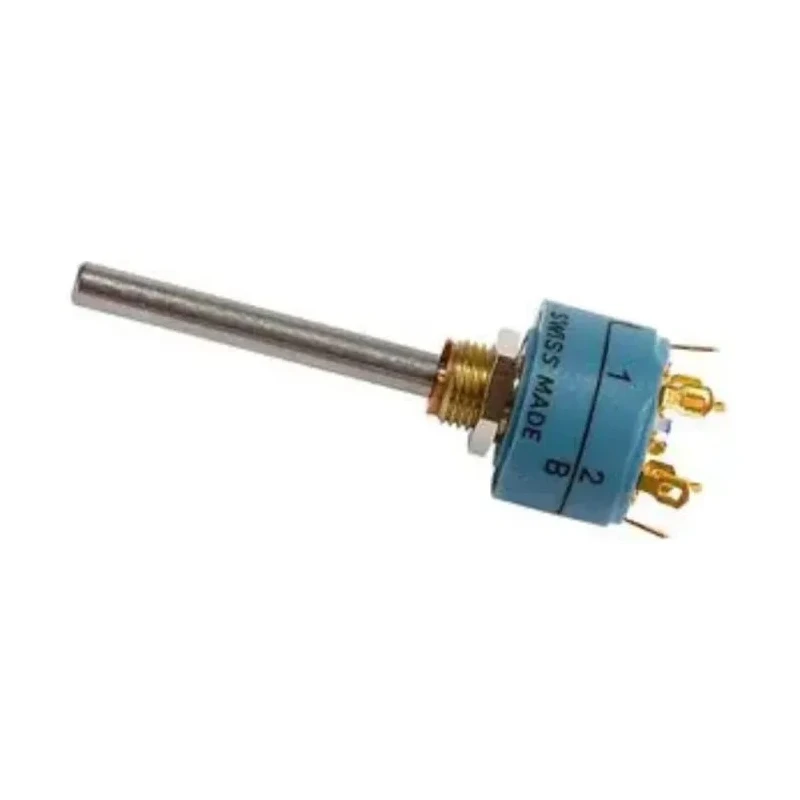

Elma Type 01 Precision 3 Position 2 Pole Rotary Switch 2A, 42V DC, Panel Mount, Solder Terminals 01-1234

Elma 01-1234 is a Type 01 rotary switch engineered for precision and reliability in industrial and commercial electrical applications. This selector switch features 3 distinct positions and 2 poles, rated to carry 2A current at a maximum of 42V DC, making it suitable for control circuits requiring moderate current capacity.

The switch housing is constructed from durable nickel silver metal which, combined with a panel mount design, provides robustness and ease of installation. The actuator is silver-colored and non-illuminated, utilizing solder terminals to ensure secure and stable electrical connections.

Rated for an operating temperature range from -40°C to +85°C, the switch performs reliably in harsh environments such as industrial automation, avionics, medical devices, and high-end audio equipment. The device is IP60 rated, ensuring protection against dust ingress but not water.

Contact surfaces are plated with 3 microns of gold, enhancing conductivity and reducing oxidation for stable long-term operation. The rotary switch offers a precise 60-degree angle of throw, allowing for accurate position selection during use.

Mechanical durability is rated at 25,000 operations, supporting extended service life in demanding applications. Compact dimensions with an approximate diameter, height, and width near 18 mm make it compatible with space-constrained panel designs.

3-micron gold plated contacts for enhanced conductivity. Robust nickel silver housing with panel mount installation. Wide operating temperature range from -40°C to 85°C. Solder terminal type for reliable electrical connections.

IP60 rated for dust protection in industrial environments. Mechanical life of 25,000 cycles for durability. Precise 60° angle of throw for accurate switching. Compact size: 18mm width, 18mm height, 18.3mm depth.

This high-quality precision Rotary Switch by Elma is ideal for industrial controls, avionics, medical devices, and high-end audio equipment, where reliable position selection and robust construction are critical. Discover additional precision switches and related components within EnvMart's Electronics & Electricals category for your various control and automation projects.
