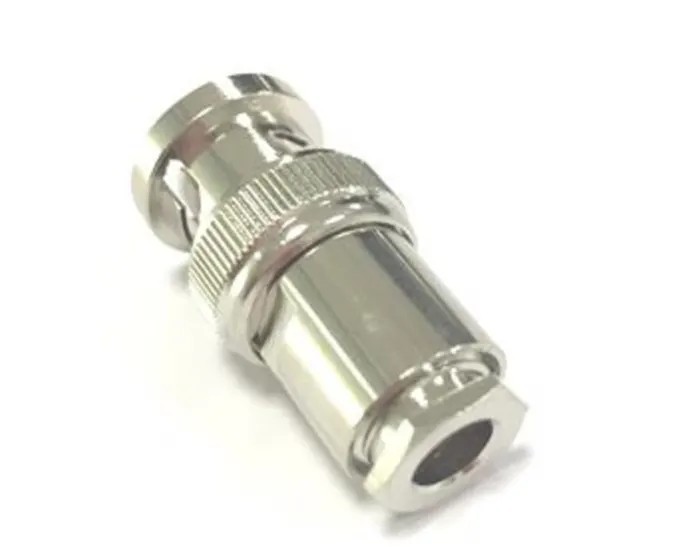

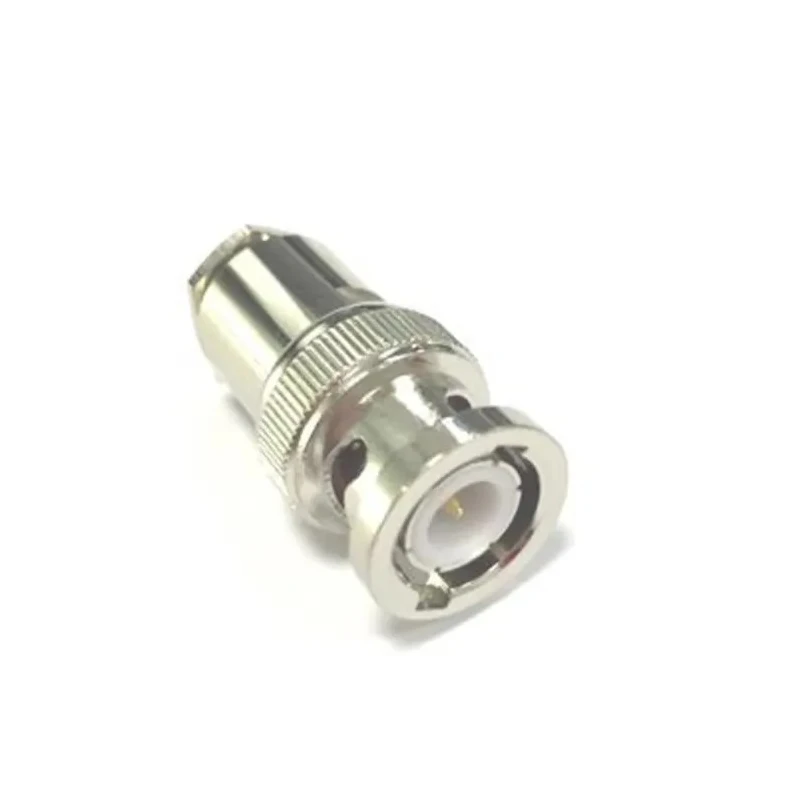

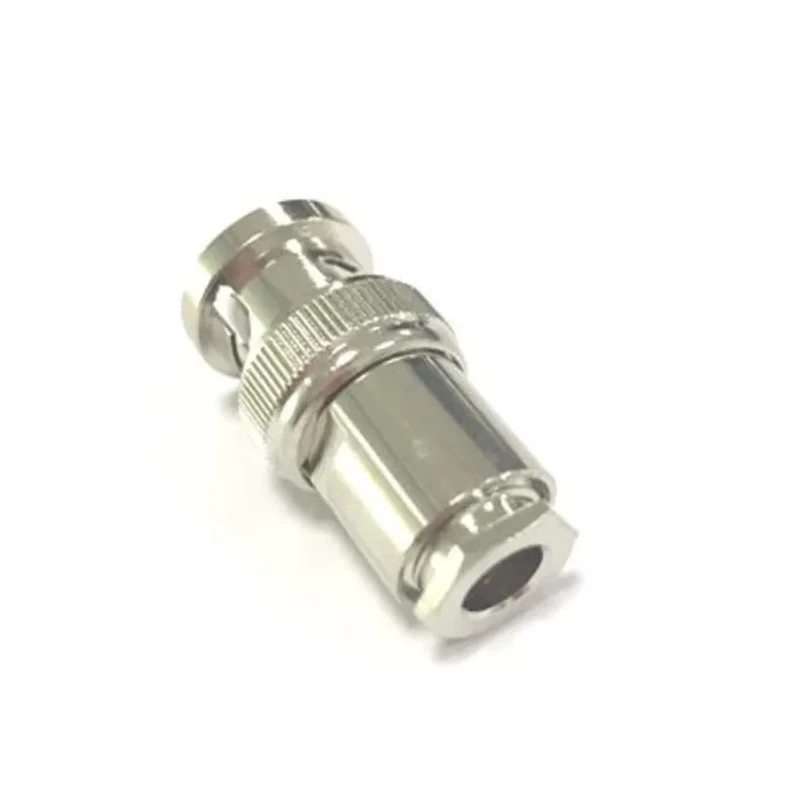

TE Connectivity Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Clamp 217-7790
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 217-7790 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Clamp |
| Maximum Operating Temperature | 80°C |
| Insulation Material | PTFE |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -20°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO Coaxial Connector Cable Male BNC, 50 Ω, Straight Body ClampBrand | RS PRO |
Key Features
- Features a rugged nickel-plated body for enhanced durability.
- Gold-plated centre pin contacts provide excellent electrical conductivity.
- Clamp termination type ensures secure cable attachment.
- Temperature range from -20°C to +80°C for versatile applications.
- Operating frequency up to 4 GHz supports high-frequency RF signals.
- Bayonet coupling system offers quick connection and safe disengagement.
- Constructed with brass contact material and PTFE insulation for stable performance.
- Designed for male BNC connector cable mounting applications.
Product Description
RS PRO 217-7790 Coaxial Connector Cable Male BNC is a high-quality coaxial connector designed for reliable RF signal transfer applications. This 50 Ω impedance connector features a straight body clamp mount, enabling secure attachment to coaxial cables in a variety of industrial and electronic settings.
The connector body is nickel-plated to resist corrosion and mechanical wear, while the inner contact materials include brass with nickel plating and a gold-plated centre pin for superior electrical conductivity. Insulation is provided by PTFE, ensuring stable dielectric properties over the operating temperature range of -20°C to 80°C.
Designed for use with RG58 coaxial cable assemblies, this male BNC connector supports frequencies up to 4 GHz and a working voltage of 500 V. Its bayonet coupling mechanism provides rapid connection and disconnection without risk to the cable or connector integrity, ensuring longevity over at least 500 mating cycles.
This connector is suitable for a broad range of applications, including antenna connections, telecom equipment, cable modems, and medical devices, making it ideal for industrial, laboratory, and communication system installations.
Rugged nickel-plated body for corrosion resistance. Gold-plated centre pin for excellent electrical contact. Clamp termination secures cable effectively. Wide operating temperature range from -20°C to +80°C. Supports frequency operation up to 4 GHz.
Bayonet coupling allows quick and safe mating. Brass contact material ensures durability. PTFE insulation provides stable signal quality.
This RS PRO Coaxial Connector is manufactured to meet demanding performance criteria necessary for high-reliability signal transmission. Its design and build quality make it a dependable choice for technicians and engineers across multiple sectors.
Explore the broader RS PRO range for additional connector options and installation tools to optimize your RF cabling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 4 GHz, making it suitable for high-frequency RF signal applications.
This model features a clamp termination type, ensuring a secure attachment to coaxial cables.
The connector is constructed with a nickel-plated brass body and features a gold-plated centre pin for excellent electrical conductivity, along with PTFE insulation for stable performance.
It operates within a temperature range of -20°C to 80°C, allowing for versatile applications in various environments.
This connector utilizes a bayonet coupling system, which allows for quick connection and safe disengagement without risking damage to the cable or connector.
This male BNC connector is designed for use with RG58 coaxial cable assemblies.
The impedance rating of this coaxial connector is 50 Ω, which is standard for many RF applications.
This model features male contacts, making it suitable for connecting to female BNC connectors.
The body of this connector is plated with nickel, which provides corrosion resistance and enhances durability.
It is designed to withstand at least 500 mating cycles, ensuring longevity and reliability in use.
This connector is suitable for a variety of applications including antenna connections, telecom equipment, cable modems, and medical devices.
This connector has a standard size and features a straight orientation, designed for cable mounting applications.
