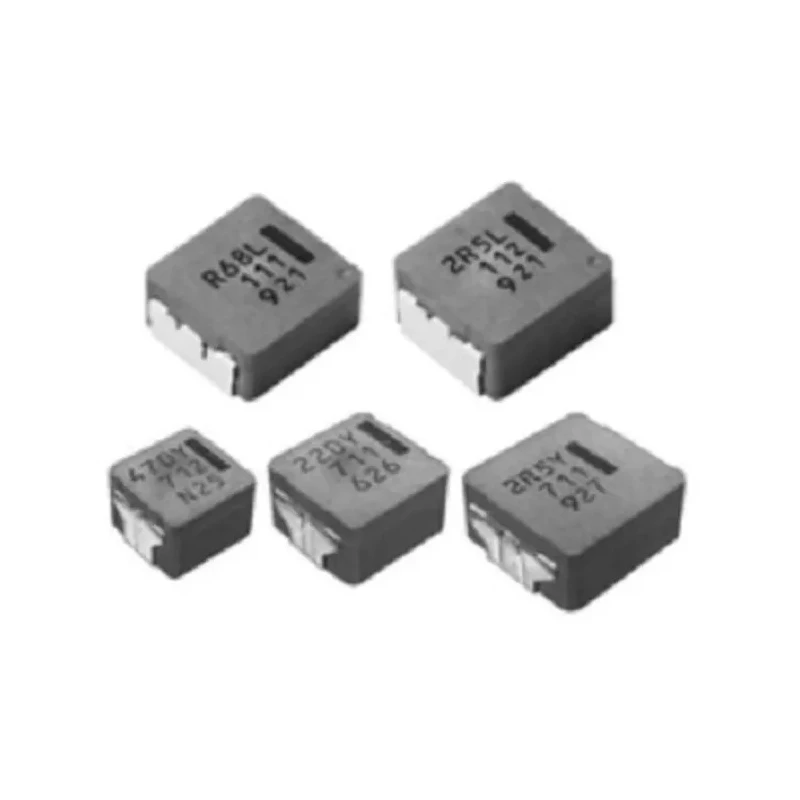

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 3.3 μH ±20% 15.7 A IDC ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 10.7mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 15.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 7.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design with 2 pins for ease of PCB assembly.
- High heat resistance and vibration resistance ensuring reliability in harsh conditions.
- Metal composite core enhances inductance stability and noise reduction.
- Maximum self-resonant frequency of 100 kHz suited for various electronics applications.
- Compliance with AEC-Q200 automotive standard for durability and quality.
- Low maximum DC resistance of 7.9 mΩ minimizes power losses.
- Inductor constructed with wirewound technology for precise inductance.
- Temperature range from -40°C to +150°C for extended operational environments.
Product Description
Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor with Metal Composite Core provides a robust solution designed for high-performance electronic circuits requiring stable inductance and high current capacity. Featuring an inductance of 3.3 μH with a tolerance of ±20%, this inductor supports a maximum DC current of 15.7 A IDC and operates effectively within a temperature range of -40°C to 150°C.
The surface mount package measuring 10.7 mm in length, 10 mm in depth, and 5.4 mm in height ensures easy integration into compact PCBs. The inductor is constructed with wirewound technology on a metal composite core which offers excellent inductance stability and low audible noise, making it highly suitable for automotive and industrial electronic applications.
Its shielded design minimizes electromagnetic interference, enhancing performance in noise-sensitive environments. Compliance with the AEC-Q200 automotive standard guarantees reliability and durability under harsh operational conditions. The low maximum DC resistance of 7.9 mΩ reduces power losses, increasing overall efficiency.
Supplied in tape and reel packaging, the ETQP5M model supports streamlined assembly on automated production lines. The maximum self-resonant frequency of 100 kHz enables use in a variety of filtering and power management applications.
Compact surface mount design facilitating easy PCB assembly. High heat and vibration resistance for industrial and automotive use. Shielded wirewound construction reducing noise and EMI. Compliance with automotive standard AEC-Q200 for quality assurance.
Wide operating temperature range from -40°C to 150°C. Low DC resistance enhances efficiency and reduces losses. Tape and reel packaging supports automated manufacturing. Metal composite core for stable inductance under varying conditions.
Suitable for power electronics, noise filtering, and high current circuits.
Panasonic inductors like the ETQP5M are ideal for industrial, automotive, and electronic manufacturing sectors requiring premium performance components. Browse more Surface Mount Inductors and related components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ETQP5M inductor has an inductance value of 3.3 μH with a tolerance of ±20%.
This model supports a maximum DC current of 15.7 A IDC.
The dimensions of the ETQP5M are 10.7 mm in length, 10 mm in depth, and 5.4 mm in height.
The maximum operating temperature for the ETQP5M inductor is 150°C.
The ETQP5M inductor features a metal composite core, which enhances inductance stability and noise reduction.
The maximum self-resonant frequency of the ETQP5M is 100 kHz.
This model is supplied in tape and reel packaging, which supports automated assembly processes.
The ETQP5M complies with the AEC-Q200 automotive standard, ensuring reliability and quality in automotive applications.
The maximum DC resistance of this inductor is 7.9 mΩ, which helps minimize power losses.
The inductor is constructed using wirewound technology, which provides precise inductance.
The operating temperature range for the ETQP5M is from -40°C to 150°C.
The termination style of the ETQP5M is surface mount, featuring 2 pins for ease of PCB assembly.
