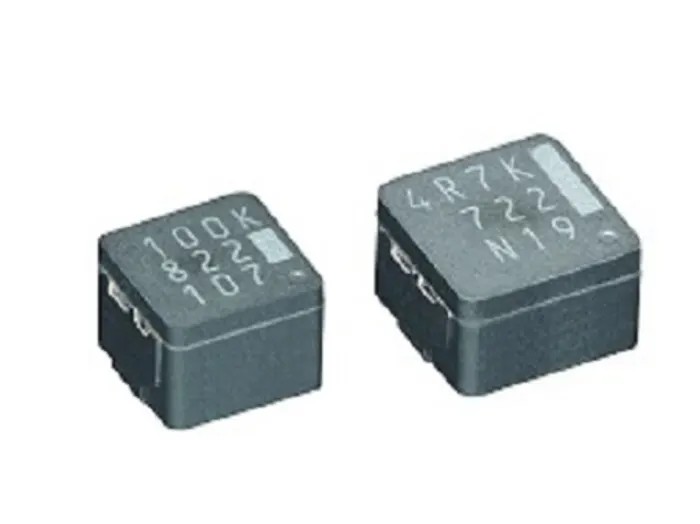

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 3.3 μH ±20% 9.2 A Idc ETQP4M

Panasonic ETQP4M shielded wirewound surface mount inductor with a metal composite core provides 3.3 μH inductance with a tolerance of ±20% and can handle a maximum DC current of 9.2 A. Built for industrial and automotive use, this inductor features high heat resistance and reliability enabled by its metal composite core construction.

The wirewound design ensures excellent inductance stability and low audible noise, making it ideal for noise filtering applications in various drive circuitry operating at high temperatures up to 150°C including self-heating conditions. Its shielded construction effectively minimizes electromagnetic interference, enhancing overall circuit performance.

Measuring 6.4 mm in length, 4.8 mm in height, and 6 mm in depth, this surface mount device is packaged on tape and reel for streamlined automated installation. It meets the automotive AEC-Q200 quality standard and complies with RoHS environmental directives, ensuring its suitability for automotive electronics as well as commercial industrial applications.

Typical applications include use in industrial electronics, automotive systems, manufacturing equipment, and any scenarios requiring robust noise filtering and high current with thermal stability. The two-pin surface mount termination style enables easy integration onto PCBs.

High heat resistance and high reliability using metal composite core. Newly developed integral construction provides high vibration resistance. Excellent inductance stability thanks to ferrous alloy magnetic material. Shielded construction reduces electromagnetic noise interference.

Designed for operation up to 150°C, including self heat. Maintains temperature stability and low audible noise. Noise filter for various drive circuitry requiring high temperature operation and peak current capability. Packaged on tape and reel for efficient manufacturing processes.

For engineers and designers seeking a reliable and robust surface mount inductor with precise electrical characteristics and environmental compliance, the Panasonic ETQP4M series offers a proven solution. Explore more Surface Mount Inductors and related components in our Electronics Components category to find the perfect match for your applications.
