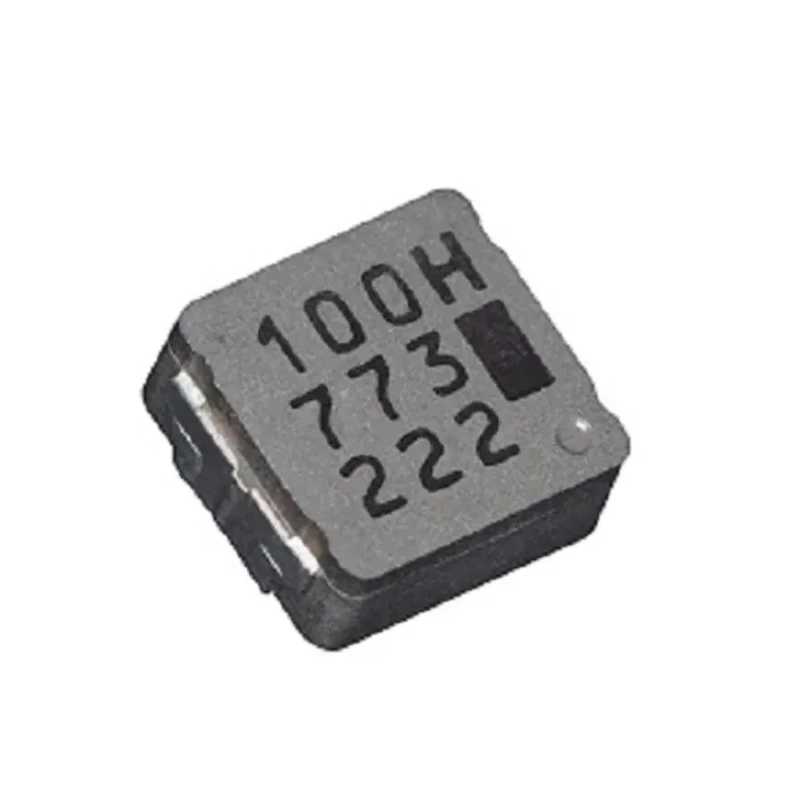

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 22μH ±20% 2.1A Idc ETQP3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 6.5mm |
| Model | ETQP3M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP3M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 158.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for enhanced durability and heat resistance.
- Designed with a shielded wirewound configuration to minimize electromagnetic interference.
- Suitable for surface mount applications with a compact 6.5mm x 6mm x 3mm form factor.
- Certified to meet automotive standard AEC-Q200, ensuring reliability under stress.
- Operates efficiently in temperatures ranging from -40°C to 150°C.
- Features a low maximum DC resistance of 158.4mΩ for minimal power loss.
- Packaged on tape and reel for easy automated assembly.
- Offers high vibration resistance and low audible noise for demanding electronic environments.
Product Description
Panasonic ETQP3M Shielded Wirewound Surface Mount Inductor is engineered to provide high heat resistance and stable inductance performance using a metal composite core. This component is ideal for electronic designs requiring reliable inductors that maintain stability under high temperature and vibration conditions.
The wirewound construction with shielding reduces electromagnetic interference, making it suitable for noise filtering in high-performance electronic circuits, including automotive systems and industrial applications. The compact surface mount package (6.5mm length, 6mm depth, and 3mm height) supports modern PCB layouts where space-saving is critical.
Rated for a maximum DC current of 2.1A and an inductance value of 22μH with ±20% tolerance, this inductor operates effectively within a temperature range from -40°C to 150°C. It complies with RoHS standards and automotive qualification AEC-Q200 to meet stringent quality and reliability requirements.
Constructed with a metal composite core to enhance durability and heat resistance. Shielded wirewound design minimizes interference and audible noise. Compact surface mount case optimized for automated assembly. Automotive grade certified for high reliability and performance.
Wide operating temperature range suitable for harsh environments. Low DC resistance reduces power losses in circuit operation. High vibration resistance ensures robust usage in industrial and automotive electronics. Packaged on tape and reel for efficient manufacturing processes.
This Panasonic ETQP3M inductor is suitable for industrial electronics, automotive electronics systems, electronic power supplies, and noise filtering circuits requiring precision inductors with stable characteristics at elevated temperatures.
Explore more high-quality Surface Mount Inductors and other electronic components in the Electronics Components category on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 2.1A.
It operates efficiently within a temperature range from -40°C to 150°C.
The dimensions of this inductor are 6.5mm in length, 6mm in depth, and 3mm in height.
It is constructed with a metal composite core, enhancing durability and heat resistance.
It is packaged on tape and reel for easy automated assembly.
This model complies with RoHS standards and is certified to the automotive standard AEC-Q200.
The inductor features a wirewound construction, which helps in minimizing electromagnetic interference.
The maximum DC resistance for this inductor is 158.4mΩ, which helps reduce power loss.
This model is suitable for industrial electronics, automotive electronics systems, electronic power supplies, and noise filtering circuits.
This inductor has a pin count of 2.
It features high vibration resistance and low audible noise, making it suitable for demanding electronic environments.
