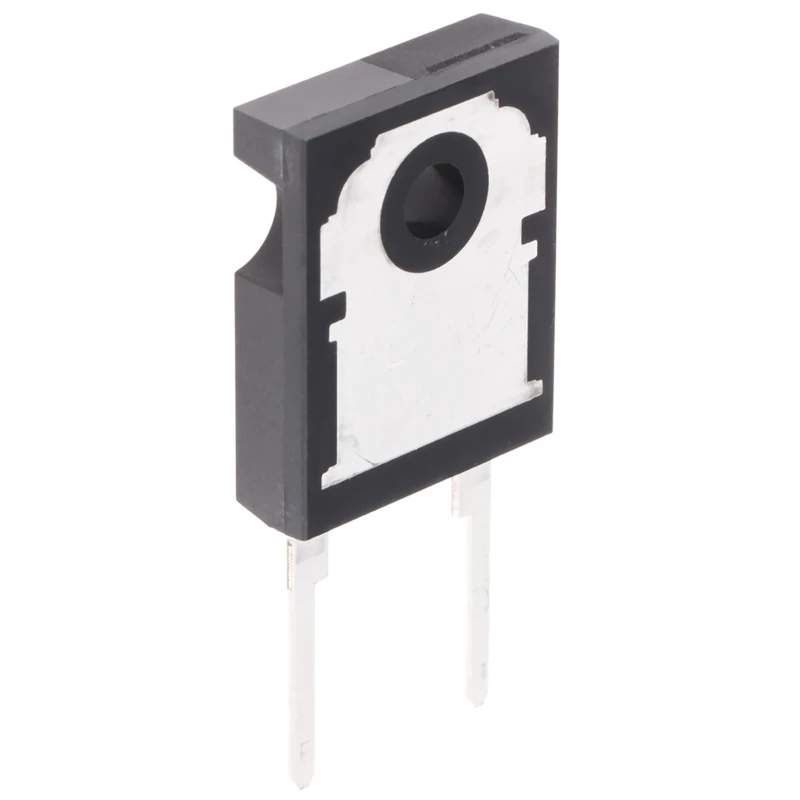

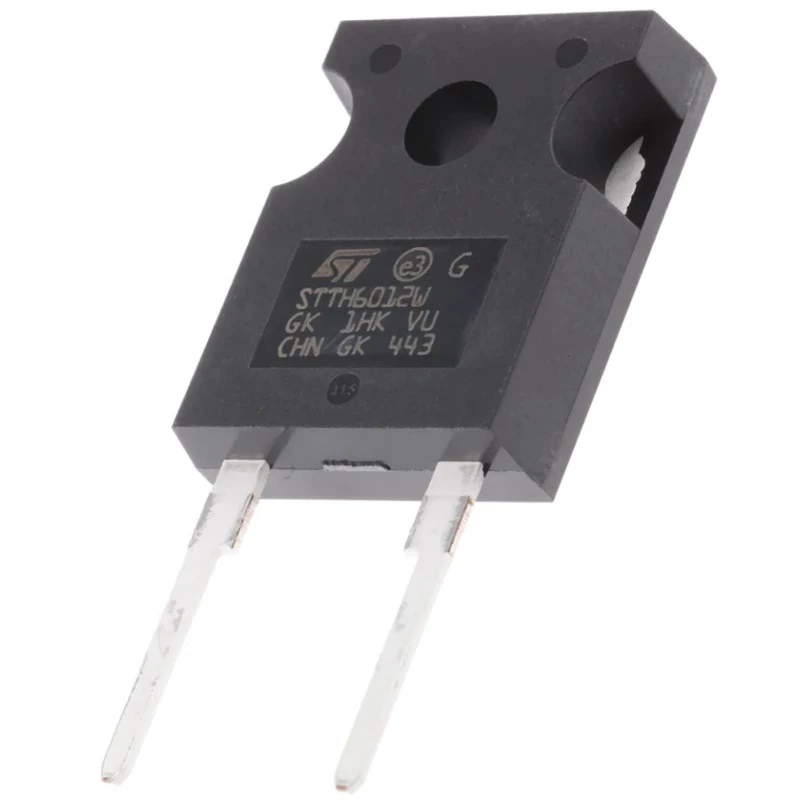

STMicroelectronics 1200 V 60 A Switching Diode 2-Pin DO-247 STTH6012W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.65mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH6012W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH6012 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | JEDEC JESD97, ECOPACK, UL94 V0 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 2.25V |
| Peak Reverse Recovery Time trr | 125ns |
| onsemi 1200V 75A, Rectifier Diode, 2-Pin TO-247 RHRG75120Brand | onsemi |
Key Features
- Supports maximum continuous forward current of 60A.
- Has peak reverse repetitive voltage rating of 1200V.
- Features peak reverse current of 30 microamps for high efficiency.
- Operates within temperature range of -65°C to 175°C.
- Peak non-repetitive forward surge current is 400A for short durations.
- Maximum forward voltage drop is 2.25V ensuring low losses.
- Fast peak reverse recovery time of 125 nanoseconds improves switching speed.
- Mechanical dimensions include length of 15.75mm, height of 20.15mm, width of 5.15mm, and diameter of 3.65mm.
Product Description
STMicroelectronics STTH6012W is a high-performance switching diode with ratings of 1200 V and 60 A, packaged in a 2-pin DO-247 through-hole mount. It is designed for reliable operation in industrial electronic, power management, and semiconductor switching applications.
The diode offers a maximum continuous forward current of 60 amps, combined with a peak reverse repetitive voltage of 1200 volts, making it ideal for high-voltage circuits. Its low peak reverse current of 30 microamps enhances efficiency by minimizing leakage.
Thermally robust, the component withstands operating temperatures from -65 °C up to 175 °C, and supports short surge currents of up to 400 amps non-repetitively. The maximum forward voltage drop is 2.25 volts, reducing power losses during conduction.
With a quick peak reverse recovery time of 125 nanoseconds, this diode supports fast switching operations essential in advanced industrial control and power electronics.
The device meets rigorous standards such as JEDEC JESD97, ECOPACK environmental compliance, and UL94 V0 flame retardance, assuring reliability and safety in demanding environments.
Maximum continuous forward current: 60A. Peak reverse repetitive voltage: 1200V. Peak reverse current: 30μA. Operating temperature range: -65°C to 175°C. Peak non-repetitive forward surge current: 400A. Maximum forward voltage: 2.25V.
Peak reverse recovery time: 125ns. Package type: 2-Pin DO-247 through hole. Compliance to JEDEC JESD97, ECOPACK, UL94 V0. Mechanical dimensions suitable for industrial mounting.
This diode is widely used in power rectification, switching power supplies, and various electronic devices in industrial, manufacturing, and commercial sectors. It offers dependable performance where high current and voltage handling are required.
Explore more components and electronic parts at EnvMart to support your industrial and manufacturing projects.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH6012W is 60A.
This model has a peak reverse repetitive voltage rating of 1200V.
The peak reverse current for the STTH6012W is 30 microamps.
It operates within a temperature range of -65°C to 175°C.
The peak non-repetitive forward surge current is rated at 400A for short durations.
The maximum forward voltage drop is 2.25V, which helps reduce power losses during conduction.
The peak reverse recovery time for this model is 125 nanoseconds, enhancing its switching speed.
The mechanical dimensions are length 15.75mm, height 20.15mm, width 5.15mm, and diameter 3.65mm.
The diode is packaged in a 2-pin DO-247 through-hole mount.
It complies with JEDEC JESD97, ECOPACK environmental compliance, and UL94 V0 flame retardance standards.
This diode is widely used in power rectification, switching power supplies, and various electronic devices in industrial and commercial sectors.
The STTH6012W has a single diode configuration.
