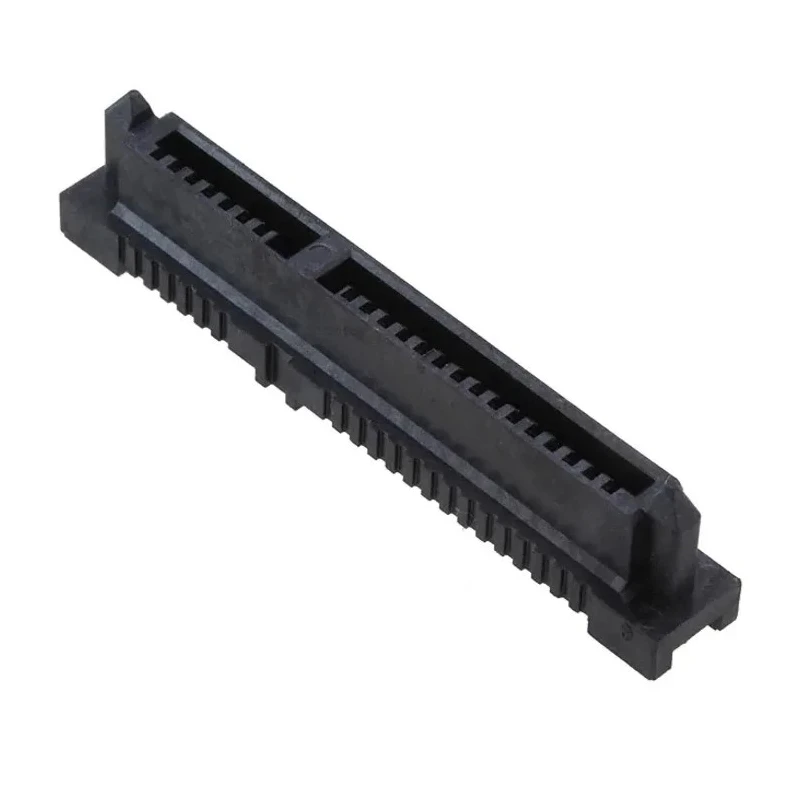

Molex 87713 Series Vertical Surface PCB Connector, 22-Contact, 1 Row, 1.27 mm Pitch, Solder Termination, 30V, 1.5A 877131001
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 87713 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Constructed with high temperature thermoplastic housing for enhanced durability.
- Rated for 1.5 amps current and 30 volts operating voltage.
- Features gold-plated copper alloy female contacts for superior conductivity.
- Supports board-to-board connector system with vertical orientation.
- Operating temperature range from -40°C to 105°C suitable for various industrial applications.
- Certified to CSA LR19980 and UL E29179 standards.
- Ideal for electronic component assembly and PCB socket applications.
- Manufactured in Singapore ensuring quality and reliability.
Product Description
Molex 877131001 vertical surface PCB connector is designed to provide reliable board-to-board connections in electronic assemblies. This PCB connector features a single row with 22 female contacts and a 1.27 mm pitch, optimized for signal transmission and compact footprint.
The connector housing is made from high temperature thermoplastic, capable of withstanding operating temperatures ranging from -40°C to 105°C. The female contacts are crafted from copper alloy with gold plating, which ensures high conductivity and resistance to corrosion. Suitable for surface mounting with solder termination, this Molex connector supports a current rating of 1.5A and a voltage rating of 30V, making it ideal for diverse industrial, laboratory, communication, and manufacturing equipment.
With a vertical orientation, this connector enables efficient board-to-board stacking or signal routing while maintaining a small profile. It complies with recognized standards including CSA LR19980 and UL E29179, supporting stringent quality and safety requirements. The product is manufactured in Singapore, reflecting global manufacturing standards.
Constructed from high temperature thermoplastic housing. 22 female copper alloy contacts with gold plating for electrical reliability. Surface mount type with solder termination for stable mechanical and electrical connection.
Rated for 1.5A current and 30V voltage operation. Vertical orientation suited for board-to-board connector systems. Complies with CSA LR19980 and UL E29179 approvals. Wide operating temperature range from -40°C to 105°C.
Manufactured in Singapore.
This Molex PCB Connector is well-suited for applications in electronics manufacturing, power and signal distribution on PCBs, industrial electronics assembly, and other demanding environments needing robust and reliable connectors.
Explore the wide range of PCB sockets and wire housing connectors in the Connectors category on EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB connector is rated for a current of 1.5A and an operating voltage of 30V.
The contacts in this model have a pitch of 1.27 mm.
It operates within a temperature range of -40°C to 105°C.
The housing is made from high temperature thermoplastic, and the female contacts are crafted from copper alloy with gold plating.
This model features 22 female contacts.
It uses solder termination for stable mechanical and electrical connections.
This connector is certified to CSA LR19980 and UL E29179 standards.
This model has a vertical orientation, making it suitable for board-to-board connections.
It supports surface mounting, which is ideal for compact electronic assemblies.
It is suitable for electronic component assembly, power and signal distribution on PCBs, and industrial electronics assembly.
This connector is manufactured in Singapore.
This model supports a board-to-board connector system optimized for signal transmission.
