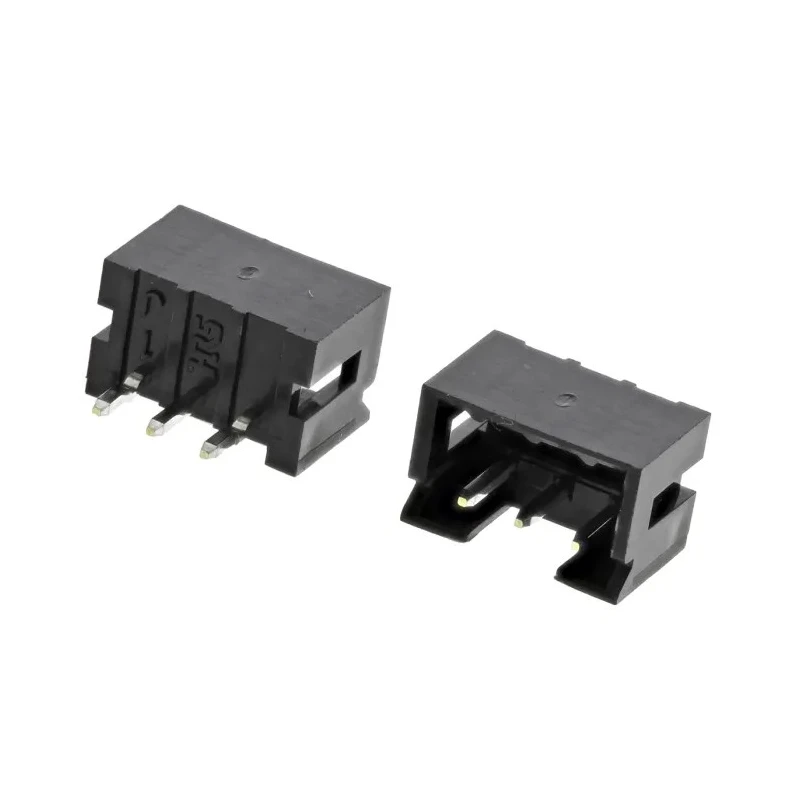

Hirose DF3 Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded DF3A-3P-2DSA

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF3 Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded DF3A-3P-2DSA

Name: Hirose DF3 Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded DF3A-3P-2DSA
Brand: Hirose
SKU: 214729
Price: 0.11 USD
Availability: InStock



Category PCB Connector Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Hirose
Orientation	Straight
Current	3A
Model	DF3A-3P-2DSA
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DF3
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Features a straight orientation suitable for through-hole PCB mounting.
Constructed with a polyamide housing for durability and insulation.
Copper alloy male contacts plated with tin for reliable conductivity.
Supports up to 3 amperes current with a voltage rating of 250 volts.
Operating temperature range from -30°C to 85°C ensures stable performance in various environments.
Connector system appropriate for board-to-board and wire-to-board applications.
Solder termination type facilitates secure and efficient PCB mounting.
Manufactured in Japan, reflecting high-quality standards.

Product Description

Hirose DF3A-3P-2DSA is a high-quality straight through hole PCB header connector from the DF3 series, designed for reliable electronic connections in industrial and commercial applications.

This connector features 3 male contacts arranged in a single row with a 2 mm pitch, ideal for precise PCB assembly tasks requiring secure and stable connections.

The housing made of polyamide offers excellent insulation and mechanical strength, suitable for demanding environments. The contacts are copper alloy with tin plating, ensuring optimal conductivity and resistance to corrosion.

It supports a current rating of 3 amperes and a voltage rating of 250 volts, withstanding operating temperatures from -30°C to 85°C, making it suitable for diverse industrial electronics operating conditions.

This connector is shrouded, which provides protection against accidental contact and enhances connection reliability. It uses a through-hole mount type with solder termination, facilitating robust PCB integration.

Features a straight orientation suitable for through-hole PCB mounting. Constructed with a polyamide housing for durability and insulation. Copper alloy male contacts plated with tin for reliable conductivity. Supports up to 3 amperes current with a voltage rating of 250 volts.

Operating temperature range from -30°C to 85°C ensures stable performance in various environments. Connector system appropriate for board-to-board and wire-to-board applications. Solder termination type facilitates secure and efficient PCB mounting.

Manufactured in Japan, reflecting high-quality standards.

This Hirose DF3 series PCB header is ideal for use in electronic component manufacturing, industrial control systems, and any application requiring precision and durability in electronic connectors.
