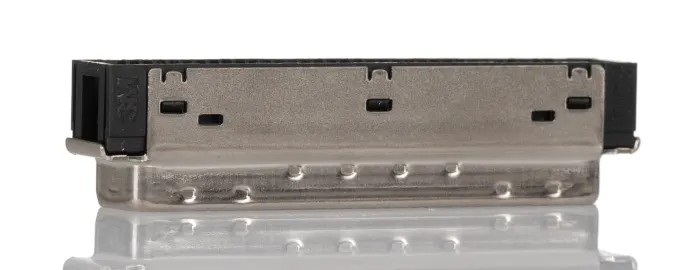

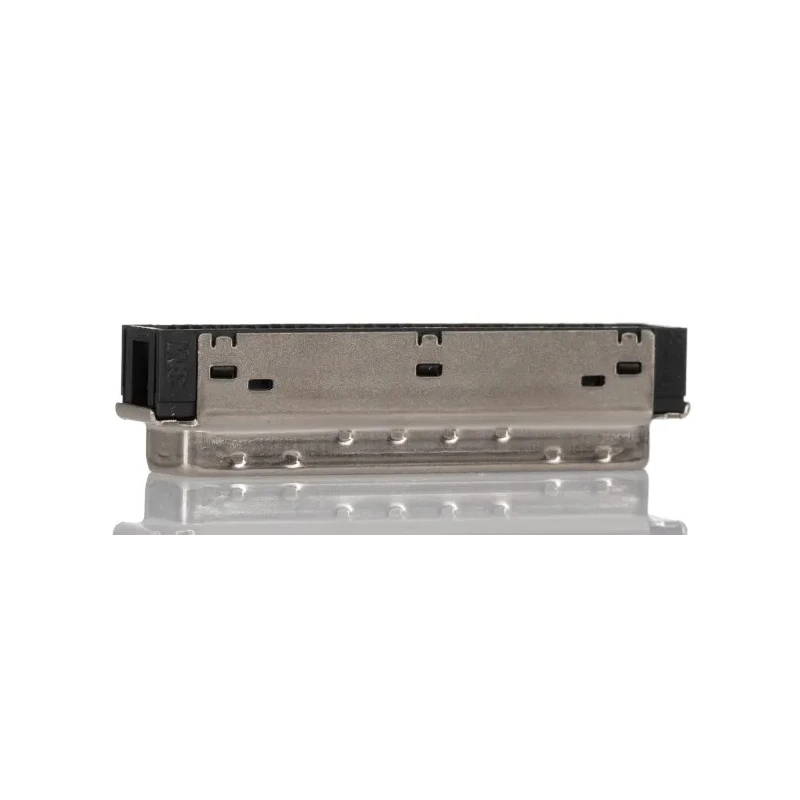

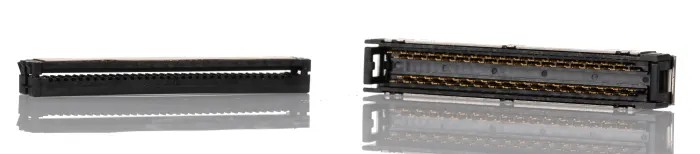

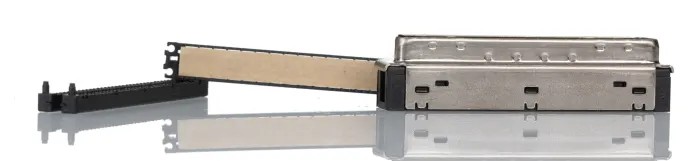

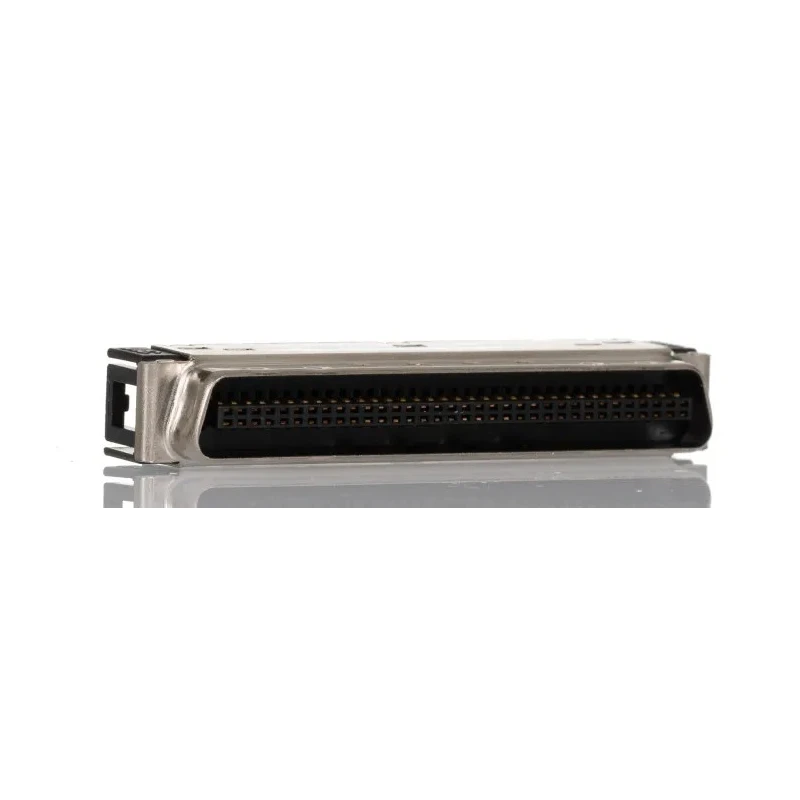

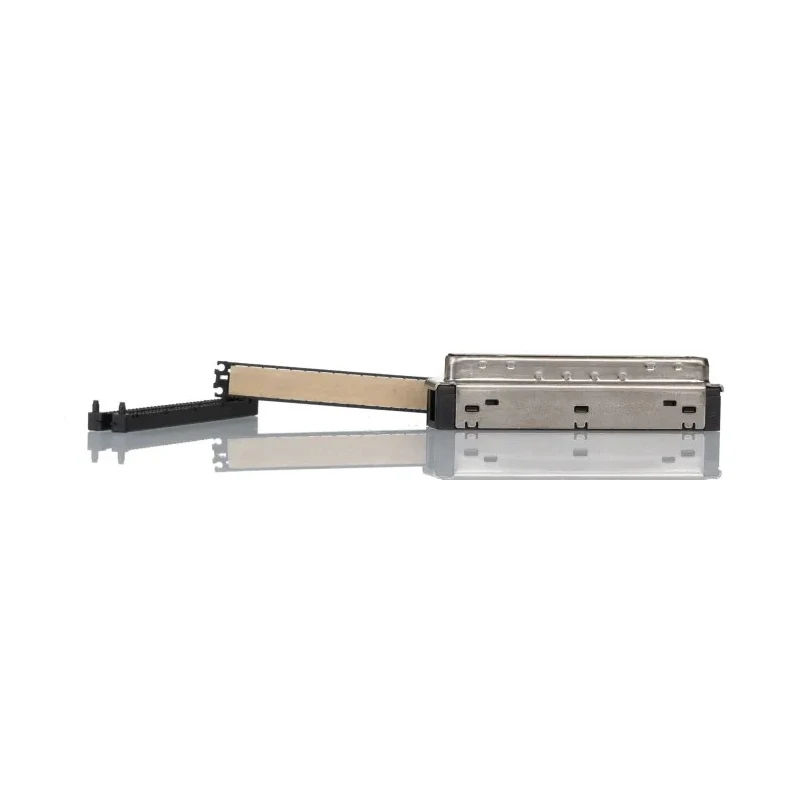

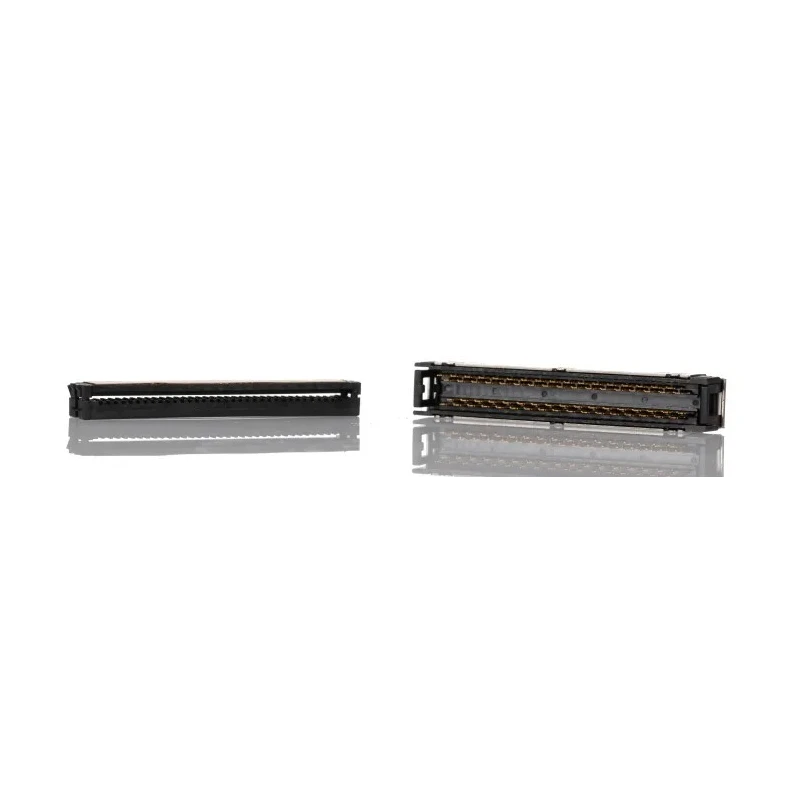

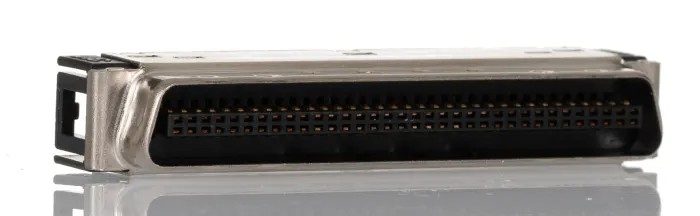

3M PCB Connector 68 Way Male Right Angle Cable 1.27 mm Pitch 1A 150-200V AC 10168-6000EL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 150, 200V ac |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Model | 10168-6000EL |
| Mount Type | Cable |
| Housing Material | Glass Reinforced Polyester |
| Contact Material | Copper Alloy |
| Series | 101 |
| Termination Type | IDT |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 68 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- This PCB connector features 68 contacts ensuring multiple circuit connections.
- The right angle orientation allows space-saving assembly on PCBs.
- Contact material is copper alloy with gold over nickel plating for durability.
- Housing is constructed from glass reinforced polyester providing insulation and mechanical strength.
- Designed to operate within a wide temperature range of -20°C to 85°C.
- Termination type is insulation displacement termination (IDT) for efficient cable connection.
- Complies with RoHS standards ensuring environmental safety.
- Made in Japan ensuring high manufacturing standards.
Product Description
3M 10168-6000EL PCB Connector is a high-quality 68 way male right angle cable connector designed with a 1.27 mm pitch to deliver precise and reliable connections in electronics applications. It supports a current rating of 1A and voltage ratings of 150 to 200V AC, suitable for various industrial and electronic device assemblies.
The connector's contacts are made of copper alloy and plated with gold over nickel to provide excellent conductivity and corrosion resistance. The glass reinforced polyester housing adds mechanical durability and excellent insulation for safe operation. The right angle design optimizes PCB real estate, accommodating compact layouts efficiently.
Designed for use with cables via insulation displacement termination (IDT), this connector facilitates quick and secure cable mounting, enhancing manufacturing productivity. It operates reliably in environmental conditions ranging from -20°C to 85°C, making it suitable for diverse industrial, laboratory, and manufacturing settings.
This product conforms to RoHS environmental safety standards, ensuring compliance with hazardous materials restrictions. Manufactured in Japan, it guarantees high quality and reliability expected in demanding electronic applications.
68 contact points for multi-circuit connections ensuring comprehensive PCB interfacing. Right angle orientation suited for space-optimized PCB designs. Copper alloy contacts with gold over nickel plating for durable and stable electrical performance.
Robust glass reinforced polyester housing for enhanced insulation and mechanical strength. Operating temperature range from -20°C to 85°C to suit various environmental conditions. Voltage rating of 150, 200V ac for versatile electrical applications.
Insulation displacement termination (IDT) ensures efficient cable connections. RoHS compliant supporting eco-friendly manufacturing and usage. Manufactured in Japan adhering to high industrial standards.
This connector is ideal for use in electronics manufacturing, industrial equipment assembly, laboratory instrumentation, and other commercial electronics applications requiring dependable PCB cable connections. Browse the PCB Connector category on EnvMart for more high-quality connectors and accessories from leading manufacturers including 3M.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports voltage ratings of 150 to 200V AC, making it suitable for various electrical applications.
It has a current rating of 1A, which is appropriate for many electronic device assemblies.
The connector features a pitch of 1.27 mm, providing precise and reliable connections.
It utilizes insulation displacement termination (IDT) for efficient and secure cable connections.
The contacts are made of copper alloy with gold over nickel plating, while the housing is constructed from glass reinforced polyester.
It operates reliably within a temperature range of -20°C to 85°C, suitable for various environments.
This model features 68 contacts, allowing for multiple circuit connections.
The connector has a right angle orientation, which helps optimize space on PCBs.
Yes, this connector complies with RoHS standards, ensuring it meets environmental safety requirements.
It is manufactured in Japan, adhering to high industrial standards.
It is designed for use in electronics manufacturing, industrial equipment assembly, and laboratory instrumentation.
The connector features male contacts, which are suitable for various cable connections.
