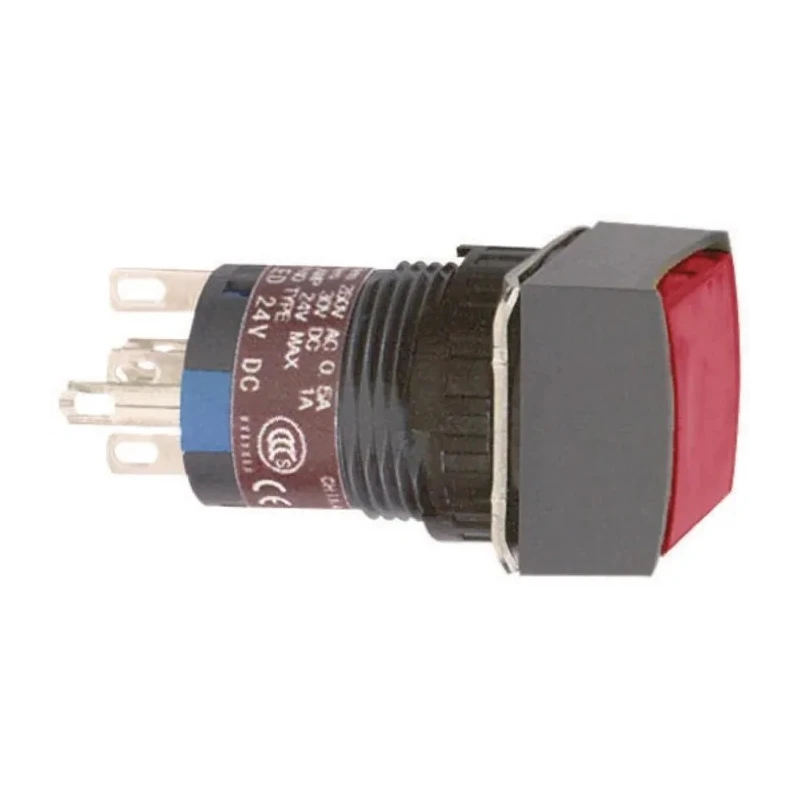

Schneider Electric Harmony XB6 Series Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, SPDT XB6ECF8B1P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 18mm |
| Length | 40mm |
| Model | XB6ECF8B1P |
| IP Rating | IP65 |
| Width | 18mm |
| Mount Type | Panel |
| Series | Harmony XB6 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT (1 CO), DP (2 CO), 2 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect, Solder Tag |
| LED Colour | Orange |
| Switch Operation | Latching |
| Actuator Colour | Orange |
| Contact DC Voltage | 110V |
| Actuator Style | Square |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V ac |
| Legend | Blank |
| Schneider Electric Harmony Series Push Button Switch, 1 NO/1 NCBrand | Schneider Electric |
Key Features
- The push button features a 16 mm panel cutout for easy installation.
- It includes a square actuator style with orange illuminated LED for visual status indication.
- The switch configuration is SPDT, providing single-pole double-throw contact operation.
- Its panel mount design supports quick connect and solder tag terminal types.
- The switch is rated for up to 250V AC and 110V DC contact voltage.
- The operating temperature range spans from -25°C to 55°C ensuring durability in harsh environments.
- IP65 rated protection ensures resistance against dust and water ingress.
- The compact dimensions measure 40 mm length by 18 mm width and height.
Product Description
Schneider Electric XB6ECF8B1P is an illuminated push button switch from the Harmony XB6 series, designed for reliable latching operation in panel mount applications.
Featuring a 16 mm cutout size and a square actuator style, this switch provides clear orange LED illumination for enhanced visual feedback. The SPDT (single-pole double-throw) contact configuration offers versatile switching capabilities suitable for multiple circuit requirements.
Its panel mount design is complemented by quick connect and solder tag terminal types, facilitating straightforward installation and wiring in industrial control panels.
This push button is rated for a contact voltage of up to 250V AC and 110V DC with a contact current rating of 1 amp. It operates reliably over a temperature range from -25°C to 55°C, making it suitable for industrial environments with varying ambient conditions.
The switch offers IP65 ingress protection, ensuring dust-tight and water-resistant performance to maintain switch functionality and safety. Compact with dimensions of 40 mm length and 18 mm width and height, it fits efficiently in control panels without occupying excessive space.
Common applications include electrical control systems, automation panels, HVAC controls, manufacturing equipment, and other industrial machinery requiring dependable tactile switches with illuminated status indication.
The push button features a 16 mm panel cutout for easy installation. Square actuator style with orange LED illumination provides clear feedback. SPDT contact configuration allows switching between circuits. Quick connect and solder tag terminals enable flexible wiring options.
IP65 protection resists dust and water ingress for reliable operation. Rated for 250V AC and 110V DC contact voltage and 1A contact current. Operating temperature range from -25°C to 55°C supports harsh environments. Compact dimensions (40 mm length x 18 mm width x 18 mm height) save panel space.
Explore EnvMart categories for high-quality Push Button Switches and industrial control components by Schneider Electric and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching capabilities suitable for multiple circuit requirements.
The maximum operating temperature for this model is 55°C, making it suitable for use in environments with varying ambient conditions.
This push button switch requires a panel cutout size of 16 mm for proper installation.
It is designed with quick connect and solder tag terminal types, facilitating straightforward installation and wiring.
The switch has an IP65 rating, ensuring it is dust-tight and water-resistant, which helps maintain functionality in challenging environments.
This model is rated for a contact voltage of up to 250V AC and 110V DC, with a contact current rating of 1 amp.
The dimensions of this switch are 40 mm in length and 18 mm in both width and height, allowing for efficient use of panel space.
It features a square actuator style with an orange LED for visual status indication, enhancing user feedback.
The minimum operating temperature for this unit is -25°C, enabling its use in colder environments.
Common applications include electrical control systems, automation panels, HVAC controls, and manufacturing equipment that require tactile switches with illuminated feedback.
This push button switch operates in a latching mode, allowing it to maintain its state until pressed again.
The country of origin for this product is India.
