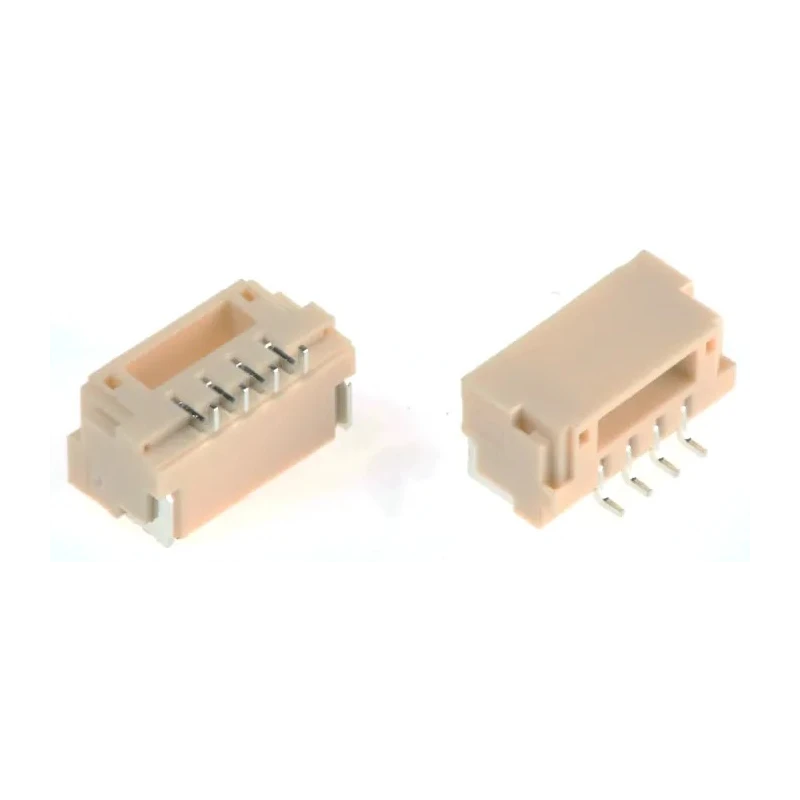

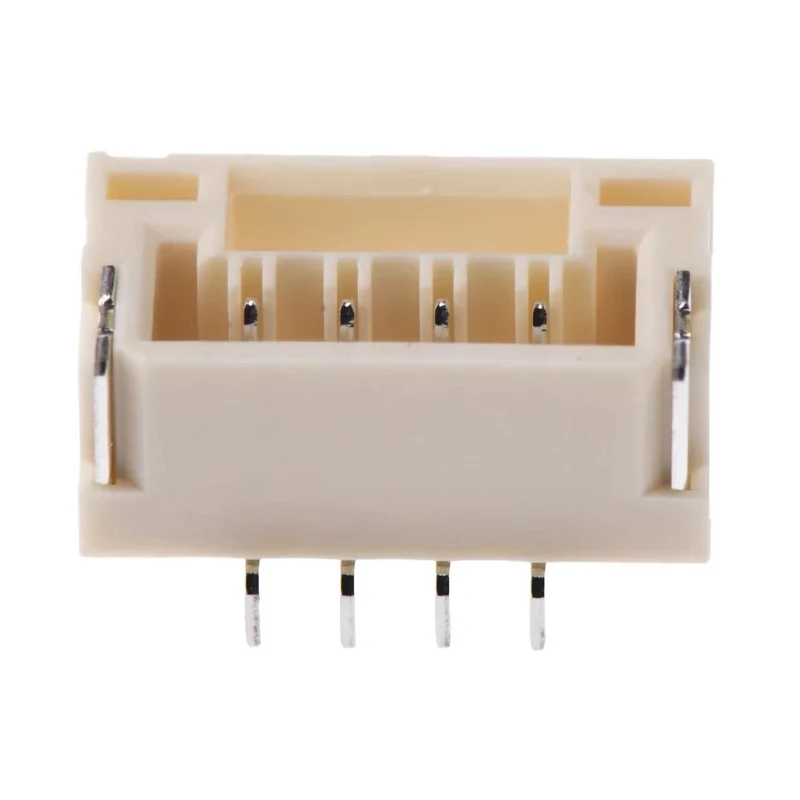

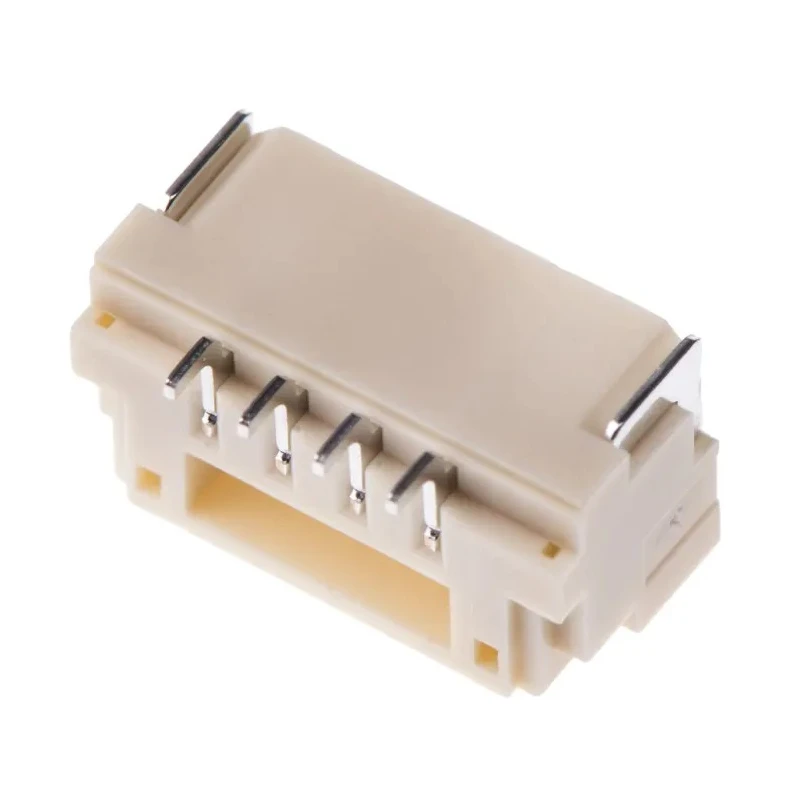

JST GH Series Right Angle Surface PCB Header 4 Contact 1.25 mm Pitch 1 Row Shrouded SM04B-GHS-TB(LF)(SN)

JST SM04B-GHS-TB(LF)(SN) is a shrouded right angle surface mount PCB header from the GH Series, featuring 4 contacts with a 1.25 mm pitch and a single row configuration. It is engineered for reliable wire-to-board connections in compact electronics, including PDP and LCD devices.

The connector housing is made of durable polyamide, providing mechanical strength and stability in demanding environments. The contacts are fork-shaped phosphor bronze plated with tin, supported by housing grooves to reduce deformation risks during installation and operation. This design ensures consistent electrical performance and mechanical retention.

With a current rating of 1 Ampere and operating voltage of up to 50 Volts, this PCB header is well-suited for a range of electronic applications requiring moderate power transmission. The surface mount right angle orientation facilitates side entry wire connections, optimizing PCB space usage.

The operating temperature range from -25°C to 85°C allows for usage in various industrial, commercial, and consumer electronics environments without degradation of performance. Termination is accomplished by soldering, ensuring secure and robust mounting on printed circuit boards.

Manufactured in Japan, this product adheres to strict quality and manufacturing standards to deliver consistent performance and reliability. It is ideal for industrial electronics assembly, laboratory equipment, consumer devices, and other electronic manufacturing applications requiring high precision connectors.

Low insertion force design suitable for compact equipment. Durable polyamide housing for mechanical strength. Phosphor bronze tin-plated fork-shaped contacts for reliable connections. Surface mount, right angle side entry facilitates PCB integration.

Rated 1A current and 50V voltage for general electronic use. Operating temperature range from -25°C to 85°C. Solder termination for secure PCB mounting. Manufactured in Japan ensuring quality and durability. Explore the EnvMart range for compatible PCB headers and connectors suited for electronic manufacturing and industrial applications.
