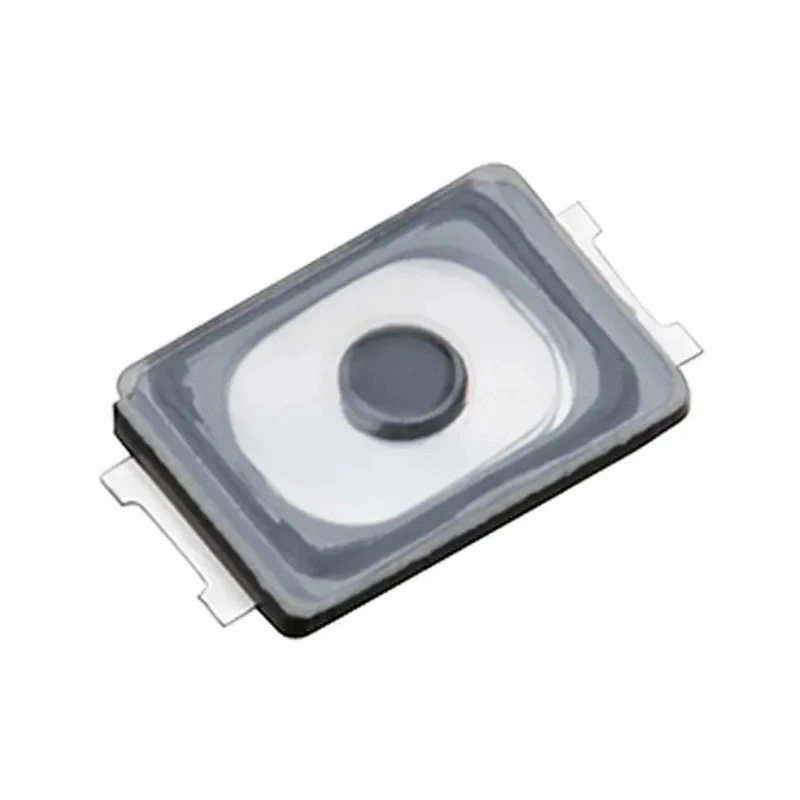

Panasonic Black Surface Mount IP67 Tactile Switch Push Plate SPST 20mA 15V dc

Panasonic EVPAWBD4A is a black tactile switch with IP67 rating, designed for surface mounting on electronic devices. It features a SPST (single pole single throw) contact configuration and supports a contact current of 20mA at 15 V dc. The momentary push plate actuator provides a sharp, satisfying click for precise user input.

This switch is small and compact, measuring 3mm in length and 2mm in width, with an actuator height of 600μm, suitable for applications requiring miniature controls.

The device operates reliably in extreme temperature ranges from -40°C to 85°C, ideal for industrial, automation, and electronic equipment exposed to varied environments. Its mechanical life of 500,000 operations guarantees long-term durability.

Construction includes solder terminal type for easy PCB mounting and a straight actuator orientation. The small tactile switch is not illuminated but designed to offer low contact resistance and reduced noise for accurate switching.

Compliant with RoHS standards, the switch supports environmentally responsible manufacturing and use.

Common uses include electronic devices, control panels, instrumentation, and automation systems where compact, reliable momentary switches are required. The IP67 sealing ensures protection against dust and water ingress, suitable for harsh operating conditions.

The switch features a momentary operation with a sharp, clear click feel. It offers IP67 protection for dust and water resistance. Dimensions are compact at 3mm length and 2mm width. Operating temperature range is -40°C to 85°C for reliability in various environments.

The actuator style is a straight push plate for easy manual activation. Designed with solder terminals for surface mounting on PCBs. Mechanical life rated at 500,000 operations ensuring durability. Operating force is 1.6N providing tactile feedback.

RoHS compliant ensuring environmental safety.
