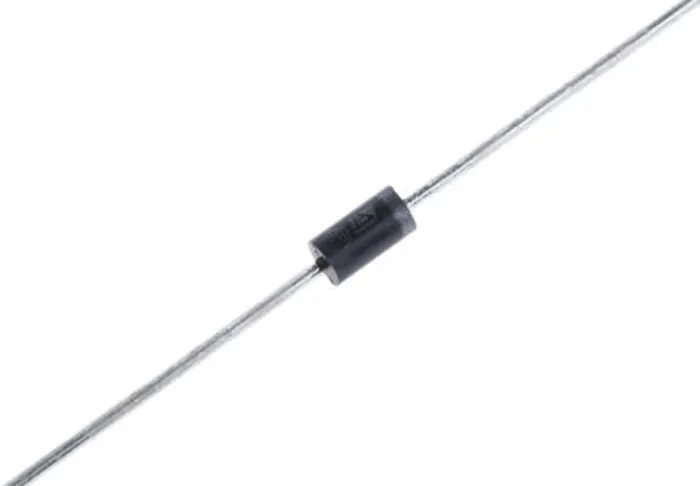

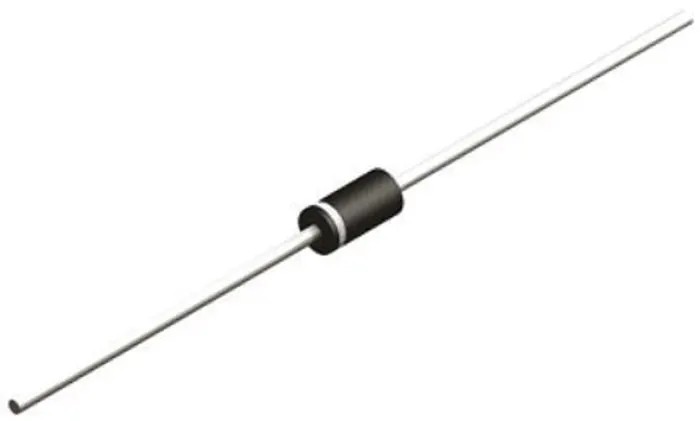

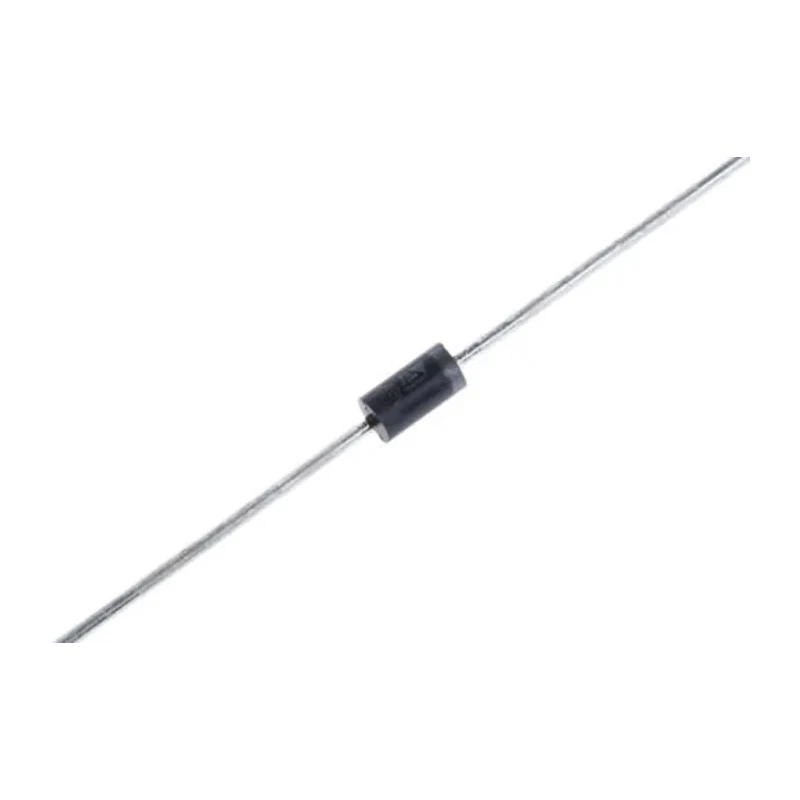

STMicroelectronics 150 V 1 A Schottky Diode DO-41 Through Hole STPS1150RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.71mm |
| Brand | STMicroelectronics |
| Height | 5.2mm |
| Length | 4.6mm |
| Model | STPS1150RL |
| Width | 2.9mm |
| Mount Type | Through Hole |
| Series | STPS1150 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Compact DO-41 package for through-hole mounting offers convenient PCB integration.
- Maximum continuous forward current of 1 A ensures reliable operation under standard loads.
- Peak reverse repetitive voltage rated at 150 V to handle demanding reverse voltage conditions.
- Low maximum forward voltage of 0.62 V improves efficiency and reduces heat dissipation.
- High peak non-repetitive forward surge current of 75 A enables tolerance to transient surges.
- Wide operating temperature range from -65°C to 175°C suits industrial environments.
- Single diode configuration with two pins simplifies circuit design and layout.
Product Description
STMicroelectronics STPS1150RL Schottky Diode in DO-41 package is designed for efficient rectification purposes in diverse industrial, electronic, and semiconductor applications. It offers a compact, through-hole package type facilitating easy PCB mounting and replacement.
With a maximum continuous forward current rating of 1 A and a peak reverse repetitive voltage of 150 V, this diode supports robust electrical performance in power management circuits. The low forward voltage drop of 0.62 V contributes to reduced energy loss, making it suitable for high-efficiency rectification tasks.
The diode can endure peak non-repetitive forward surge currents up to 75 A, providing resilience against short-term electrical spikes, while operating in a wide temperature range from -65°C to 175°C, accommodating industrial thermal conditions.
Its physical dimensions include a length of 4.6 mm, height of 5.2 mm, diameter of 2.71 mm, and width of 2.9 mm, ensuring compatibility with standard PCB footprints. The single diode configuration with two pins simplifies circuit integration.
Compact DO-41 package for through-hole mounting offers convenient PCB integration. Maximum continuous forward current of 1 A ensures reliable operation under standard loads. Peak reverse repetitive voltage rated at 150 V to handle demanding reverse voltage conditions.
Low maximum forward voltage of 0.62 V improves efficiency and reduces heat dissipation. High peak non-repetitive forward surge current of 75 A enables tolerance to transient surges. Wide operating temperature range from -65°C to 175°C suits industrial environments.
Single diode configuration with two pins simplifies circuit design and layout. Precise dimensional profile: Length 4.6 mm, Height 5.2 mm, Diameter 2.71 mm, Width 2.9 mm. This Schottky diode is ideal for electronics manufacturing, power supply rectification, and industrial automation applications requiring efficient, durable diode solutions.
Explore more semiconductor components like Schottky Diodes and rectifiers at EnvMart for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STPS1150RL Schottky diode is 1 A.
This diode has a peak reverse repetitive voltage rating of 150 V, allowing it to handle demanding reverse voltage conditions.
The physical dimensions of this diode are: length 4.6 mm, height 5.2 mm, diameter 2.71 mm, and width 2.9 mm.
The maximum forward voltage drop for the STPS1150RL is 0.62 V, which helps improve efficiency and reduce heat dissipation.
The diode can withstand a peak non-repetitive forward surge current of up to 75 A, providing resilience against short-term electrical spikes.
The operating temperature range for the STPS1150RL is from -65°C to 175°C, making it suitable for industrial environments.
This model uses a through-hole mounting type, which facilitates easy PCB integration.
The STPS1150RL features a single diode configuration with two pins, simplifying circuit design and layout.
The STPS1150RL is a Schottky rectifier, which is known for its efficiency in rectification applications.
The peak reverse current for this diode is 1 mA, ensuring it operates effectively under specified conditions.
The country of origin for this diode is India.
This diode is part of the STPS1150 series, which includes various Schottky diodes designed for efficient rectification.
