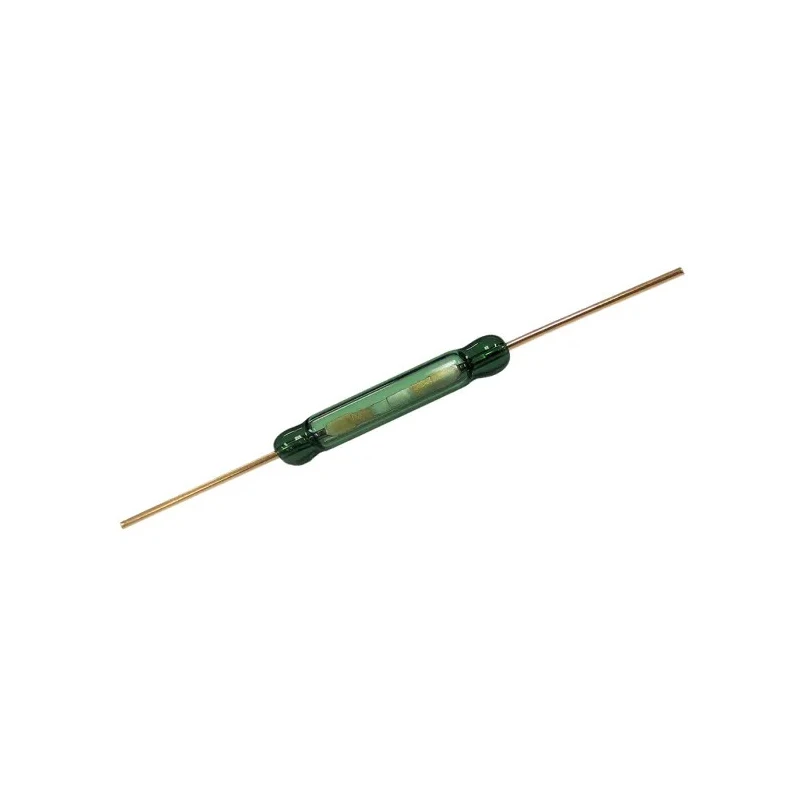

Assemtech Single Pole Normally Open PCB Reed Switch 3 A 400 V ac/dc Rhodium Contact GC3817 (30-40AT)

Free Delivery in India | Lowest Global Shipping Charges

Assemtech Single Pole Normally Open PCB Reed Switch 3 A 400 V ac/dc Rhodium Contact GC3817 (30-40AT)

Name: Assemtech Single Pole Normally Open PCB Reed Switch 3 A 400 V ac/dc Rhodium Contact GC3817 (30-40AT)
Brand: Assemtech
SKU: 272491
Price: 487.22 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	India
Brand	Assemtech
Length	24.5mm
Model	GC3817 (30-40AT)
Width	3.8mm
Mount Type	PCB
Contact Material	Rhodium
Series	GC
Maximum Switching Current	3A
Maximum Operating Temperature	125°C
Contact Configuration	SPNO
Minimum Operating Temperature	-40°C
Terminal type	Wire
Contact Resistance	100mΩ
Maximum Switching Power	60W
Standards/Approvals	ISO
Maximum Switching Voltage	400V ac/dc
Maximum Release Time	0.1ms
Operating Time Including Bounce	0.5ms
AT Value Range	30 to 40 AT

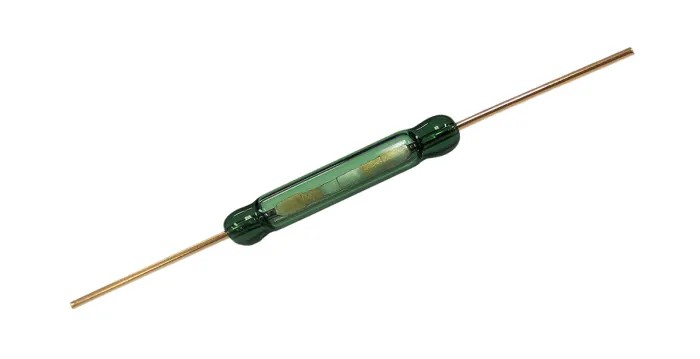

Assemtech SPNO Reed Switch 3 A 1000 V ac/dcBrand	Assemtech

Key Features

Constructed with rhodium-plated contacts for superior conductivity and durability.
Hermetically sealed in a gas-filled glass envelope to ensure longevity and performance.
Operating temperature range from -40°C to 125°C for versatile applications.
Fast switching with a maximum release time of 0.1 ms and operating time including bounce of 0.5 ms.
Compact size with 24.5 mm length and 3.8 mm width ideal for PCB mounting.
Mechanical lifetime rated at 10^8 operations for extended usage.
Suitable for use with electromagnetic actuation or permanent magnets alongside coils.
Compliant with ISO standards and manufactured in India.

Product Description

Assemtech GC3817 (30-40AT) is a Single Pole Normally Open (SPNO) PCB-mounted Reed Switch designed to switch loads up to 3 A and voltages up to 400 V ac/dc. It features rhodium-plated contacts hermetically sealed within a gas-filled glass envelope that protects against environmental contaminants and ensures consistent performance.

This reed switch operates effectively over a temperature range from -40°C to 125°C, making it suitable for harsh industrial and automation environments. The switch offers fast response times, with a release time of 0.1 ms and an overall operating time including bounce of 0.5 ms, assuring precision switching in electronics and control systems.

Measuring 24.5 mm in length and 3.8 mm in width, this component is optimally sized for printed circuit board (PCB) installation and can be actuated by electromagnetic or permanent magnets. The mechanical life rating of 10^8 operations guarantees long-term reliability for industrial, laboratory, and automation applications.

Constructed with durable rhodium contacts, it delivers low contact resistance (100 mΩ) and low switching power loss (60 W max), supporting stable and efficient electrical control. This product complies with ISO standards reflecting quality assurance and is manufactured in India.

Rhodium-plated contacts provide excellent conductivity and resistance to corrosion. Sealed glass envelope hermetically protects the switch internals against moisture and contaminants. Fast electromagnetic actuation with low switching noise and bounce.

Broad operating temperature range suitable for diverse industrial environments. Compact form factor facilitates easy integration into PCB-based electronic assemblies. Designed for extended mechanical life with consistent switching performance.

Complies with relevant ISO standards ensuring product quality and reliability.

This single pole normally open PCB Reed Switch from Assemtech is ideal for applications in industrial automation, electronics manufacturing, control systems, sensors, and instrumentation. It supports reliable switching in devices requiring magnetic actuation with high endurance and precision.
